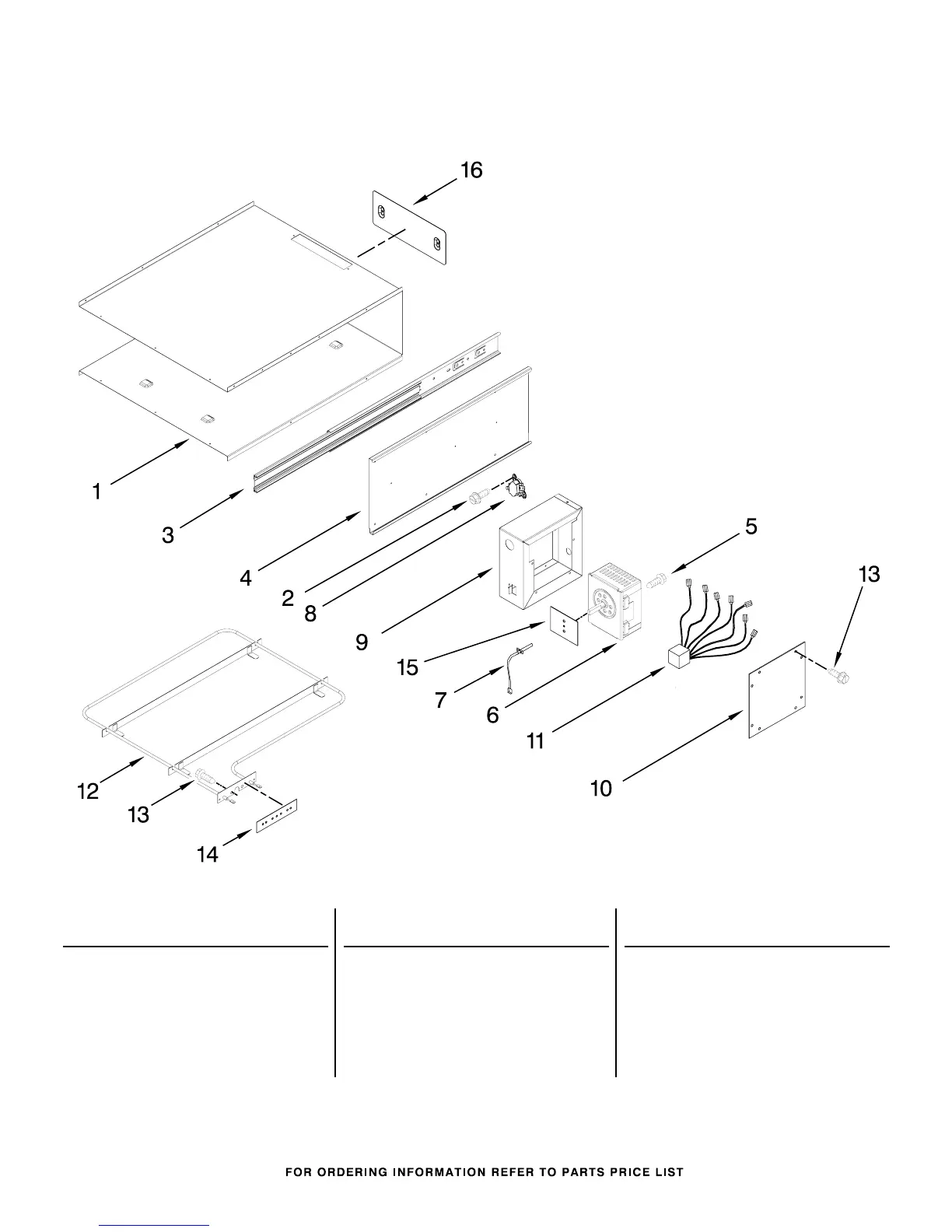

INTERNAL WARMING DRAWER PARTS
7
For Models: KFRU488TSS00
(Stainless Steel)
W10146425
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
1 W10137884 Wrapper
2 313806 Screw
3
W10137691 Slide Assembly
4 Panel
W10137883 Right
W10137882 Left
5 311865 Screw
6
W10137873 Control
7
W10137881 Sensor, Wrm.Drwr.
8
W10137879 Thermal Fuse
9
W10137872 Enclosure,
Electric
10
W10137871 Cover, Enclosure
11
W10137880 Harness, Wiree
12
W10137877 Element, Heating
13 3196537 Screw
14
W10118049 Seal, Heating
Element
15
W10118113 Seal, Switch
16
W10118073 Heat Shield
