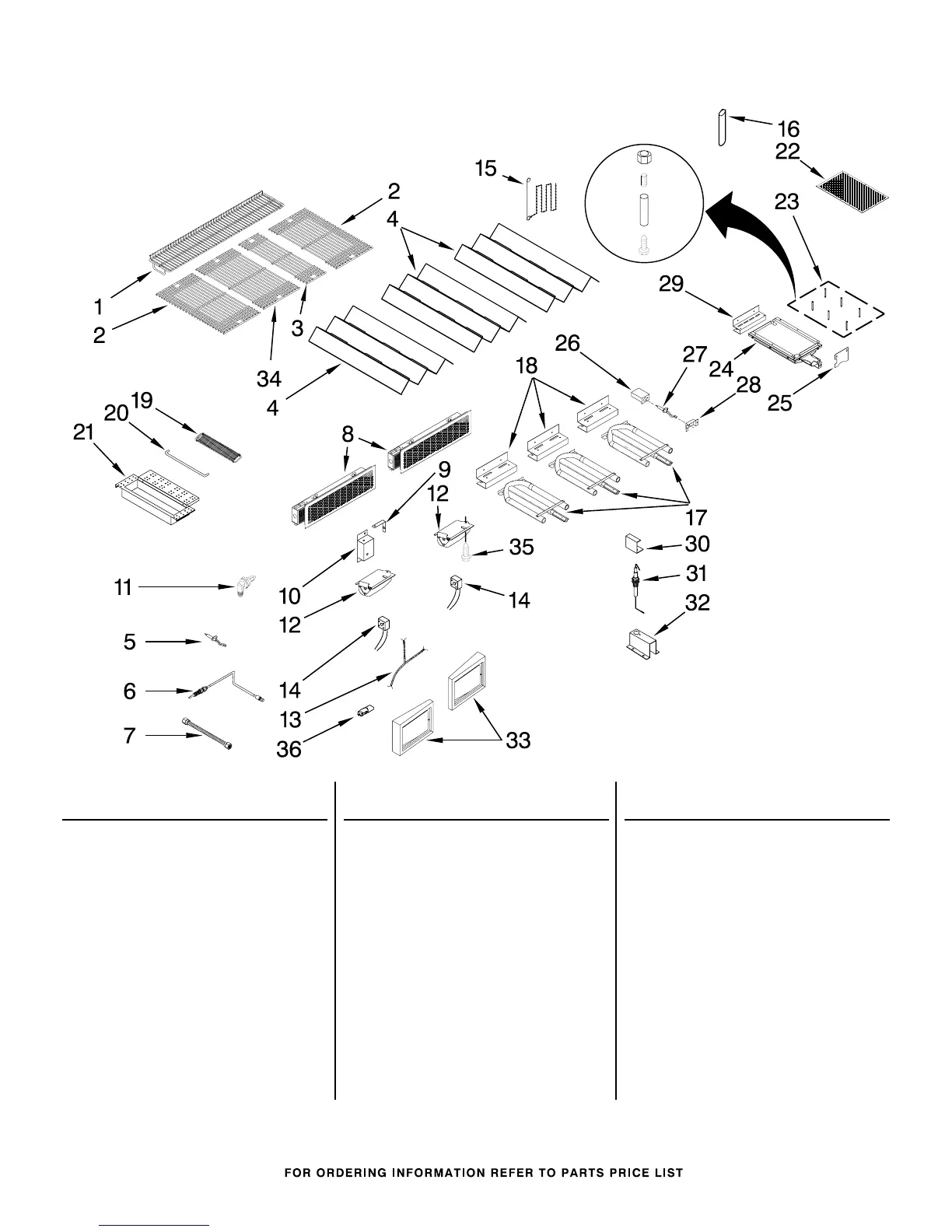

BURNERS, GRATES, AND LIGHTS PARTS
8
For Models: KFRU488TSS00
(Stainless Steel)
W10146425
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
1 W10140223 Rack, Warming
2
W10133860 Rack, Large
3
W10133862 Rack, Small
4
W10128618 Plate, Sear
5
W10134804 Electrode Kit,
Rotisserie
6
W10128622 Thermocouple,
Rear Burner
7
W10140211 Flex Tube,
Rear Burner
8
W10140227 Burner, Rear
9
W10134805 Bracket, Rear
Thermocouple
10 Cover, Rear
Thermocouple
W10134806 Left
W10140250 Right
11
W10128627 Orifice, Rear
Burner
12
W10140242 Light, Grill
13
W10140244 Harness, Wire
Lights
14
W10128631 Socket, Light
15
W10128704 Rod, Lighting
16
W10128703 Bag, Lighting Rod
17
W10128775 Burner, Main
18
W10128776 Bracket,Main Brnr
19
W10134790 Grate, Smoke Box
20
W10134791 Handle, Smoke Box
21
W10140261 Box, Smoke
22
W10134793 Screen, Sear Brnr
23
W10137683 Rod, Kit
24
W10140225 Burner, Sear
25
W10134796 Panel, Sear Brnr
26
W10134826 Igniter, Gas Coll.
27
W10134797 Igniter, Sear Brnr
28
W10134798 Bracket, Sear Ign.
29
W10134799 Bracket, Sear Brnr
30
W10134800 Igniter, Gas Coll.
31
W10140230 Igniter,Hot Surfce
32
W10134802 Bracket, Main Brnr
33
W10140258 Light Set
34
W10140222 Rack, Middle
35
W10140217 Screw, 5/32 x 20
36 8204670 Bulb, Light
