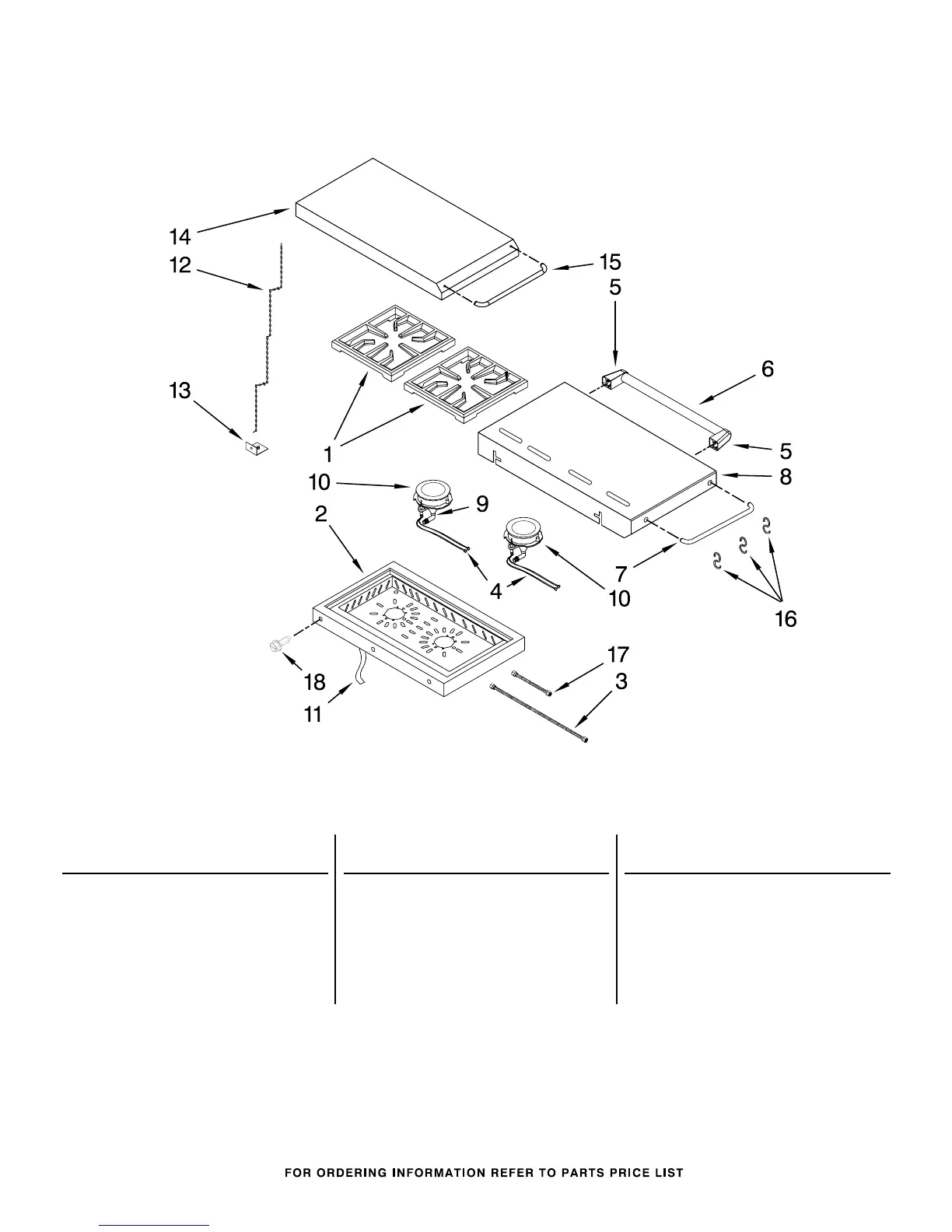

SIDE BURNER PARTS
9
For Models: KFRU488TSS00
(Stainless Steel)
W10146425
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
1 W10138024 Grate, Side Burner
2
W10140271 Shelf, Side Burner
3
W10137910 Tube, Side Burner
4 Igniter
W10137918 Burner, Rear
W10136947 Burner, Front
5
W10137052 Bracket, Handle
6
W10138660 Handle, Shelf
7
W10136956 Bar, Tool
8
W10137923 Shelf, Side (Left)
9
W10137922 Elbow, Orifice
10
W10137076 Manifold, Side Brn
11
W10137915 Hose, Side Burner
12
W10138027 Chain, Lid
13
W10138028 Stator, Chain
14
W10138026 Lid, Side Burner
15
W10138025 Bar, Tool
16
W10128774 Hook
17
W10137916 Tube, Side Brnr
18
W10140220 Screw, 5/32 x 10
