KitchenAid KHMP5 86510 - Hood and Cabinetry Clearances (MM); Injectors Table

6
If a hood is to be installed above the hob, refer to the hood installation instructions to ensure the correct
height above the hob

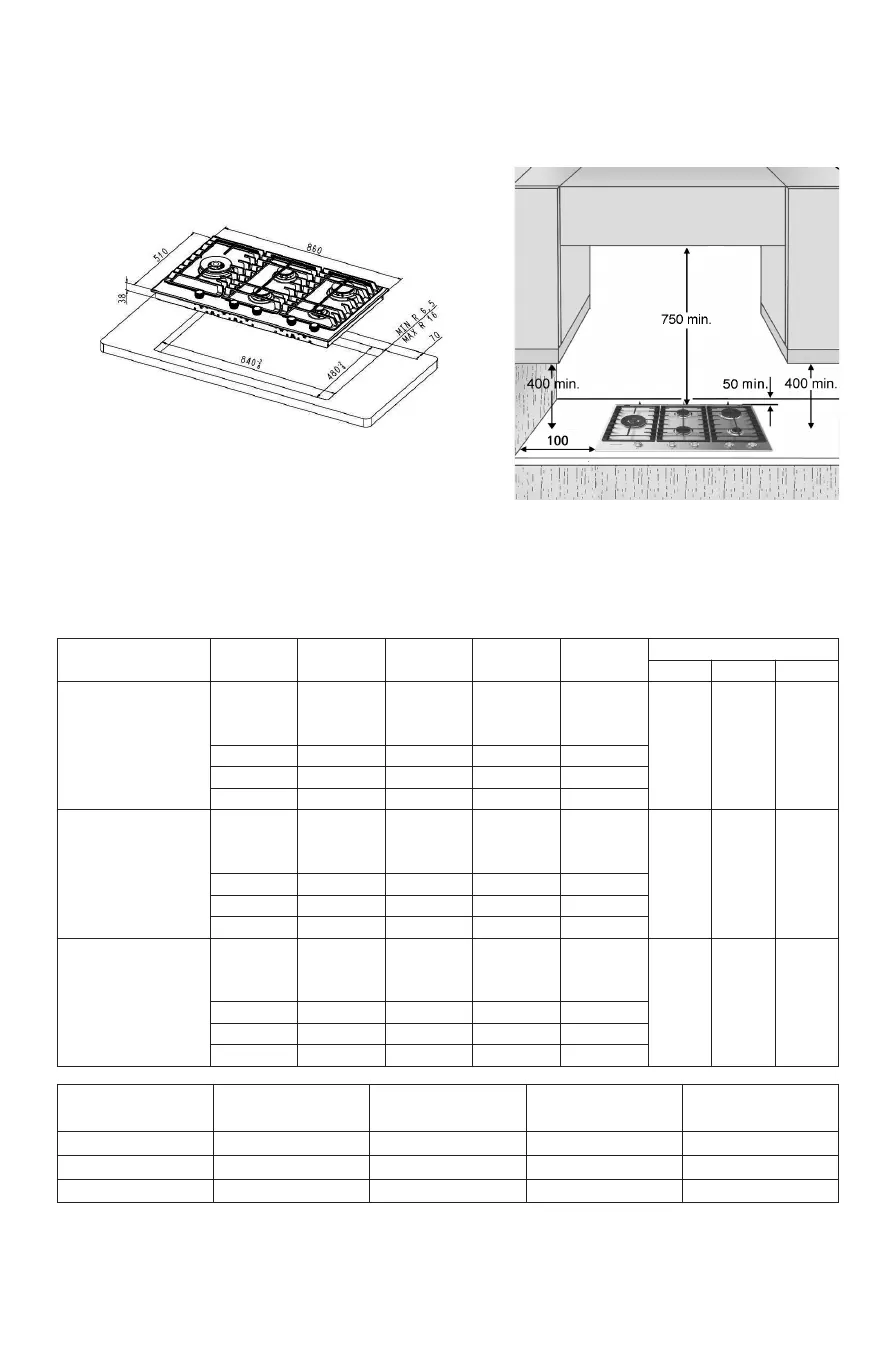

Hood and cabinetry clearances (mm)
Category II2H3+
Refer to the injector table of your Country
Electric supply:220-240 V ~ 50/60 Hz 0,6W
Injectors table
Type of gas used
Ty p e o f
burner
Injector
marketing
Nominal heat
flow kW
Rated
consumption
Reduced heat
capacity kW
Gas pressure mbar
min. rat. max.
NATURAL GAS
(Methane) G20
2 ring
(outer + inner)
Inner
165H1+70H1
70H1
5,80
0,90
552 l/h
86 l/h
2,20
0,30
17 20 25
rapid 125A 3,00 286 l/h 0,60
semi-rapid 97A 1,75 167 l/h 0,35
auxiliary 78C 1,00 95 l/h 0,30
LIQUEFIED GAS
(Butane) G30
2 ring
(outer + inner)
Inner
102+44
44
5,25
0,90
382 g/h
65 g/h
2,20
0,30
20 28-30 35
rapid 85A 3,00 218 g/h 0,60
semi-rapid 66A 1,75 127 g/h 0,35
auxiliary 50A 1,00 73 g/h 0,30
LIQUEFIED GAS
(Propane) G31
2 ring
(outer + inner)
Inner
102+44
44
5,25
0,90
375 g/h
64 g/h
2,20
0,30
25 37 45
rapid 85A 3,00 214 g/h 0,60
semi-rapid 66A 1,75 125 g/h 0,35
auxiliary 50A 1,00 71 g/h 0,30
Type of gas used
Model configuration
5 burners 2C 5,8kW
Rated thermal flow rate kW Total rated consumption
Air required (m
3
) for burning
1 m
3
of gas
G20 20 mbar 2C-1R-2SR -1AUX 13,3 1267 l/h 9,52
G30 28-30 mbar 2C-1R-2SR -1AUX 12,75 927 g/h 30,94
G31 37 mbar 2C-1R-2SR -1AUX 12,75 910 g/h 23,8
