KITCHENAID
Stand Mixer Service Manual LIT4177310-C 2005 KitchenAid
D. To remove the speed control link and cam
assembly, take out the pivot screw and tension
washer (Fig. 24).
Before removing the speed control link and cam
assembly, remove the control board spring from the
link.
The flat spring is removed as you remove the speed
control link assembly.
The speed control link and cam assembly can be
removed by pulling it out of the gearcase-motor
housing (Fig. 25).
E. Unscrew and remove the two #10-24 nuts
(Fig. 26).
Remove the bearing bracket (Fig. 27).
Now remove the motor stud sleeve from the stator
stud (Fig. 28).

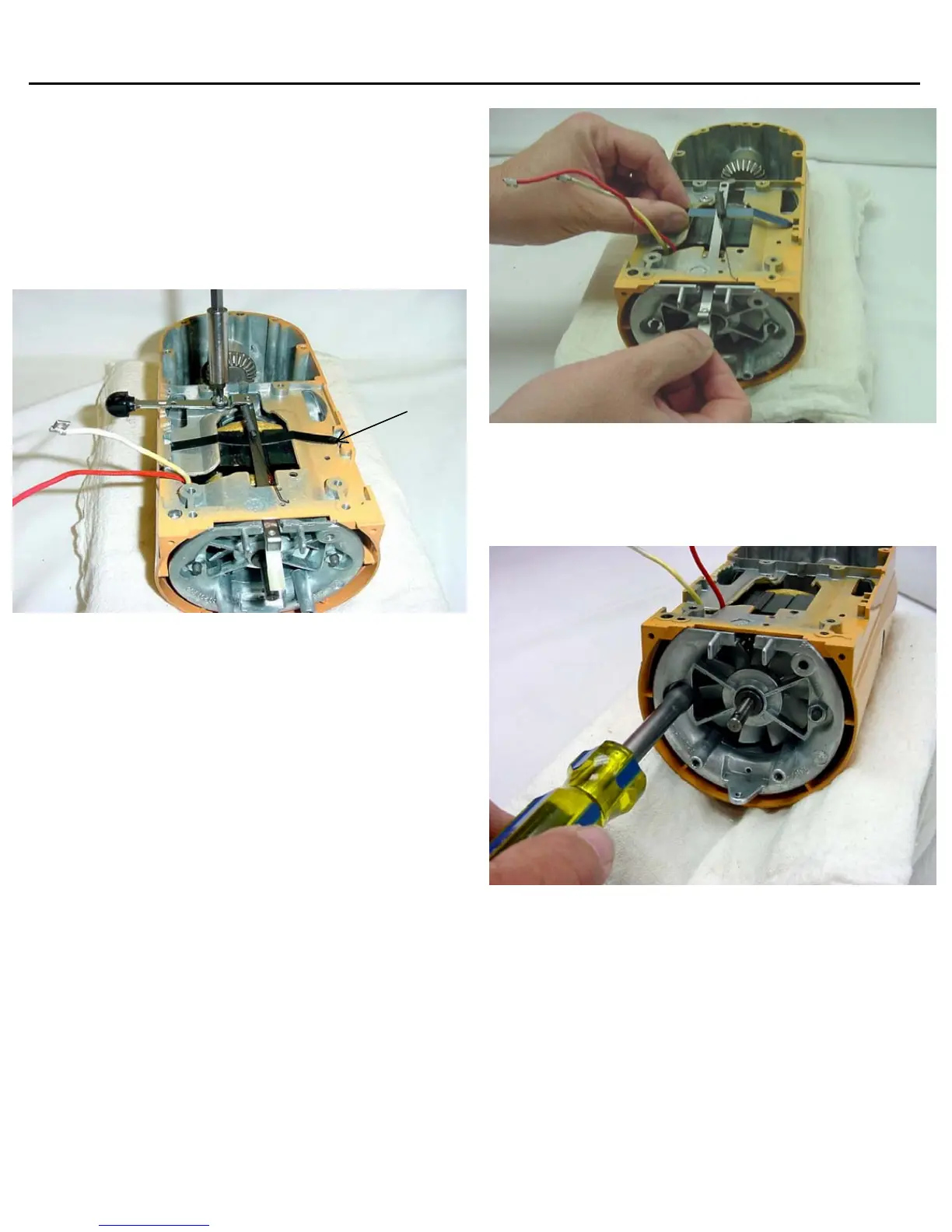

Fig. 24 The pivot screw and tension washer are removed
with a phillips screwdriver.
Fig. 25 Removing the speed control spring, flat spring and
the speed control link assembly.
Page 8
Fig. 26 Two 10-24 nuts are removed from the
bearing bracket.
Flat Spring
