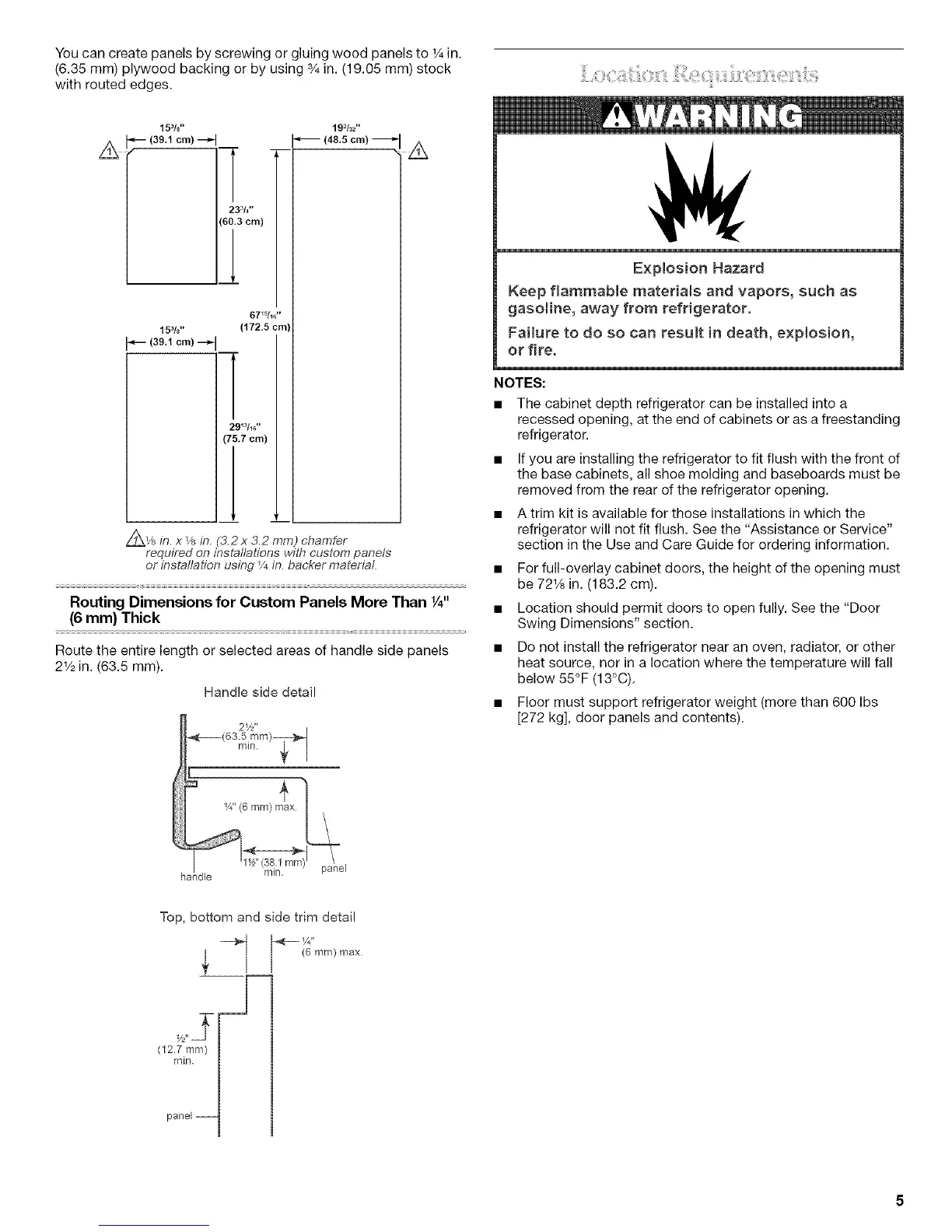

You can create panels by screwing or gluing wood panels to 1/4in.
(6.35 mm) plywood backing or by using 3/4in. (19.05 mm) stock
with routed edges.
153/8''
/_ _ (39.1 cm)--_1
233/4''
(60.3 cm)
193/32''
_'_ (48.5 cm) -_
[--
67_/W '
153/8,, (172.5 cm)
(39.1 cm)
29W_"
(75.7 crn)
/_I/R in. x l/8 in. (3.2x 3.2 mr,q) chamfer
required on installations with custompane/s
or instaflation using 1/4in. backer material
Routing Dimensions for Custom Panels More Than 1/4H
(6 mm) Thick
Route the entire length or selected areas of handle side panels
21/2in. (63.5 mm).
Handle side detail
Explosion Hazard
Keep flammable materials and vapors, such as
gasoline, away from refrigerator.
Failure to do so can result in death, explosion,
or fire.
NOTES:
• The cabinet depth refrigerator can be installed into a
recessed opening, at the end of cabinets or as a freestanding
refrigerator.
• If you are installing the refrigerator to fit flush with the front of
the base cabinets, all shoe molding and baseboards must be
removed from the rear of the refrigerator opening.
• A trim kit is available for those installations in which the
refrigerator will not fit flush. See the "Assistance or Service"
section in the Use and Care Guide for ordering information.
• For full-overlay cabinet doors, the height of the opening must
be 721/8in. (183.2 cm).
• Location should permit doors to open fully. See the "Door
Swing Dimensions" section.
• Do not install the refrigerator near an oven, radiator, or other
heat source, nor in a location where the temperature will fall
below 55°F (13°C).
• Floor must support refrigerator weight (more than 600 Ibs
[272 kg], door panels and contents).
ha_d_e mln.
Top, bottom and side trim detail
_. (6 mm) max
W'J
(127 ram)
min
panel --
