KitchenAid KSCS25FSBL02 - Air Flow Parts

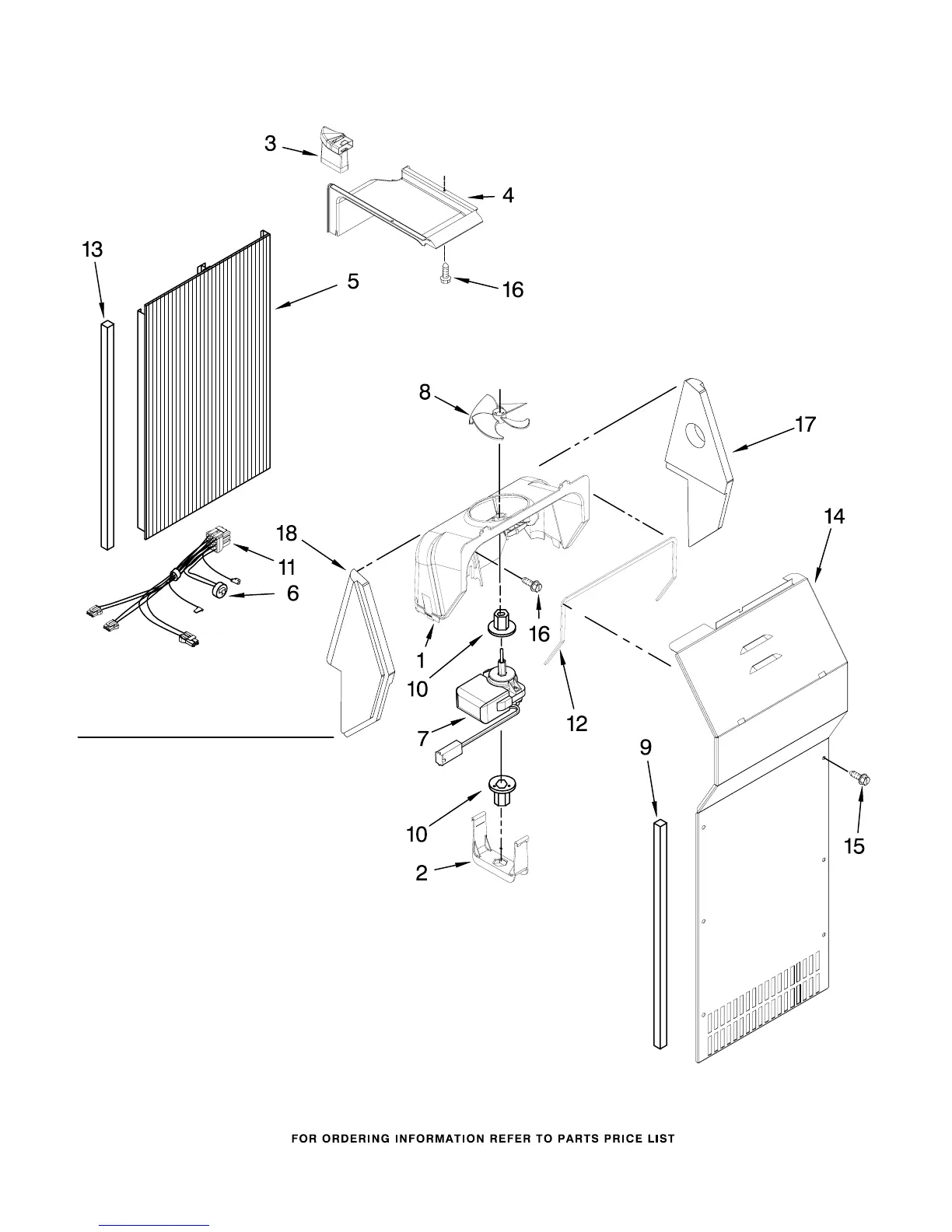

AIR FLOW PARTS
15
For Models: KSCS25FSWH02, KSCS25FSBT02, KSCS25FSBL02, KSCS25FSSS02, KSCS25FSMS02
(White) (Biscuit) (Black) (Stainless Steel) (Monochromatic Stainless)
W10140776
Illus. Part
No. No. DESCRIPTION
1 2182120 Fan Scroll
2 2223733 Retainer,
Fan Motor
3 2223298 Air Scoop
4 2223303 Air Duct, Upper
5 2223297 Air Duct Freezer
6 2319914 Bi−Metal, Defrost
7 2259385 Fan Motor
8 2169142 Fan Blade
9 2304241 Gasket, Evaporator
Cover (2)
10 2223986 Fan Grommet (2)
11 2310236 Harness, Fan
Evaporator
(Includes #6)
12 2155789 Gasket, Fan Scroll
13 2203876 Gasket
14 2223413 Cover, Evaporator
(Includes #9)
15 8281159 Screw
16 489478 Screw
17 2223395 Support, R.S
18 2203596 Support, L.S
