KitchenAid KSOX 9020 - Change the Main Grill Burner Valves Injectors

15

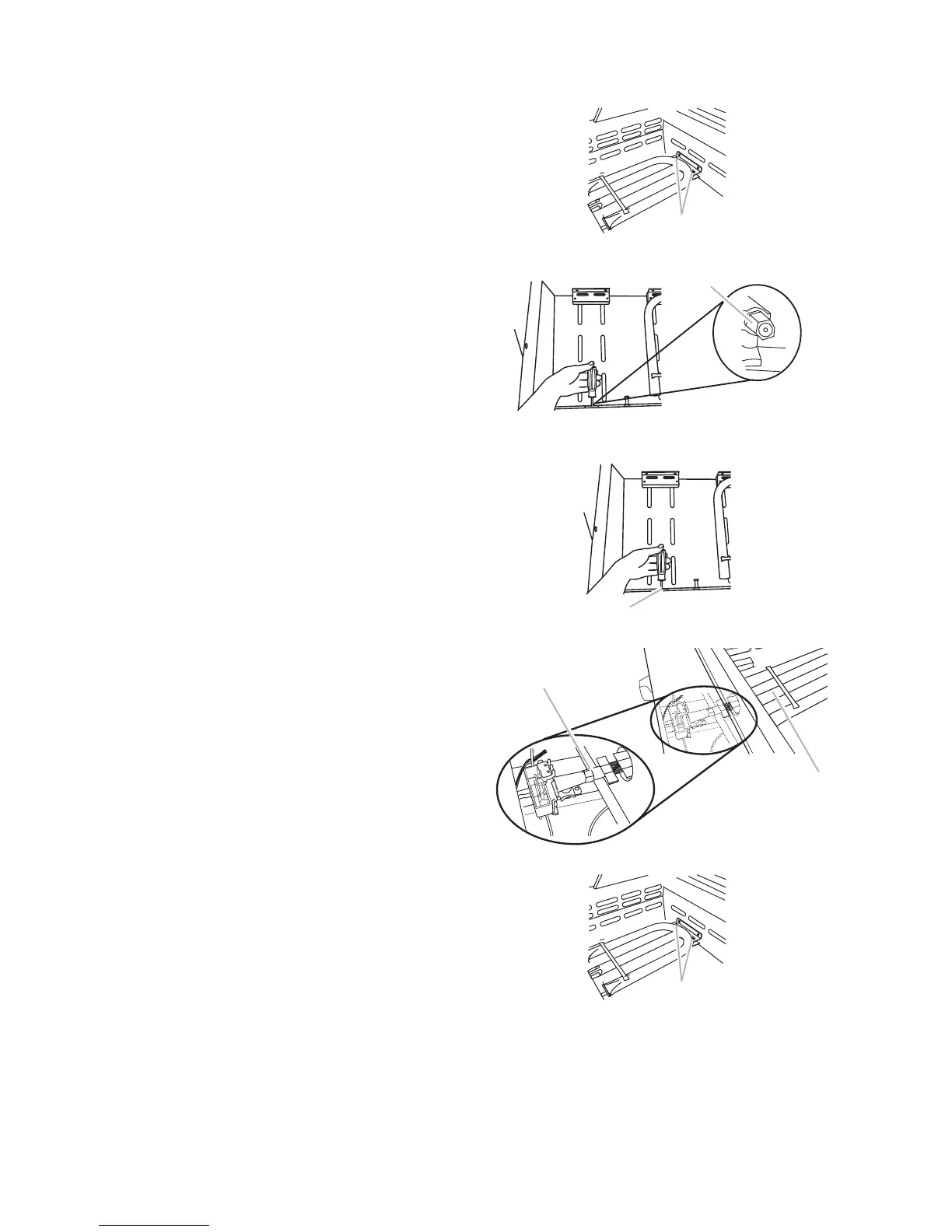

1. Manually remove all of the grates, sear plate, and
main burners.
2. Remove the 2 screws that hold the burner in place.
Remove gas burner from the grill.
A Two screws
3. Use 6 mm socket and wrench or 6 mm nut driver
to remove the brass injectors from the end of the
gas valves.
A Grill burner injector
4. Install new injectors supplied with this kit to the
end of the gas valve. Use 6 mm socket and wrench
or 6 mm nut driver to tighten.
A Grill burner injector
NOTE: The number is stamped on the injector for
identification.
5. Replace burner by sliding the middle tube
(venturing) over the injector.
A Burner/orifice connection
B Burner
6. Reattach gas burner using 2 screws.
A Two screws
7. Repeat the procedure for each grill burner.
A
A
A
A
B
A
Change the main grill burner valves injectors
