KitchenAid KSSC36QMS02 - Top Grille and Unit Cover Parts

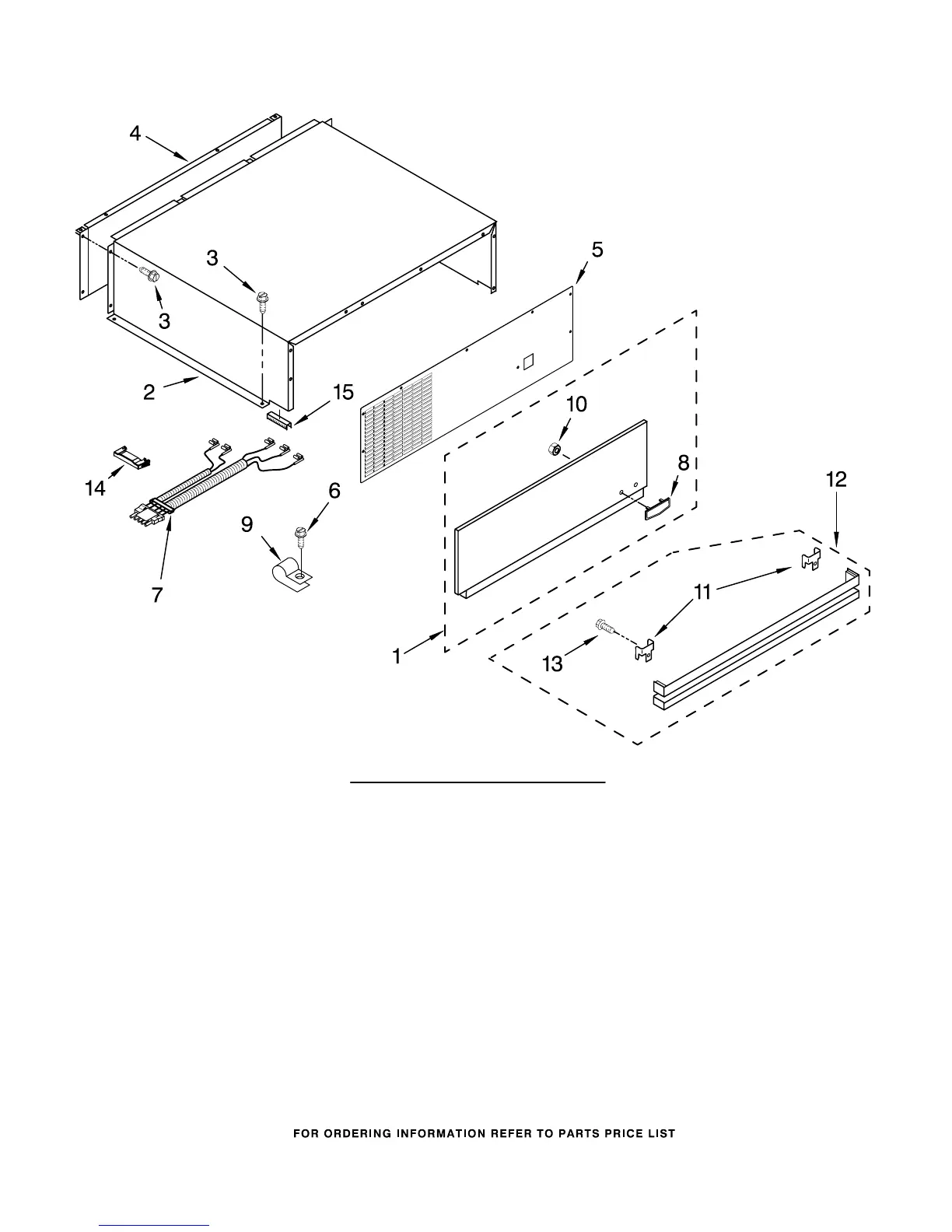

TOP GRILLE AND UNIT COVER PARTS
8
For Model: KSSC36QMS02
(Stainless Steel)
8214657
Illus. Part
No. No. DESCRIPTION
1 Panel, Decorative
Assembly
2257410S Stainless Steel
2 2259320 Cover, Unit
3 486194 Screw
4 2256466 Back Panel
5 2302974 Cover, Unit Front
6 487415 Screw
7 2187429 Wire Assembly
RC/FC Light Switch
8 2005292 Badge, Kitchen Aid
9 489348 Clamp
10 2004333 Nut
11 2254759 Bracket, Louver
12 Louver, Grille
2254760S Stainless Steel
13 488879 Screw
14 2221297 Enclosure,
Connector
15 2215910 Grommet
