KitchenAid KSSC36QMS02 - Control Panel Parts

7

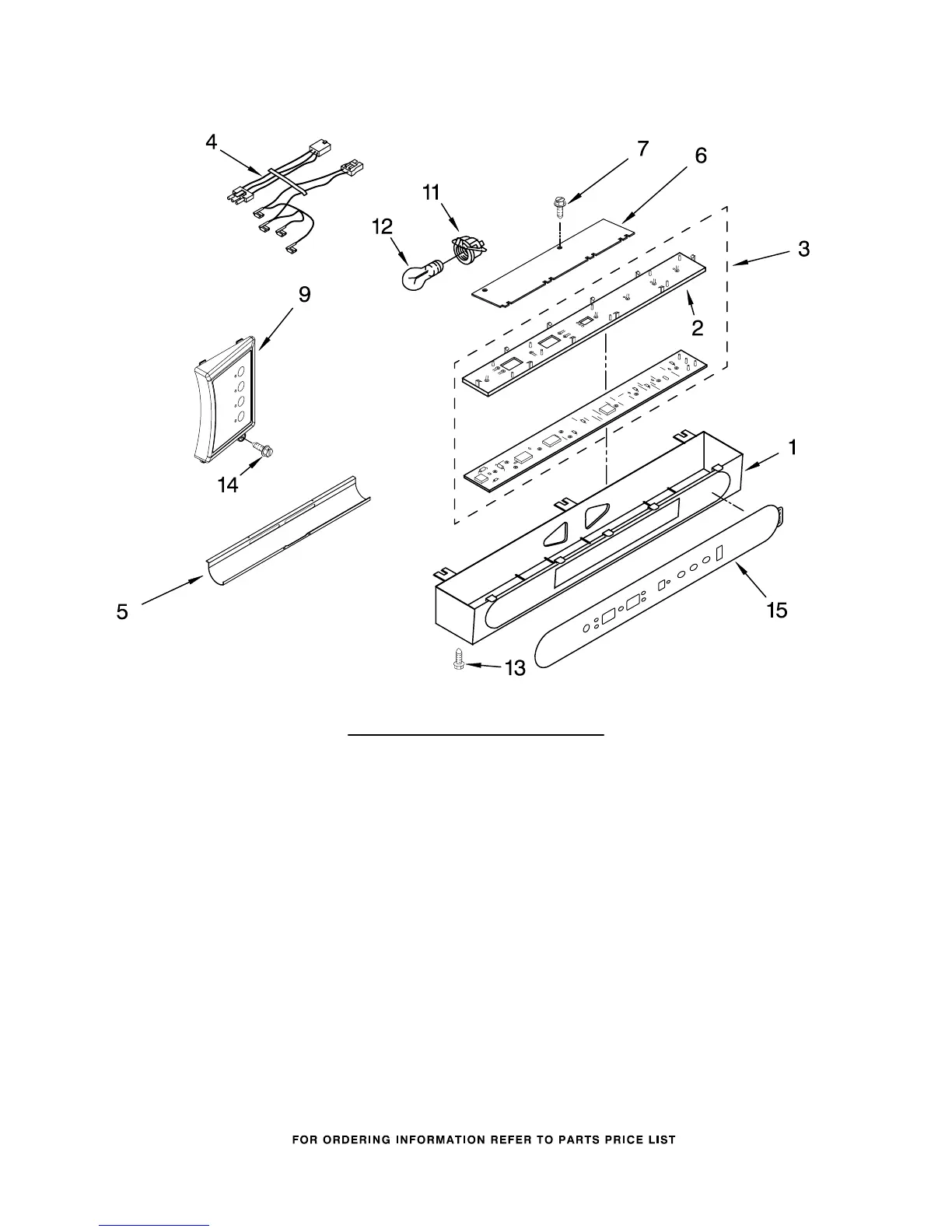

CONTROL PANEL PARTS
For Model: KSSC36QMS02
(Stainless Steel)
8214657
Illus. Part
No. No. DESCRIPTION
1 2302771 Control Box
2 2303938 Insert, Control
Box
3 2302913 Circuit Board,
Housing Control
4 2187424 Control Box
Wire Harness
5 2302727 Shield, Light
6 2221121 Support, Control
Box
7 489006 Screw (2)
9 2306086 Display Board,
Ingredient
Care Center
11 2162085 Socket, Light
12 2255743 Light Bulb
13 486194 Screw
14 8281185 Screw
15 2257518 Overlay
