8

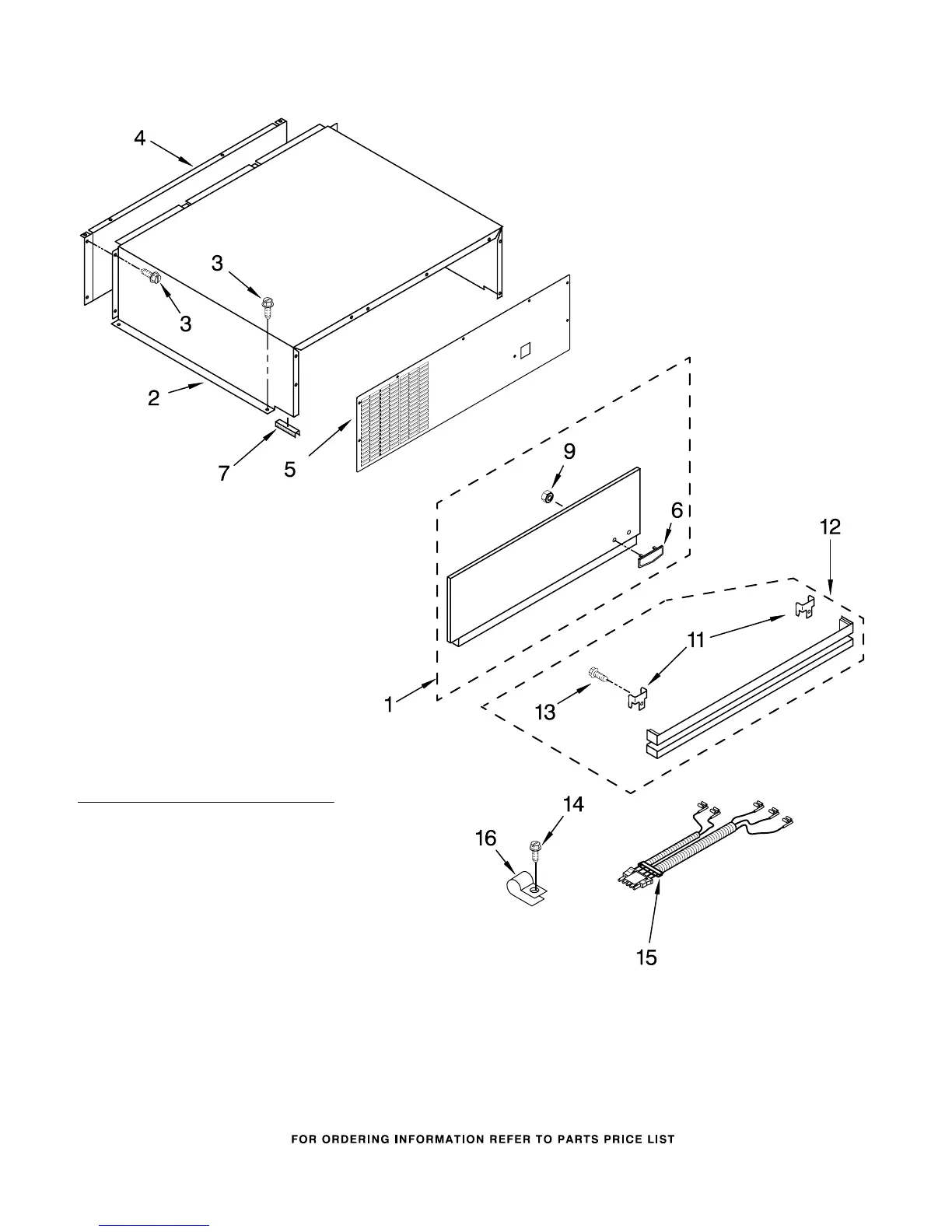

TOP GRILLE AND UNIT COVER PARTS
For Model: KSSC42FMS01
(Stainless Steel)
8199053
Illus. Part
No. No. DESCRIPTION
1 Panel, Decorator
2257411S Stainless steel
2 2259320 Cover, Unit
3 487415 Screw
4 2256466 Back Panel
5 2302974 Cover−Unit, Front
6 2005292 Nameplate
7 2215910 Grommet
9 2004333 Nut
11 2254759 Bracket, Louver
12 Grille, Louver
2254761S Stainless steel
13 488879 Screw
14 487415 Screw
15 2187429 Wire Assembly,
RC/FC Light Switch
16 489348 Clamp
