KitchenAid KSSC42QMS01 - Control Panel Parts; Control Box Assembly

7

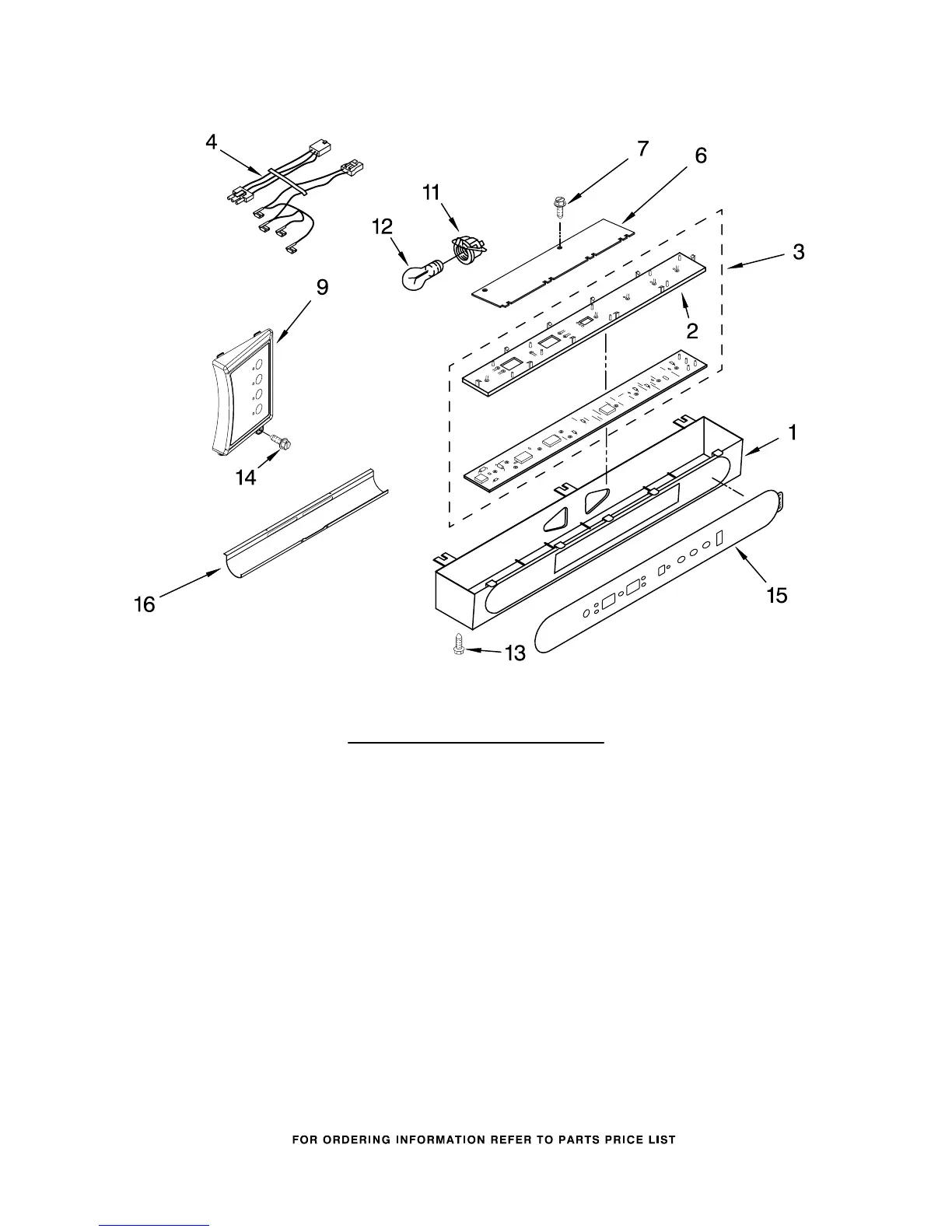

CONTROL PANEL PARTS
For Models: KSSC42QMS01, KSSC42QMU01
(Stainless Steel) (Cobalt Blue)
8199054
Illus. Part
No. No. DESCRIPTION
1 2302772 Control Box
2 2215670 Insert, Control
Box
3 2266951 Circuit Board,
Housing Control
4 2187424 Control Box
Wire Harness
6 2221121 Support, Control
Box
7 489006 Screw (2)
9 2306086 Display,
Ingredient Care
Center
11 2162085 Socket, Light
12 2255743 Light Bulb (2)
13 486194 Screw
14 8281185 Screw
15 2257519 Overlay
16 2302717 Shield, Light
