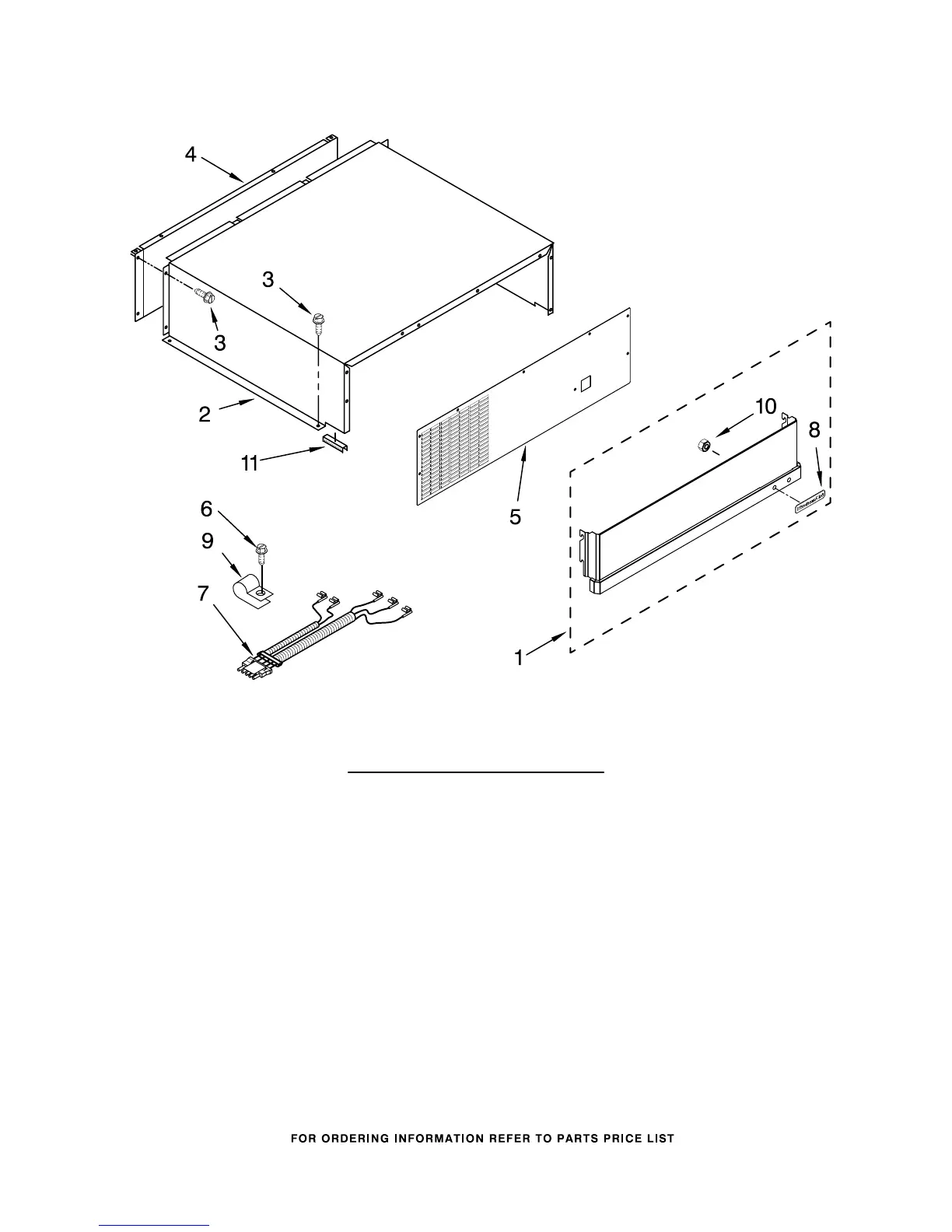

TOP GRILLE AND UNIT COVER PARTS
8
For Model: KSSC42QTS02
(Stainless Steel)
W10175519
Illus. Part
No. No. DESCRIPTION
1 Panel, Decorative
Assembly
2316737S Stainless Steel
2
W10161693 Cover, Unit
3 486194 Screw
4 2256466 Back Panel
5
W10121229 Cover, Unit Front
6 487415 Screw
7 2310194 Wire Assembly
RC/FC Light Switch
8 2317923S Badge, Kitchen Aid
9 489348 Clamp
10 2004333 Nut
11 2215910 Grommet−Flexible
