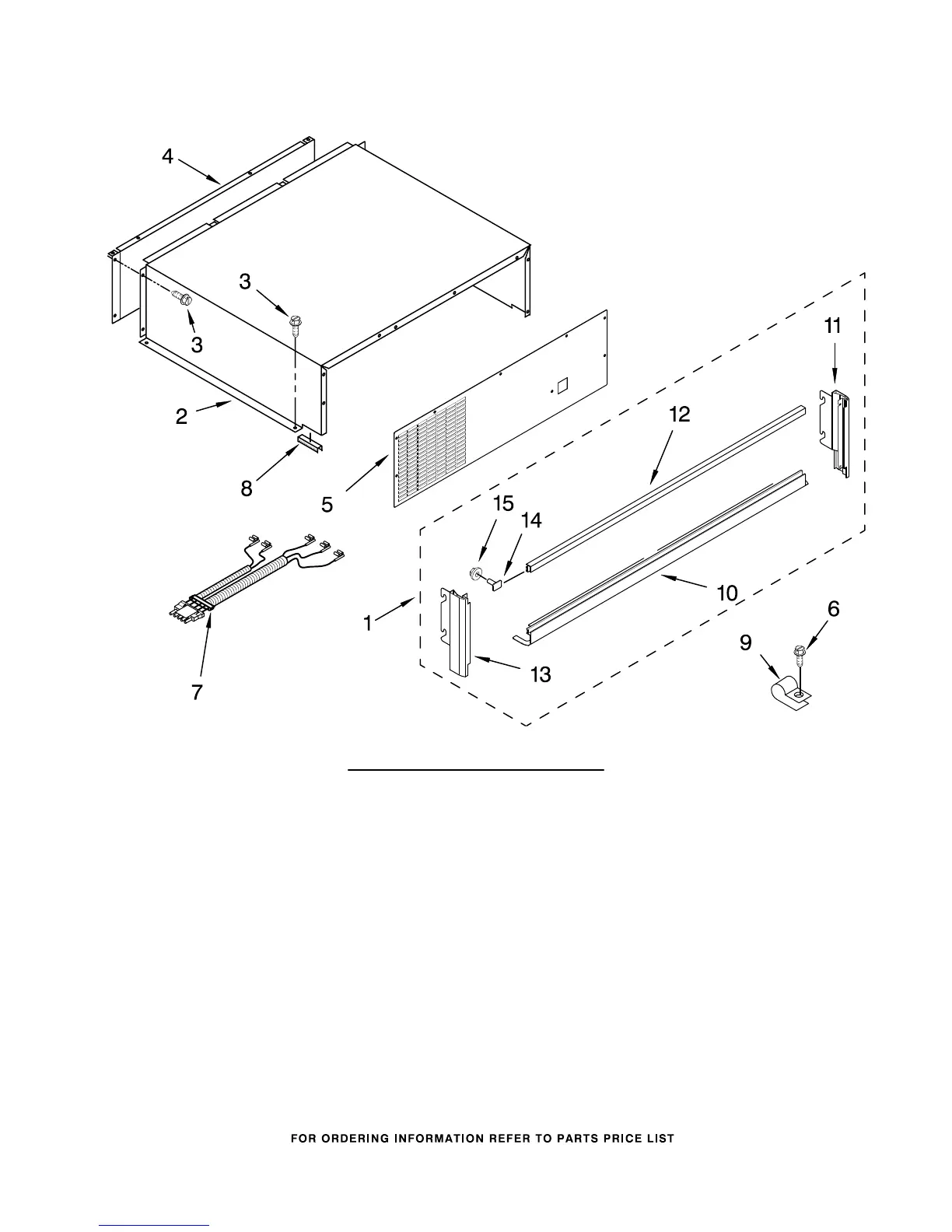

TOP GRILLE AND UNIT COVER PARTS
8
For Model: KSSO48FMX01
(Etched Aluminum)
8199086
Illus. Part
No. No. DESCRIPTION
1 Top Grille
Assembly
2259424X Etched Aluminum
2 2259320 Cover, Unit
3 486194 Screw
4 2256466 Back Panel
5 2302974 Cover, Unit Front
6 487415 Screw
7 2187429 Wire Assembly
RC/FC Light Switch
8 2215910 Grommet, Flexible
9 489348 Clamp
10 2259436X Trim−Grille,
Bottom
11 2259420X Trim−Grille,
Right Side
12 2259442X Trim−Grille, Top
13 2259421X Trim−Grille,
Left Side
14 2003347 Screw
15 1161548 Nut
