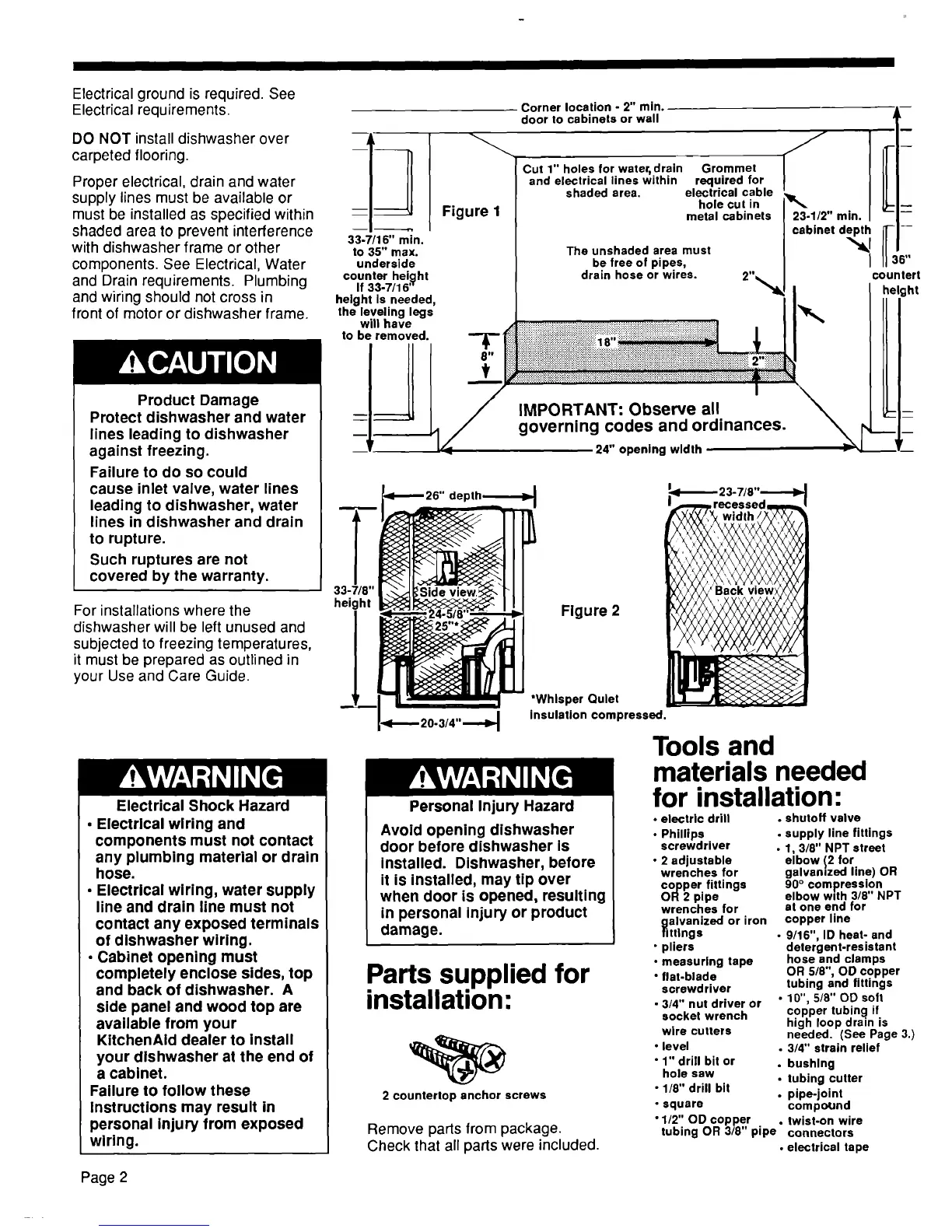

Electricalgroundisrequired.See
Electricalrequirements.
DONOTinstalldishwasherover
carpetedflooring.
Properelectrical,drainandwater
supplylinesmustbeavailableor
mustbeinstalledasspecifiedwithin
shadedareatopreventinterference
withdishwasherframeorother
components.SeeElectrical,Water
andDrainrequirements.Plumbing
andwiringshouldnotcrossin
frontofmotorordishwasherframe.
Product Damage
Protect dishwasher and water
lines leading to dishwasher
against freezing.
Failure to do so could
cause inlet valve, water lines
leading to dishwasher, water
lines in dishwasher and drain
to rupture.
Such ruptures are not
covered by the warranty.
For installations where the
dishwasher will be left unused and
subjected to freezing temperatures,
it must be prepared as outlined in
your Use and Care Guide.
Electrical Shock Hazard
• Electrical wiring and
components must not contact
any plumbing material or drain
hose.
• Electrical wiring, water supply
line and drain line must not
contact any exposed terminals
of dishwasher wiring.
• Cabinet opening must
completely enclose sides, top
and back of dishwasher. A
side panel and wood top are
available from your
KitchenAId dealer to install
your dishwasher at the end of
a cabinet.
Failure to follow these
Instructions may result in
personal injury from exposed
wiring.
Page 2
33-7/16" min.
to 35" max.
underside
counter height
If 33-7/16"
height is needed,
the leveling legs
will have
to be removed.
Figure 1
Corner location - 2" min.
door to cabinets or wall
Cut 1" holes for water, drain Grommet
and electrical lines within required for
shaded area. electrical cable
hole cut in
metal cabinets 23-1/2" min.
The unshaded area must
be free of pipes,
drain hose or wires.
IMPORTANT: Observe all
governing codes and ordinances•
24" opening width
cabinet depth_.rl_-36_
counlert
height
m m
i
. ,
33 7/8'
height
Figure 2
*Whisper Quiet
insulation compressed.
Personal Injury Hazard
Avoid opening dishwasher
door before dishwasher is
installed. Dishwasher, before
it is installed, may tip over
when door is opened, resulting
in personal injury or product
damage.
Parts supplied for
installation:
2 countertop anchor screws
Remove parts from package.
Check that all parts were included.
Tools and
materials needed
for installation:
• electric drill
• Phillips
screwdriver
• 2 adjustable
wrenches for
copper fittings
OR2 pipe
wrenches for
alvanized or iron
ttings
• pliers
• measuring tape
• flat-blade
screwdriver
• 3/4" nut driver or
socket wrench
wire cutters
• level
• 1" drill bit or
hole saw
• 1/8" drill bit
• square
• 1/2" OD copper
tubing OR 3/8" pipe
• shutoff valve
• supply line fittings
• 1, 3/8" NPT street
elbow 12 for
galvamzed line) OR
90 ° compression
elbow with 3/8" NPT
at one end for
copper line
• 9/16", ID heat- and
detergent.resistant
hose and clamps
OR 5/8", OD copper
tubing and fittings
• 10", 5/8" OD soil
copper tubing if
high loop drain is
needed. (See Page 3.)
• 3/4" strain relief
• bushing
• tubing cutter
• pipe-joint
compo_Jnd
• twist.on wire
connectors
• electrical tape
To Next Page
