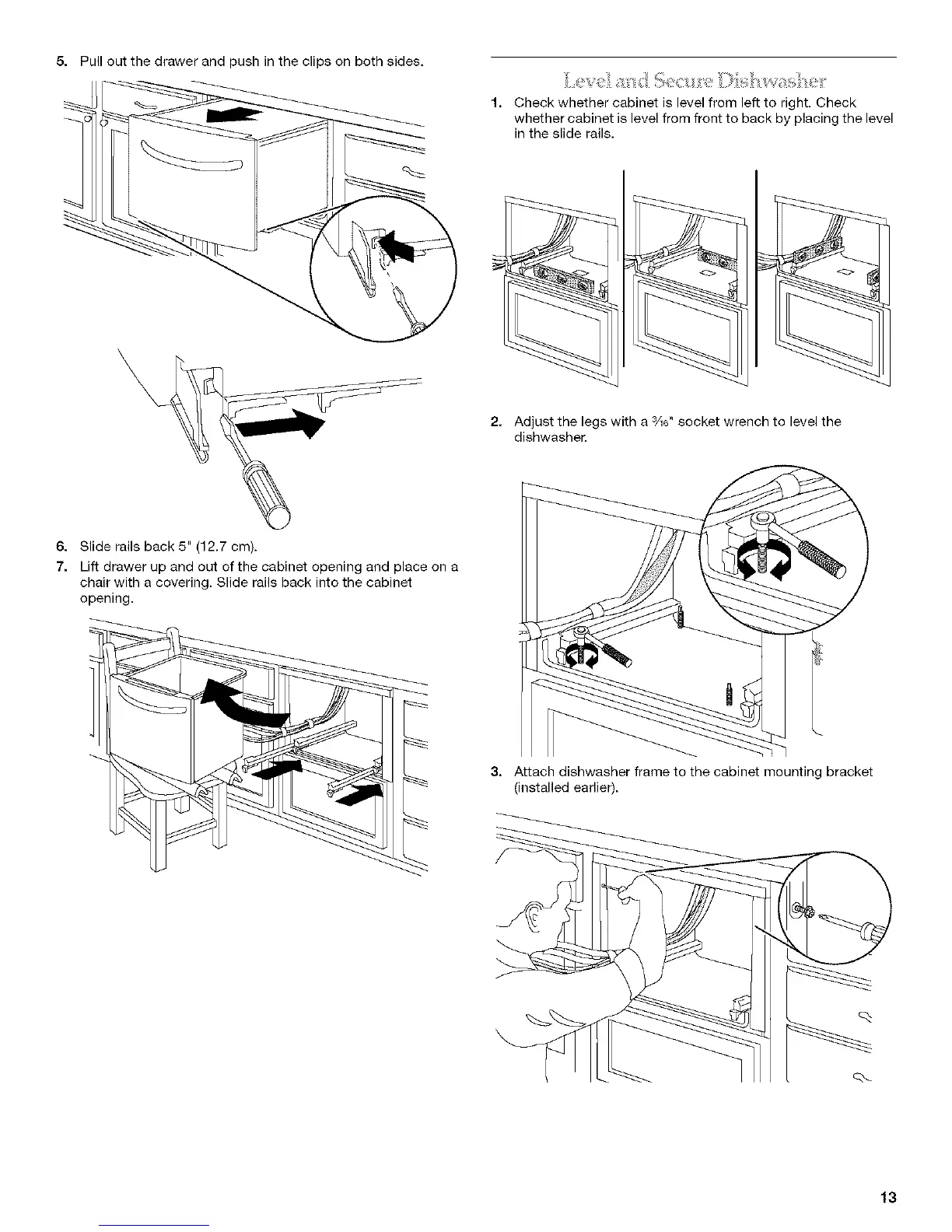

5. Pull out the drawer and push in the clips on both sides.
r
1. Check whether cabinet is level from left to right. Check
whether cabinet is level from front to back by placing the level
in the slide rails.
\
2. Adjust the legs with a 3_6"socket wrench to level the
dishwasher.
6. Slide rails back 5" (12.7 cm).
7. Lift drawer up and out of the cabinet opening and place on a
chair with a covering. Slide rails back into the cabinet
opening.
3. Attach dishwasher frame to the cabinet mounting bracket
(installed earlier).
13
