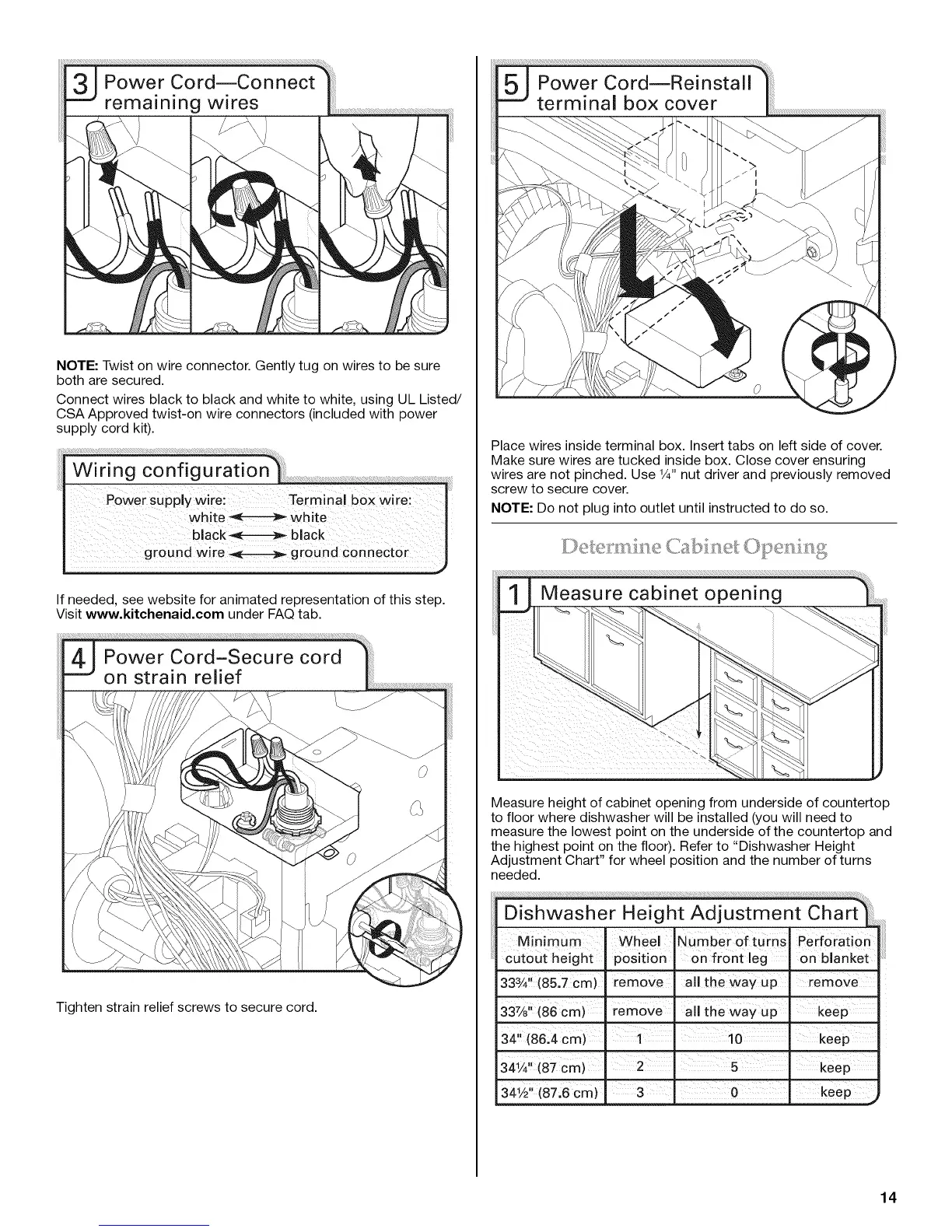

NOTE: Twist on wire connector. Gently tug on wires to be sure
both are secured.
Connect wires black to black and white to white, using UL Listed/
CSA Approved twist-on wire connectors (included with power
supply cord kit).
Wiring configuration
If needed, see website for animated representation of this step.
Visit www.kitchenaid.com under FAQ tab.
Tighten strain relief screws to secure cord.
Place wires inside terminal box. Insert tabs on left side of cover.
Make sure wires are tucked inside box. Close cover ensuring
wires are not pinched. Use 1/4"nut driver and previously removed
screw to secure cover.
NOTE: Do not plug into outlet until instructed to do so.
Measure height of cabinet opening from underside of countertop
to floor where dishwasher will be installed (you will need to
measure the lowest point on the underside of the countertop and
the highest point on the floor). Refer to "Dishwasher Height
Adjustment Chart" for wheel position and the number of turns
needed.
.............. e A ustmen
Minimum wheel Numberofturns Perforation
i m
cutout height position on front leg on blanket
333A"(85.7cm) remove all the way up' remove
I I
33%" (86 Cm) remove all the way up keep
| [ II
34" (86,4 cm)1 10- keep
341/2"(87,6 cm)
14
