Custom Overlay Drawer Panels
If you plan to install custom wood panels, you will need to create
the panels yourself or consult a qualified cabinetmaker or
carpenter. See dimension drawings for panel specifications.
IMPORTANT:
■ The thickness of the overlay panels must be ³⁄₄" (19.05 mm).
■ To avoid damage to the drawers, each overlay panel must not
weigh more than 10 lbs (4.5 kg).
■ Do not exceed the height dimension for the overlay panels.
Panels that exceed the height dimension may damage the
refrigerator drawers, cabinets or countertop.
■ The width of the overlay panels may vary according to the
width of the cabinet opening.
■ For the installation of the customer panel, you will need the
following parts:
■ Screws (SS Flat M4x12 tapping 1) (16)
■ Self-tap wood screws (4)
■ Drawer overlay hook plate right (SPHC T=2.3) (4)
■ Drawer overlay hook plate left (SPHC T=2.3) (4)
NOTE: Some or all parts may or may not be included. If your
product does not include these parts, contact Assistance or
Service or ask a specialist.

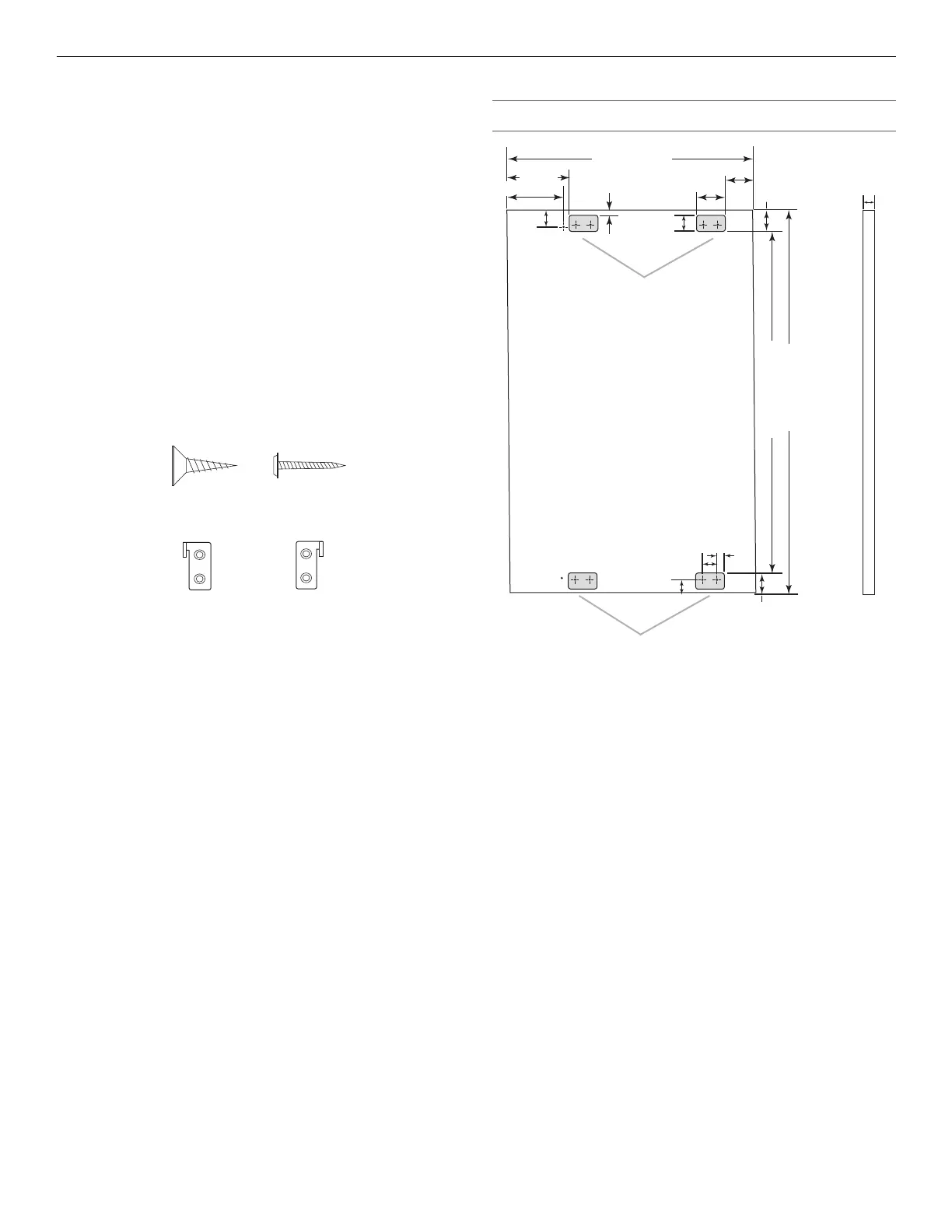

Top and Bottom Overlay Drawer Panel Dimensions
A. SS Flat M4x12 tapping screws
B. Self-tap wood screws
D. Overlay hook plate right
F. Overlay hook plate left
A. Rout
¹⁄₈
" (3.18 mm) deep.
Top
Bottom
Reverse Side
Reverse
³⁄₈" (9 mm)
15" (38.05 cm)
3³⁄₈"
9.5 cm
1"
(2.6 cm)
1"
(2.4 cm)
1³⁄₄"(4.4 cm)
1¹¹⁄₁₆" (4.35 cm)
³⁄₄"
(1.9 cm)
21¹³⁄₁₆" (53.64 cm)
23 ³⁄₄" (60.3 cm)
1⁵⁄₁₆" (3.3 cm)
¹⁵⁄₁₆" (2.3 cm)
¹³⁄₁₆" (2.0 cm)
⁷⁄₁₆" (1.2 cm)
1⁵⁄₁₆" (3.3 cm)
A
A
3³⁄₈" (8.6 cm)
