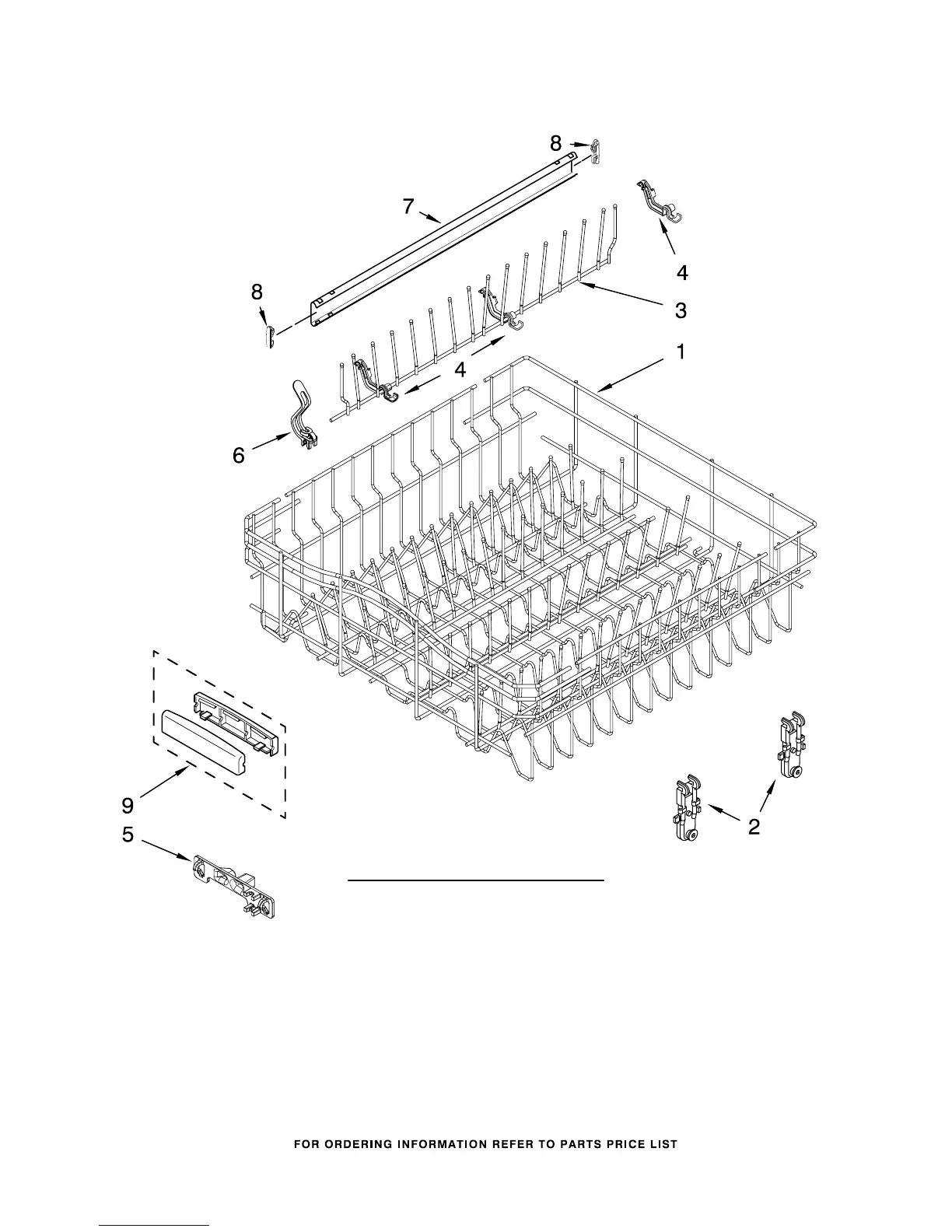

UPPER RACK AND TRACK PARTS
11
For Models: KUDK03CTBL3, KUDK03CTWH3, KUDK03CTSS3
(Black) (White) (Stainless)
W10200698
Illus. Part
No. No. DESCRIPTION
1 8539235 Dishrack, Upper
2
W10078214 Mount, Wheel
Stationary
3 9744566 Tine Row
4
W10082853 Clip, Pivot
5 8539102 Positioner, Dual
6
W10077844 Clip, No−Flip
7 3385089 Track, Rack
8
W10082860 Stop, Track
9 8539110 Handle,Dishrack
