KitchenAid KUDK03CTBL3 - Page 3

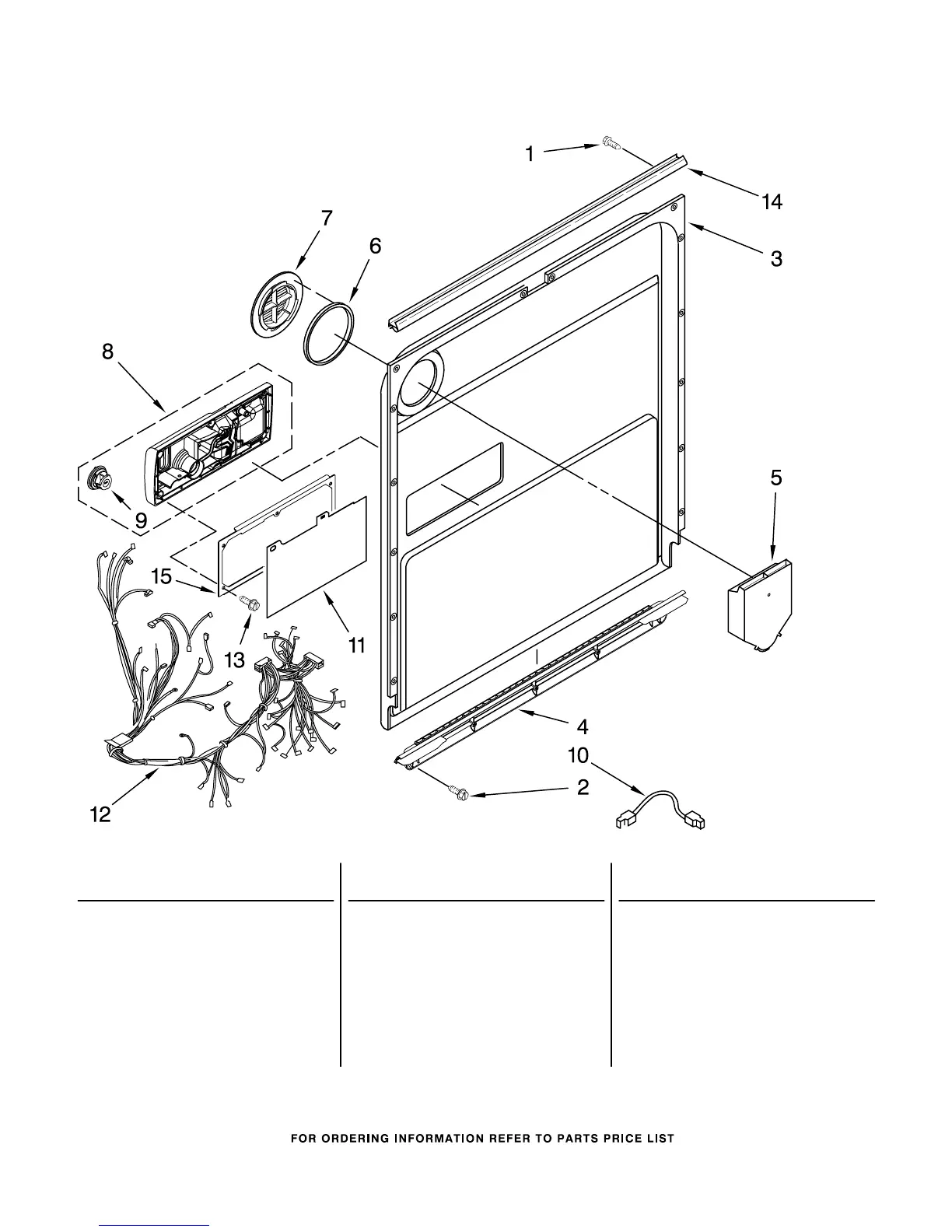

DOOR AND LATCH PARTS
3
For Models: KUDK03CTBL3, KUDK03CTWH3, KUDK03CTSS3
(Black) (White) (Stainless)
W10200698
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
1 3369051 Screw, Door
2 8281217 Screw
3
W10056249 Inner Door
Mastic Assembly
(Also Order
Item 6)
4
W10077883 Inlet, Air
5 8572611 Vent Assembly
(Also Order
Item 6)
6 8269259 Gasket, Vent
7
W10077877 Deflector, Vent
(Also Order
Item 6)
8
W10077882 Dispenser,
Assembly
9
W10077881 Knob, Rinse Aid
10 8545608 Harness, Vent
Motor
11 8531865 Shield, Dispenser
12
W10078201 Wiring Harness
Main
13 8281154 Screw
14 8535660 Seal,
Console/door
15 8535637 Bracket,
Dispenser
