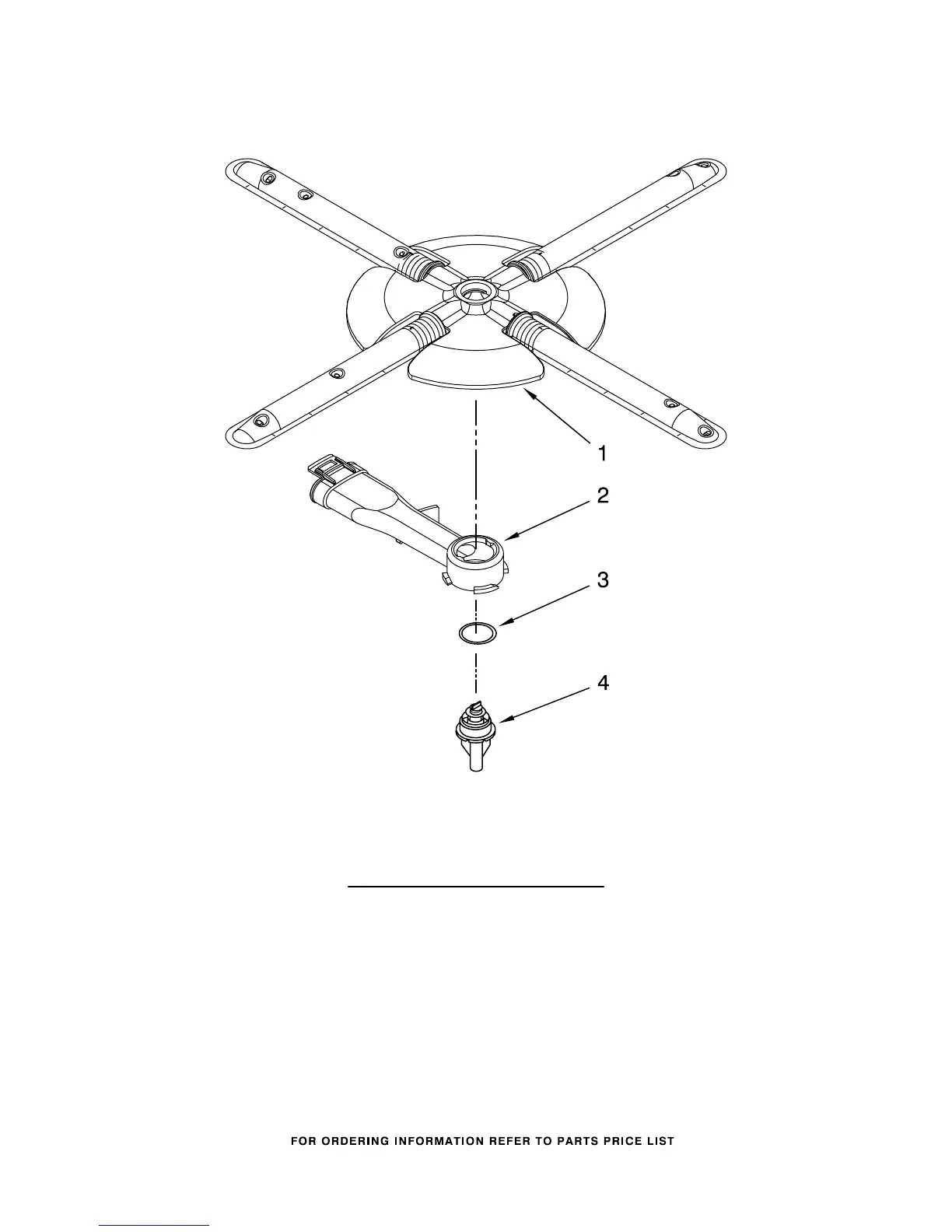

LOWER WASHARM AND STRAINER PARTS
9
For Models: KUDK03ITBL3, KUDK03ITWH3, KUDK03ITBT3, KUDK03ITBS3
(Black) (White) (Biscuit) (Stainless)
W10200482
Illus. Part
No. No. DESCRIPTION
1 W10077965 Wash Arm Assembly
2
W10077899 Cap, Internal
Rear Feed
(Also Order
Item 3)
3 8268340 Seal, Sprayarm
4
W10077898 Hub, Lower
Sprayarm
(Also Order
Item 3)
