KitchenAid KUDS01FLBL1 - Page 4

4

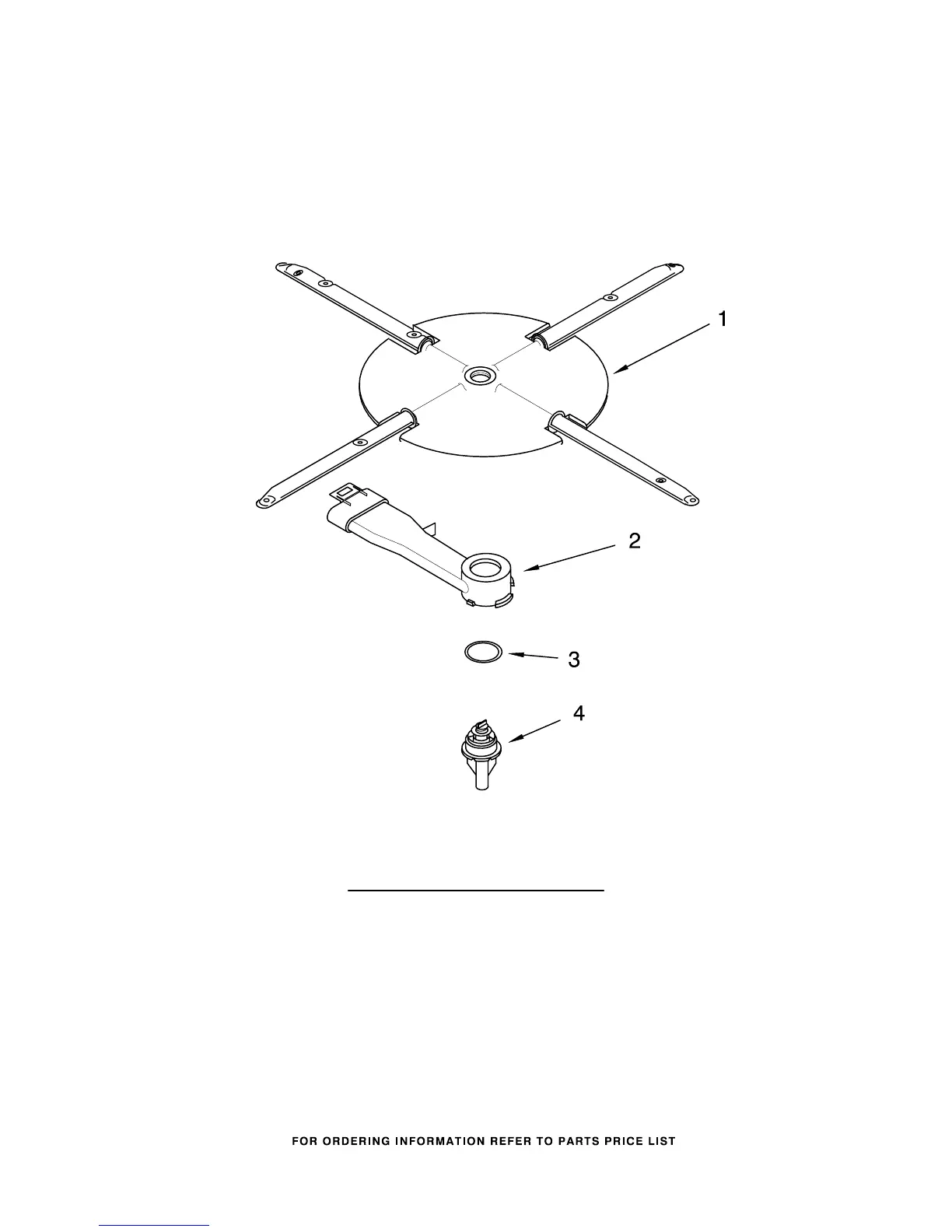

LOWER WASHARM AND STRAINER PARTS
For Models: KUDS01FLBL1, KUDS01FLWH1, KUDS01FLBT1, KUDS01FLSS1
(Black) (White) (Biscuit) (Stainless)
8193798
Illus. Part
No. No. DESCRIPTION
1 8268300 Wash Arm Assembly
2 8268343 Cap, Internal
Rear Feed
3 8268340 Seal, Sprayarm
4 8268342 Hub, Lower
Sprayarm
