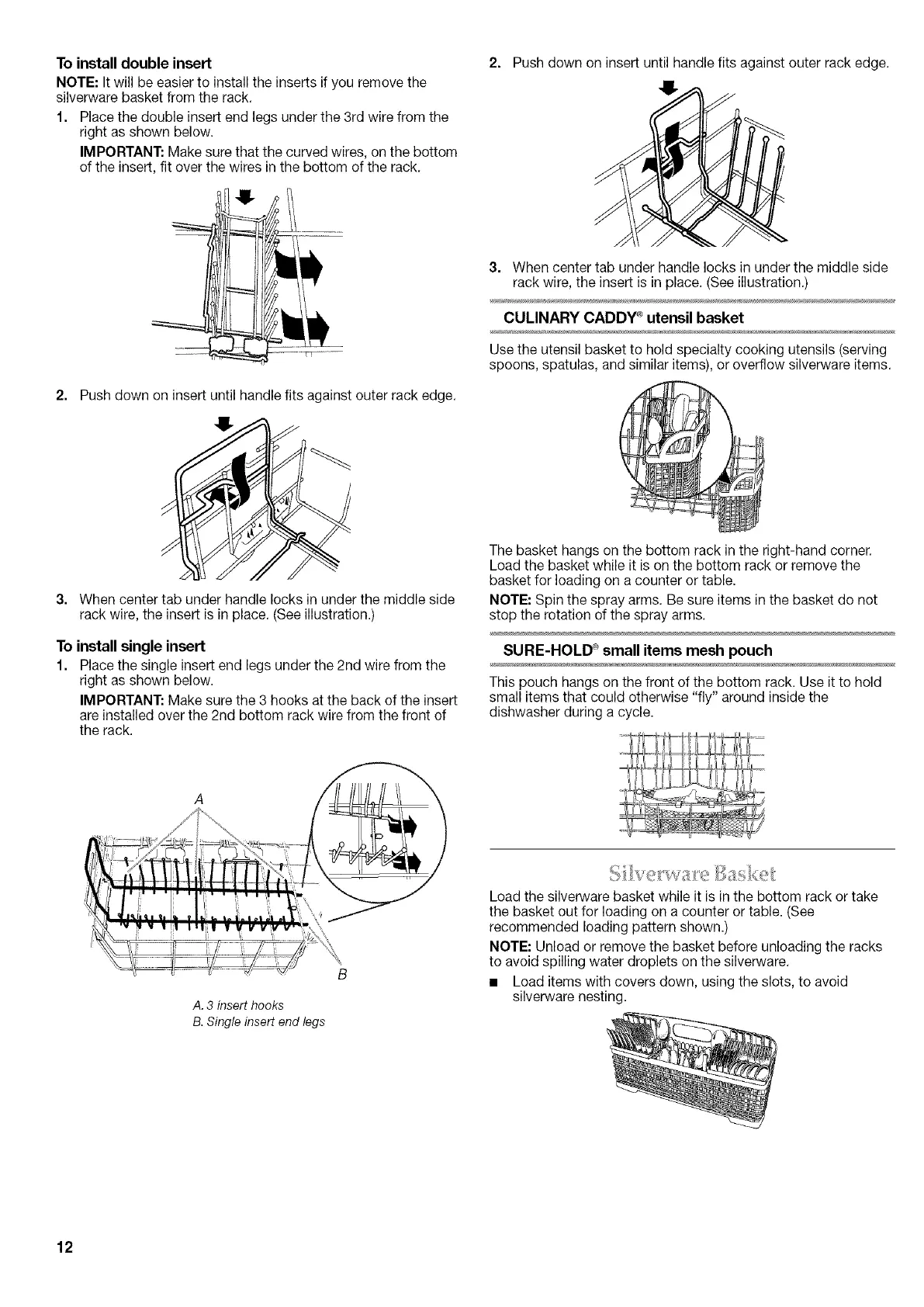

To install double insert
NOTE: It will be easier to install the inserts if you remove the
silverware basket from the rack.
1. Place the double insert end legs under the 3rd wire from the
right as shown below.
IMPORTANT: Make sure that the curved wires, on the bottom
of the insert, fit over the wires in the bottom of the rack.
2. Push down on insert until handle fits against outer rack edge.
41-
2. Push down on insert until handle fits against outer rack edge.
41-
3. When center tab under handle locks in under the middle side
rack wire, the insert is in place. (See illustration.)
To install single insert
1. Place the single insert end legs under the 2nd wire from the
right as shown below.
IMPORTANT: Make sure the 3 hooks at the back of the insert
are installed over the 2nd bottom rack wire from the front of
the rack.
3. When center tab under handle locks in under the middle side
rack wire, the insert is in place. (See illustration.)
CULINARY CADDY e_utensil basket
Use the utensil basket to hold specialty cooking utensils (serving
spoons, spatulas, and similar items), or overflow silverware items.
The basket hangs on the bottom rack in the right-hand corner.
Load the basket while it is on the bottom rack or remove the
basket for loading on a counter or table.
NOTE: Spin the spray arms. Be sure items in the basket do not
stop the rotation of the spray arms.
SURE-HOLD* small items mesh pouch
This pouch hangs on the front of the bottom rack. Use it to hold
small items that could otherwise "fly" around inside the
dishwasher during a cycle.
A. 3 insert hooks
B. Single insert end legs
Load the silverware basket while it is in the bottom rack or take
the basket out for loading on a counter or table. (See
recommended loading pattern shown.)
NOTE: Unload or remove the basket before unloading the racks
to avoid spilling water droplets on the silverware.
• Load items with covers down, using the slots, to avoid
silverware nesting.
12
