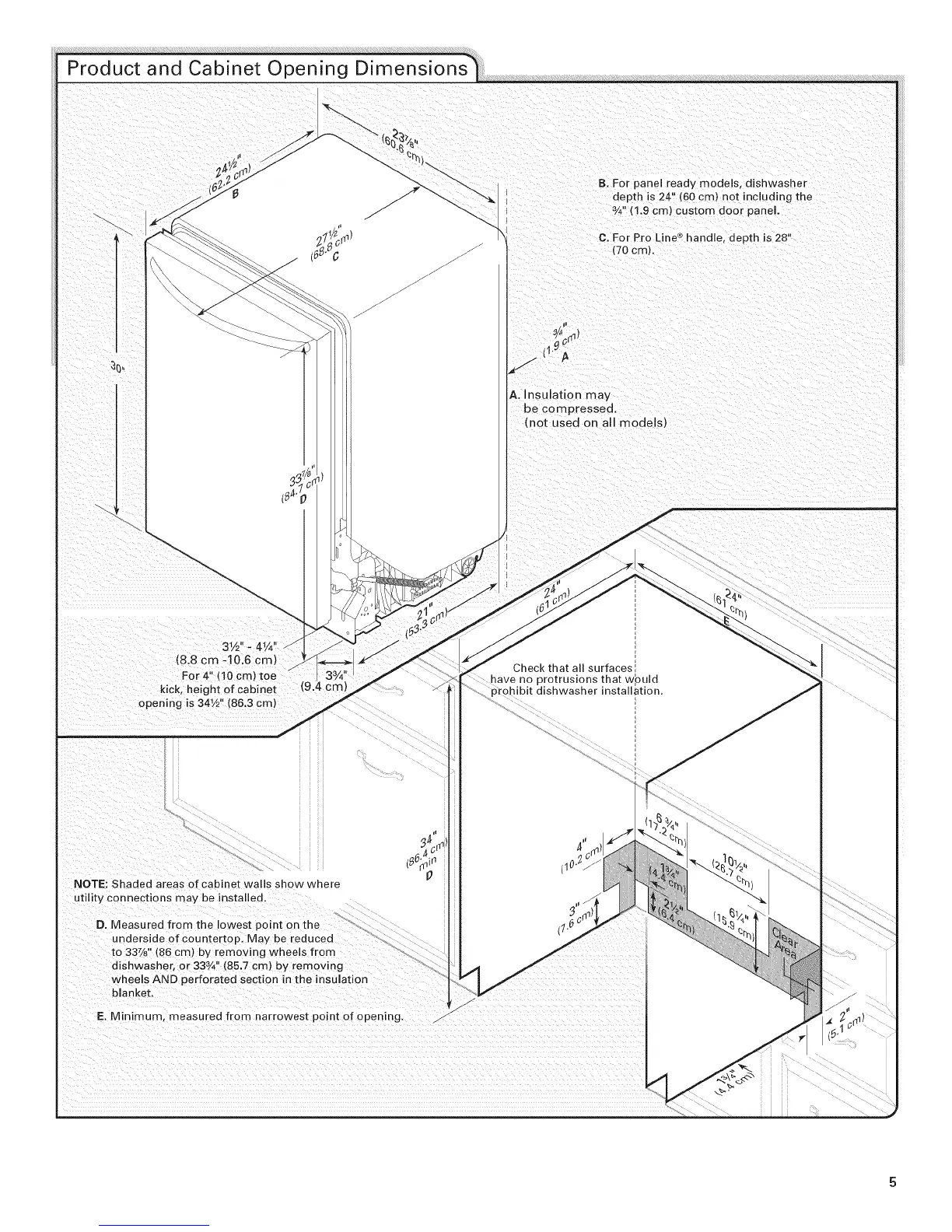

Product and Cabinet Opening Dimensions
31/_'' - 4W'
(8.8 cm -10.6 cm)
J
For 4" (10 cm) toe
kick, height of cabinet (9.,
opening is 341/2" (86.3 cm)
NOTE: Shaded areas of cabinet walls show where
utility connections may be installed.
D. Measured from the lowest point on the
underside of countertop. May be reduced
to 33%'" (86 cm) by removing wheels from
dishwasher, or 333/4'' (85.7 cm) by removing
wheels AND perforated section in the insulation
blanket.
E. Minimum, measured from narrowest point of opening.
B. For panel ready models, dishwasher
depth is 24" (60 cm) qot including the
_/4"(1.g cm) custom door panel
C. For Pro Line _ handle, depth is 28"
(70 cm).
A. Insulation may
be compressed.
(not used on all models)
p
Check that all surfaces
have no protrusions that would
prohibit dishwasher installation.
To Next Page
