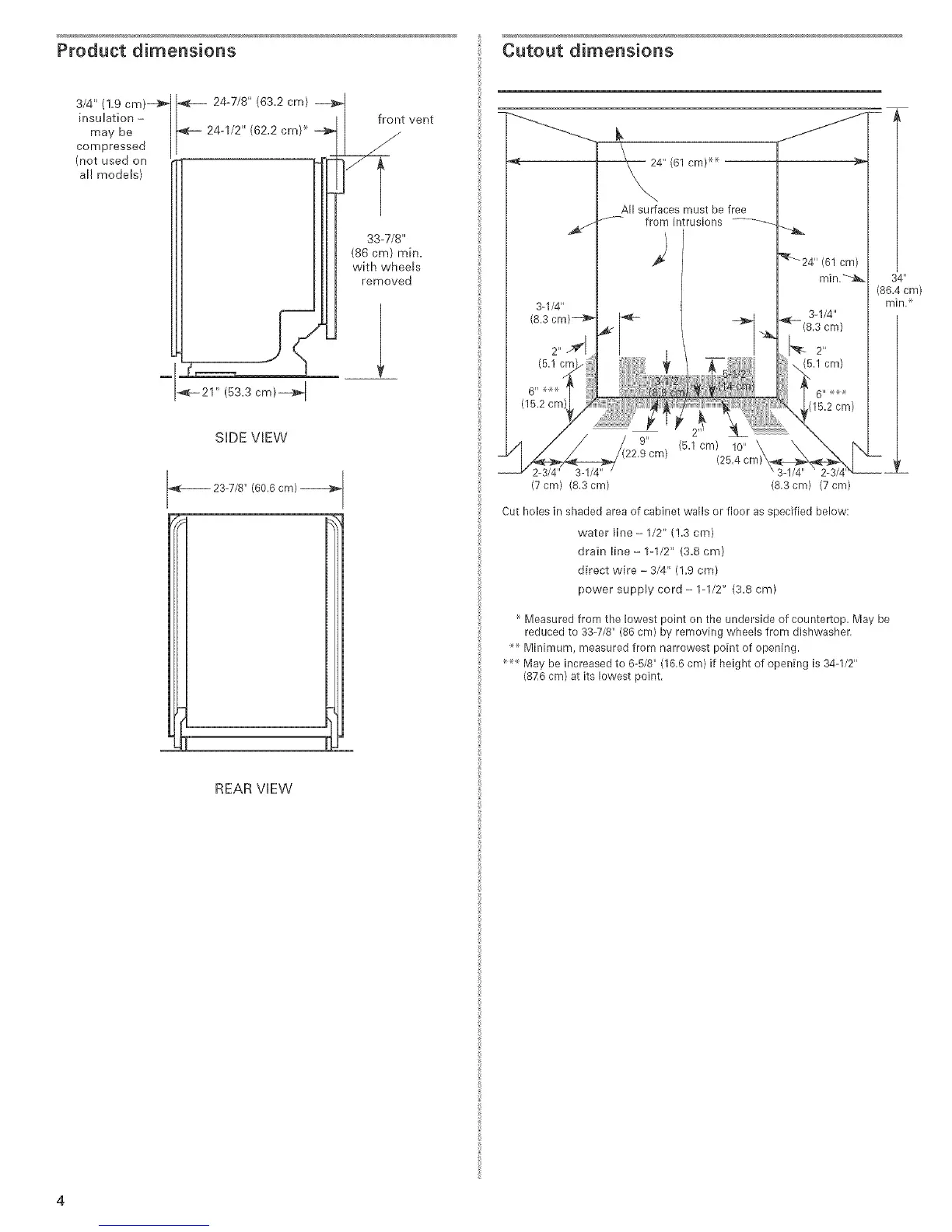

Product dimensions
3/4" (!.9 cm)-a_
insu !ation -
may be
compressed
(not used on
al! models)
24-7/8" (63.2 cm) _1
/
I I front vent
24-1/2" (62.2 cm) _ _11 _
I Ill SS-TJS"
Ill I (s6cm>mh_.
removed
_- 21" (53.3 cm)--_ I
SIDE VIEW
23-7/8" (60.6 cm)
REAR VIEW
Cutout dimensions
All surfaces must be free
/'_- from intrusions
I ÷1
._ (5.1 cm) 10"
(25.4
2-3/4" 3-1/4"
(7 cm) (8.3 cm) (8.3 cm) (7 cm)
Cut holes in shaded area of cabinet walls or floor as specified below:
water line - 1/2" (!.3 cm)
drain line- 1-1/2" (3.8 cm)
direct wire - 3/4" (!.9 cm)
power supply cord - 1-1/2" (3.8 cm)
34 _'
(86.4 cm)
min.
Measured from the lowest point on the underside of countertop. May be
reduced to 33-7/8" (86 cm) by removing wheels from dishwasher.
Minimum, measured from narrowest point of opening.
May be increased to 6-5/8" (16.6 cm) if height of opening is 34-1/2"
(876 cm) at its lowest point.
!
