4-23
Slide Cap Off Door

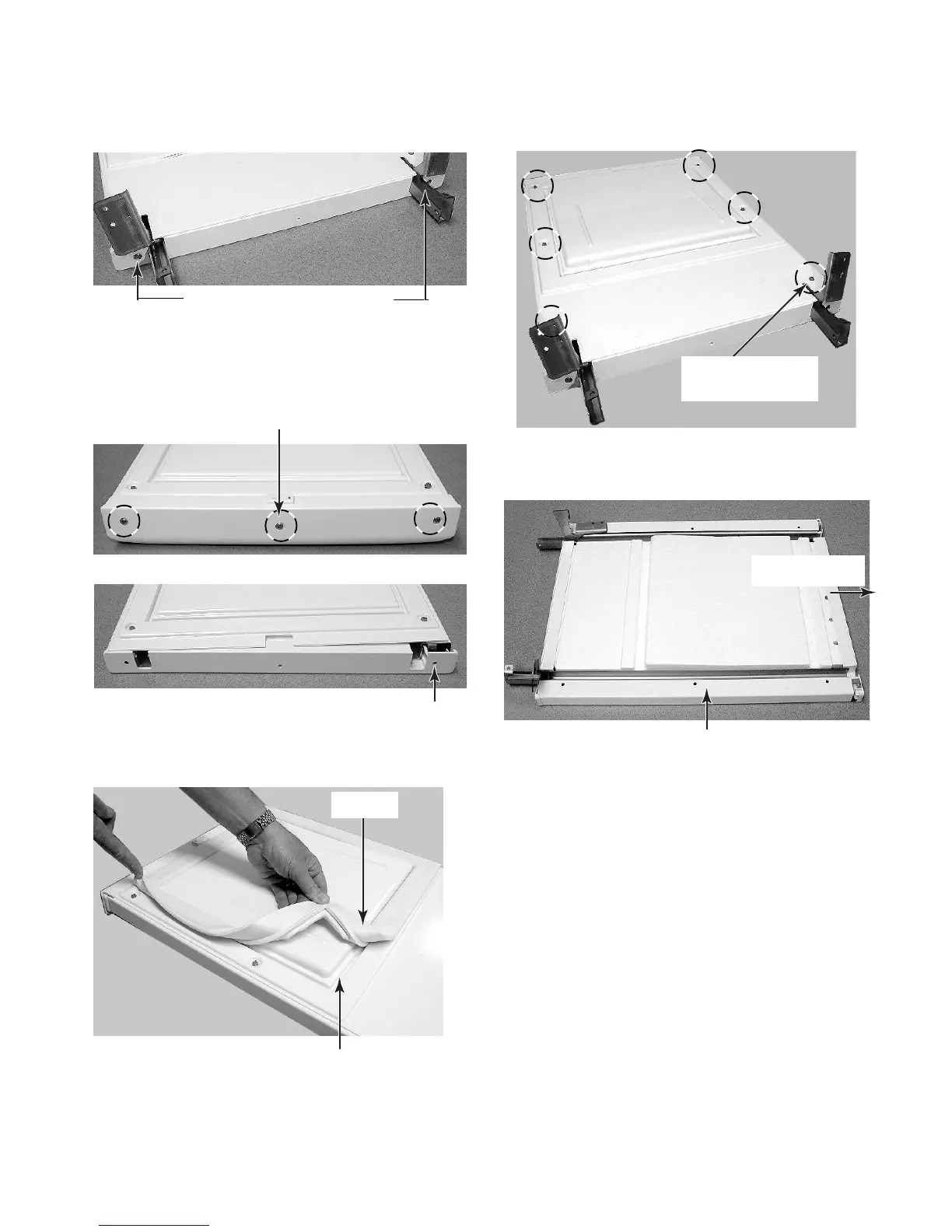

4. Remove the two screws from the bottom
door cap.
5. Remove the three screws from the door
handle and the top door cap and remove
the handle and cap from the door.
Bottom Door Cap Screws
Handle & Cap Screw (1 of 3)
6. Peel the gasket from the grooves in the
door and remove the gasket.
Door Channel
7. Remove the six screws from the inner
door panel and remove the panel.
Inner Door Panel
Screw (1 of 6)
Gasket
Door Insulation
8. Slide the door insulation out of the top of
the outer door panel.
Slide Out Here
Outer Door Panel
Continued on the next page.
To Next Page
