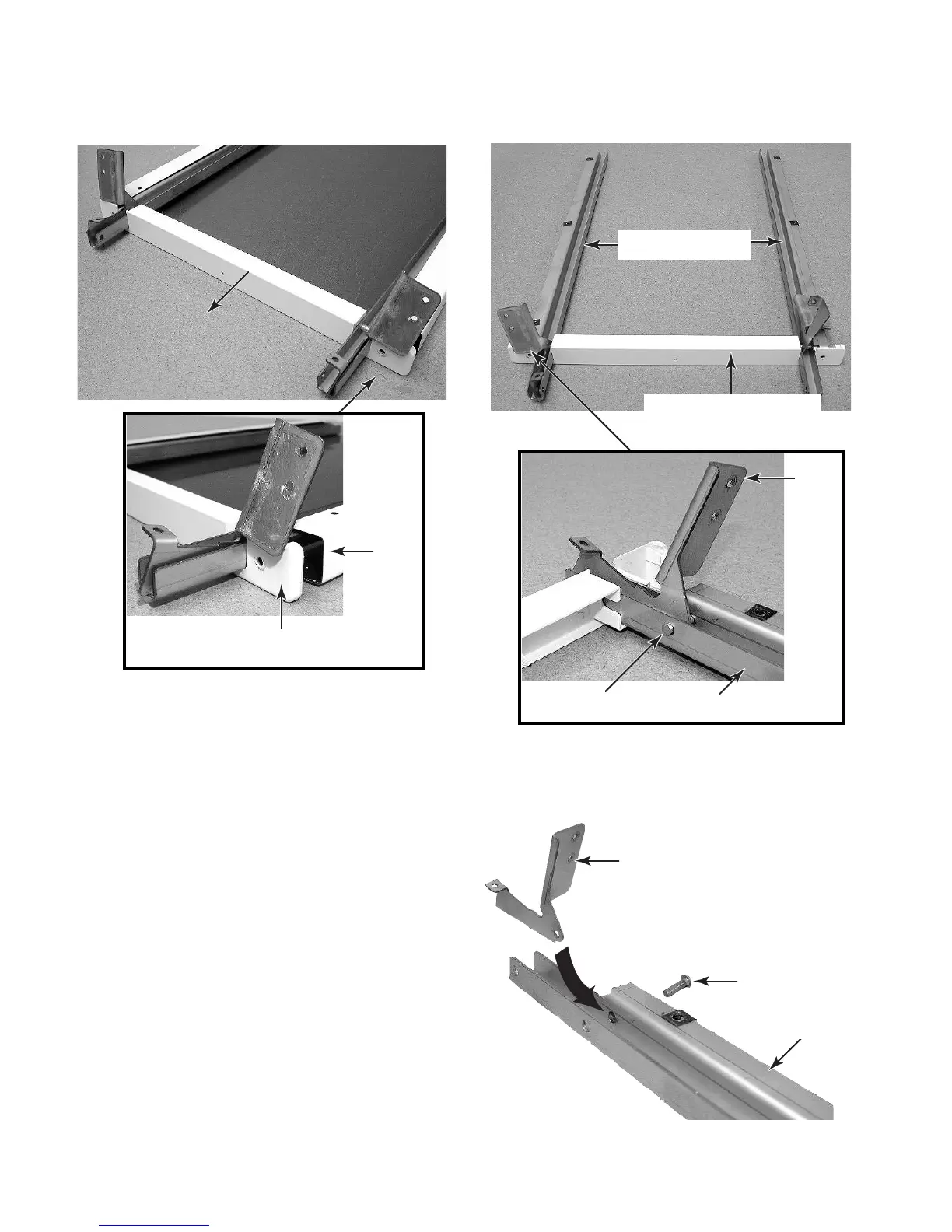

9. Slide the bottom door cap and channel
supports out of the outer door panel.
Slide Bottom Door Cap & Channel
Supports Out Of Outer Door Panel
Outer
Door
Panel
10. Slide the bottom door cap off the channel
supports.
Channel Supports
Slide Bottom Door Cap
Off Channel Supports
Hinge Pin
Channel Support
Door
Hinge
Channel Support
11. To remove the door hinge, pull the hinge
pin out of the channel support and remove
the hinge.
Door Hinge
Hinge Pin
To Next Page
