Pay close attention to the positioning of each
thermistor and re-tape them in the same po-
sitions during reassembly.

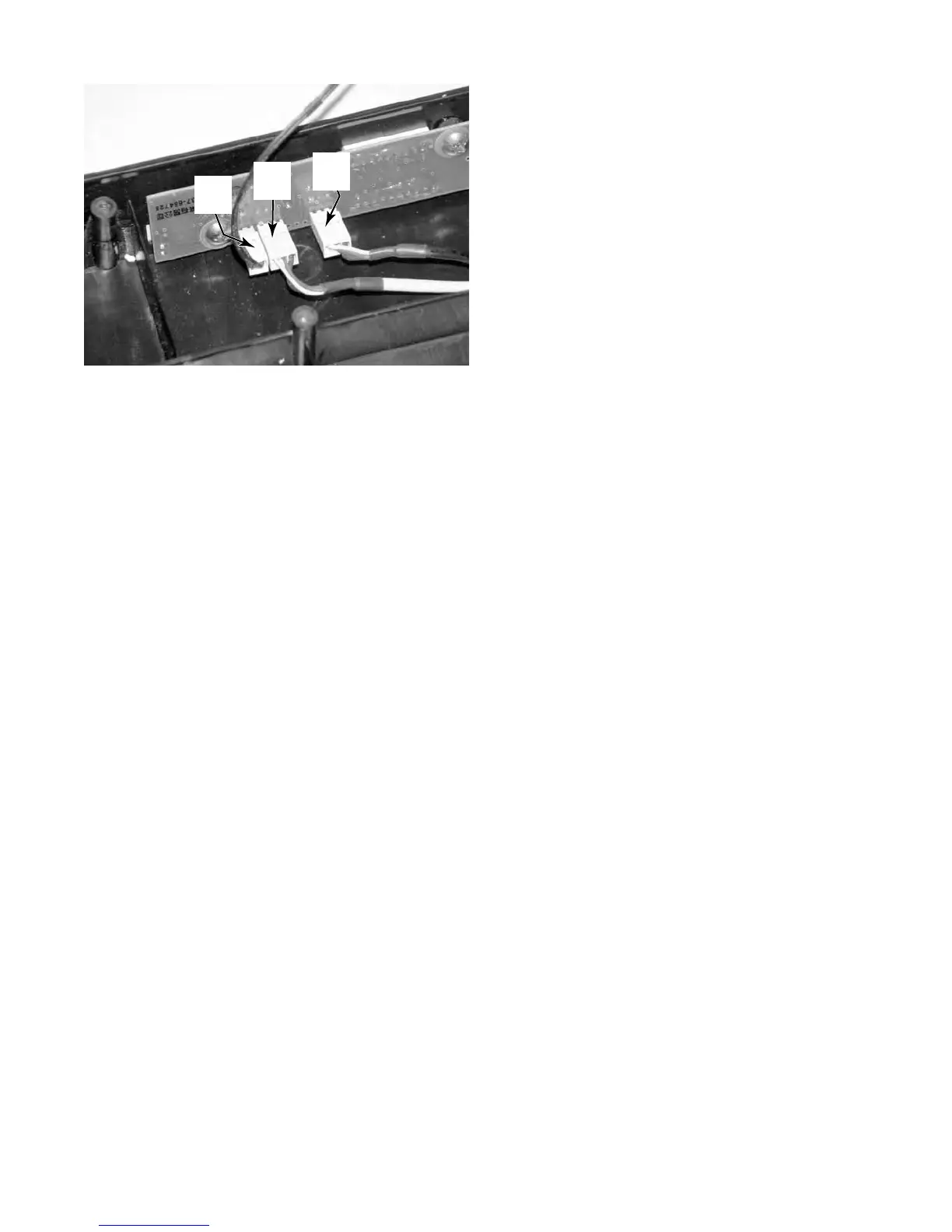

(BC) The Beverage Center connector plugs:
A. 2 pin feed wire from the back wall of unit.
B. 3 pin connector for the top thermistor.
(This will not be present on the Wine Cellar.)
C. 3 pin connector for the bottom thermistor.
5.
6.
•
•
•
B
C
A
