Description
Inches
cm
J
Width of Dispenser
9
3
/
16
23.3
K
Height of Dispenser
7
11
/
16
19.5
L
Water line location
distance from side
17
3
/
4
45.0
M
Water line location
distance from front
3
1
/
4
8.2
N
Height of grille (top)
8
7
/
8
22.6
O
To bottom of solid
soffit (minimum &
maximum)
83
1
/
2
84
5
/
8
212.1
215
P
Overall Width with
side trims
36"
42"
48"
36
3
/
8
42
3
/
8
48
3
/
8
92.3
107.6
122.8
When leveling legs are fully extended to 1¹⁄₄" (3.2 cm) below
rollers, add 1¹⁄₈" (2.9 cm) to the height dimensions.

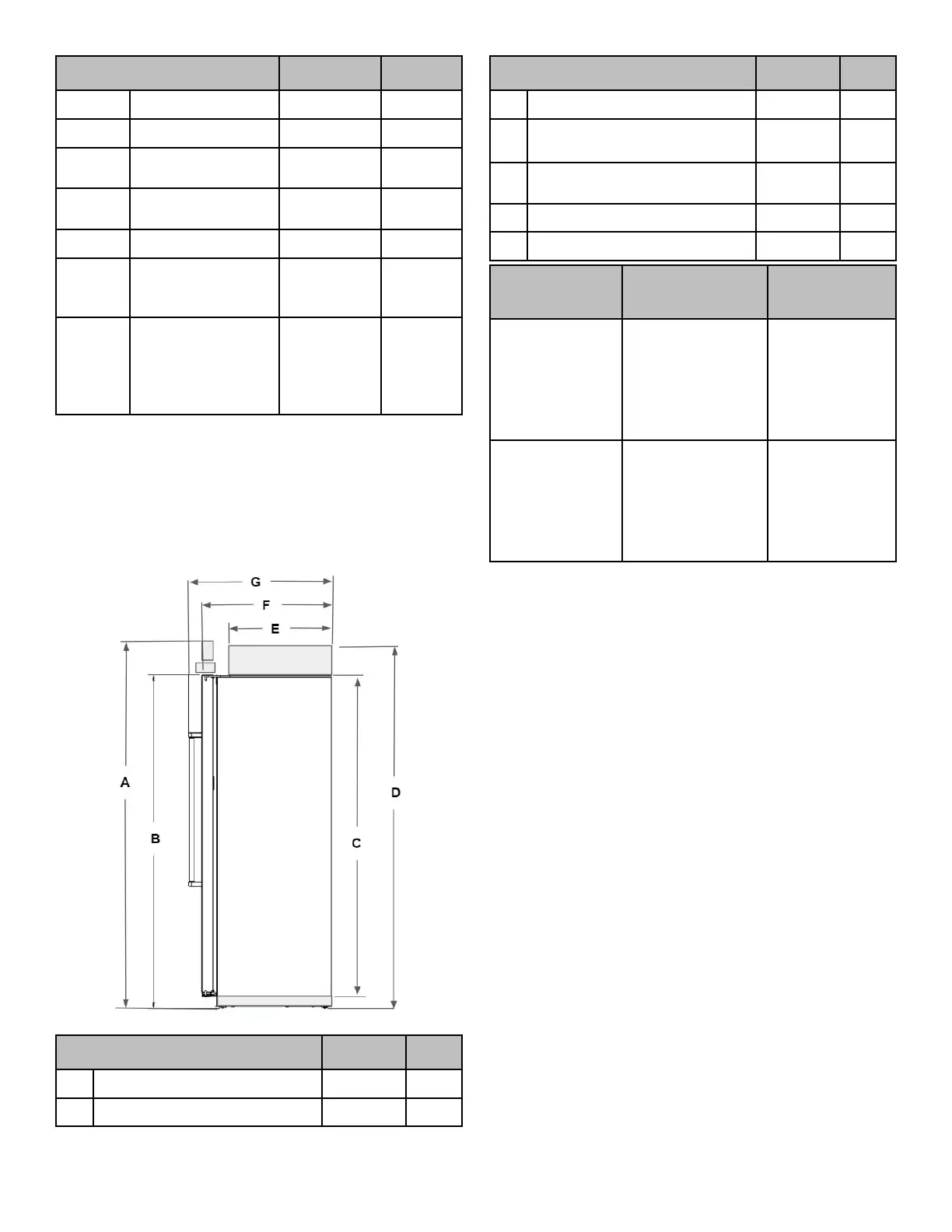

Side View
� The depth from the front of the top grille to the back of the
refrigerator cabinet is 25
3
⁄
8
" (64.5 cm).
� The power cord is 84" (213 cm) long.
� Height dimensions are shown with leveling legs extended 1/8"
(3 mm) below the rollers.
Description Inches
cm
A
Total height
83
3
/
8
211.8
B
Height to top of doors
74
1
/
2
189.2
Description Inches
cm
C
Height of Cabinet
71 180.4
D
Height to top of machine
compartment cover
83
3
/
16
211.3
E
Depth to machine compartment
cover
19
15
/
16
50.6
F
Depth with doors
25 63.5
G
Depth with handles
27
11
/
16
70.4
Interior
dimensions
Width Height
Inches
cm
Inches
cm
Refrigerator
Compartment
36" 17
5
/
16
44.0
67
1
/
16
170.442" 20
13
/
16
52.9
48" 24
5
/
16
61.8
Freezer
Compartment
36" 11
13
/
16
30.0
66
3
/
4
169.642" 14
5
/
16
36.4
48" 16
13
/
16
42.7
When leveling legs are fully extended to 1¹⁄₄" (3.2 cm) below
rollers, add 1¹⁄₈" (2.9 cm) to the height dimensions.
