KitchenAid Stainless Series - Overlay Series Panel Clearance

14

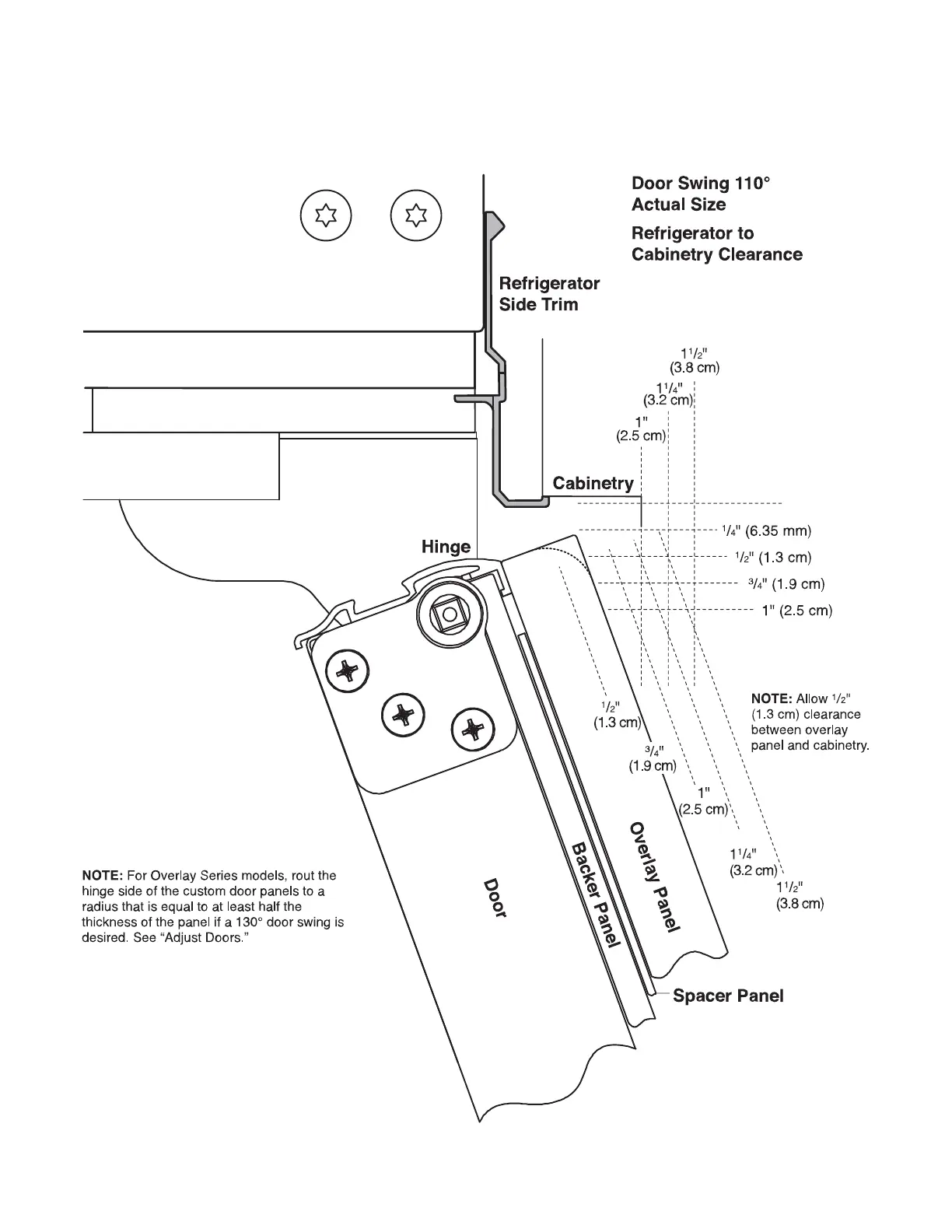

Overlay Series Door Panel and Cabinetry Clearance
The custom door panels and adjacent cabinetry must be designed so that there is sufficient clearance for the doors to swing open. If the
refrigerator is to be installed close to the wall, see “Door Swing 90°” on next page.
