15

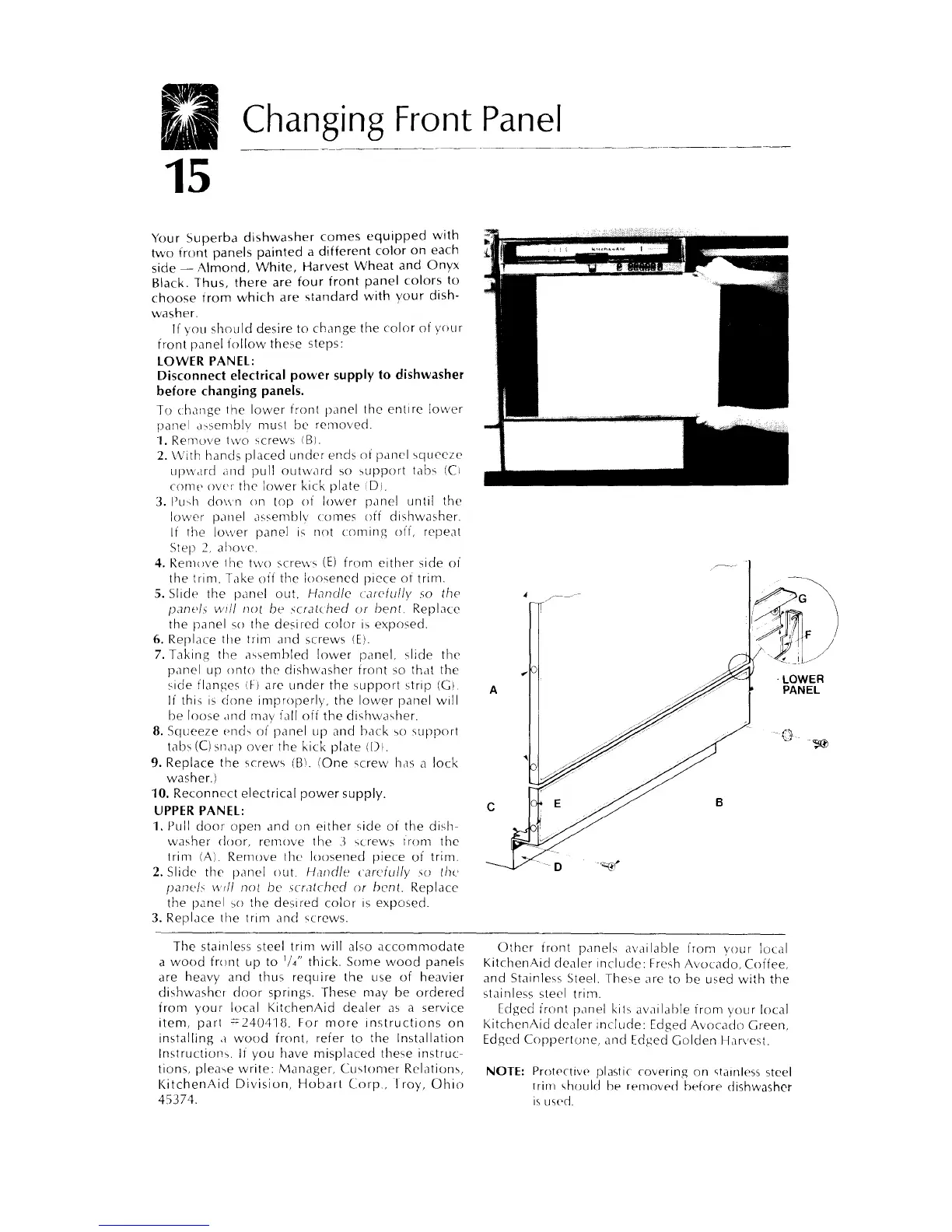

Changing Front Panel
Your Superba dishwasher comes equipped with
two front panels painted a different color on each
side- Almond, White, Harvest Wheat and Onyx
Black• Thus, there are four front panel colors to
choose from which are standard with your dish-
washer•
If you should desire to change the color of your
front panel follow these steps:
LOWER PANEL:
Disconnect electrical power supply to dishwasher
before changing panels.
To change the lower front panel the entire [ower
panel a_sembly must be removed.
1. Remove two screws (B).
2. With hands placed under ends of panel squeeze
upward and pull outward so support tabs (C)
(ome ow'r the lower kick plate (D).
3. PLl'dl down on top of lower panel until the
lower panel assembly comes off dishwasher.
If the lower panel is not coming off, repeat
Step 2, above.
4. Remove the two scre_ss (E) from either side of
the trim. _rake off the loosened piece of trim•
5. Slide the panel out. Handle carefully so the
panels will not be scratched or bent. Replace
the panel so the desired color is exposed.
6. Replace the trim and screws (E).
7. Taking the assembled lower panel, slide the
panel up onto the dishwasher front so that the
side flanges (E) are under the support strip (G)
If this is done improperly, the lower panel will
be loose and may fall off the dishwasher.
8. Squeeze ends of panel up and back so support
tabs (C) snap over the kick plate (D).
9. Replace the screws (B;. (One screw has a lock
washer•)
10. Reconnect electrical power supply.
UPPER PANEL:
1, Pull door open and on either side of the dish
washer (loor, remove the 3 screws trom the
trim (A). Remove tile loosened piece of trim.
2. Slid(, the panel out. Handle carefully so the
panels vvHt not be scratched or bent. Replace
the panel so the desired color is exposed.
3. Replace the trim and qcrews.
A
C
•LOWER
PANEL
0
The stainless steel trim will also accommodate
a wood front up to _/4" thick. Some wood panels
are heavy and thus require the use of heavier
dishwasher door springs. These may be ordered
from your local KitchenAid dealer as a service
item, part =240418. For more instructions on
installing a wood front, refer to the Installation
Instructions. If you have misplaced these instruc
tions, please write: Manager, Cu_,tonler Relations,
KitchenAid Division, Hobart Corp., I roy, Ohio
45374.
Other front panels available from your local
KitchenAid dealer include: Fresh Avocado, Coffee,
and Stainless Steel• These are to be used with the
stainless steel trim.
Edged front panel kits available from your local
KitchenAid dealer include: Edged Avocado Green,
Edged Coppertone, and Edged Golden Harvest.
NOTE: Protectiw _ plastic covering on qainless steel
trim should be removed before dishwasher
is used.
