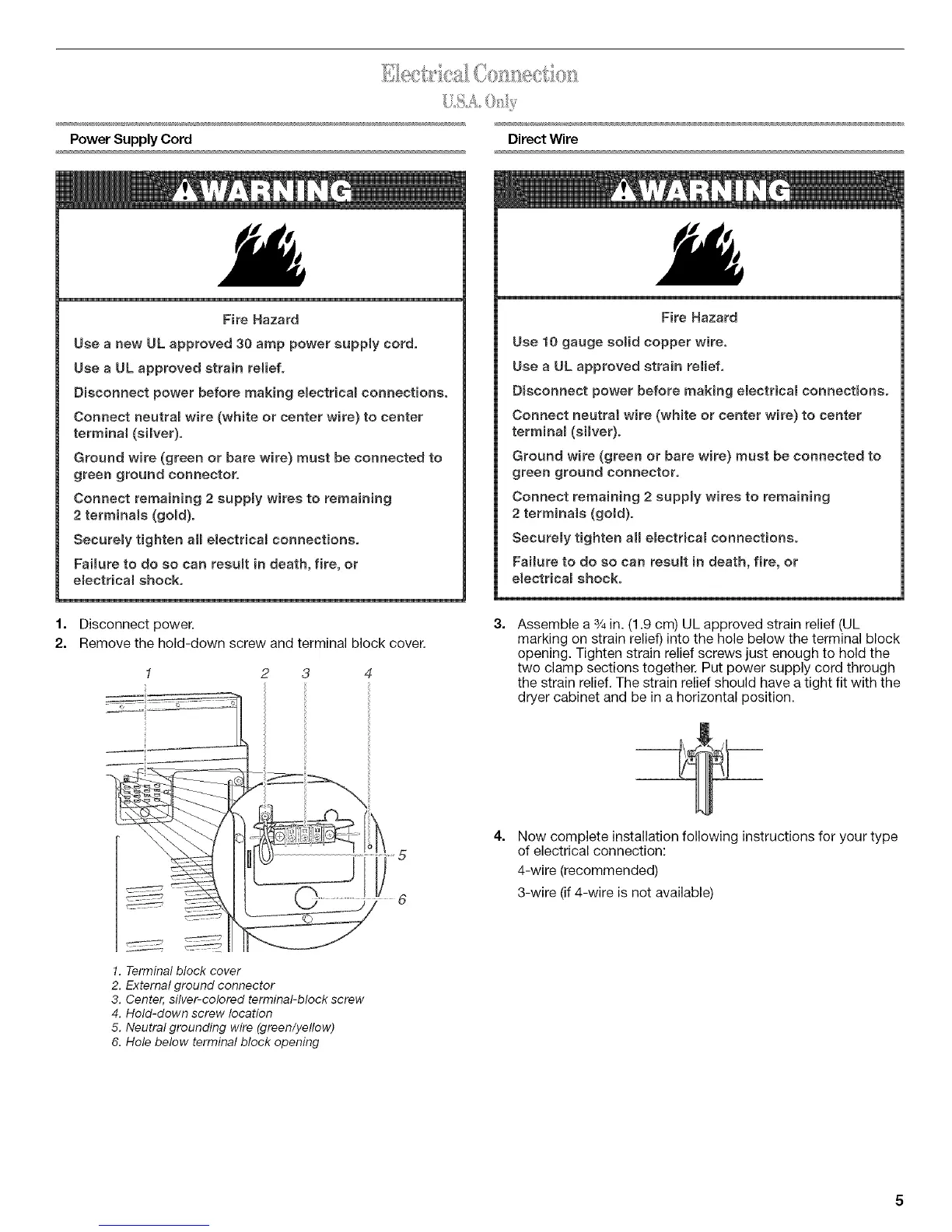

Power Supply Cord Direct Wire
Fire Hazard
Use a new UL approved 30 amp power supply cord,
Use a UL approved strain retief.
Disconnect power before making emectrical connections,
Connect neutral wire (white or center wire) to center
terminal (silver),
Ground wire (green or bare wire} must be connected to
green ground connector.
Connect remaining 2 suppmy wires to remaining
2 terminals (gored).
Securemy tighten aimelectrical connections,
Failure to de so can resumt in death, fire, or
electrical shock,
1. Disconnect power.
2. Remove the hold-down screw and terminal block cover,
2 4
1. Terminal block cover
2. External ground connector
3. Center, silver-colored terminal-block screw
4. Hold-down screw location
5. Neutral grounding wire (green/yeilow)
6. Hole below terminal block opening
Fire Hazard
Use 10 gauge somid copper wire.
Use a UL approved strain relief.
Disconnect power before making emectrical connections.
Connect neutral wire (white or center wire) to center
terminal (simver).
Ground wire (green or bare wire) must be connected to
green ground connector,
Connect remaining 2 suppmy wires to remaining
2 terminals (goJd).
Securely tighten aimemectrica{ connections.
Failure to do so can result in death, fire, or
eiectrica_ shock.
3. Assemble a 3/4in. (1.9 cm) UL approved strain relief (UL
marking on strain relief) into the hole below the terminal block
opening. Tighten strain relief screws just enough to hold the
two clamp sections together, Put power supply cord through
the strain relief. The strain relief should have a tight fit with the
dryer cabinet and be in a horizontal position.
Now complete installation following instructions for your type
of electrical connection:
4-wire (recommended)
3-wire (if 4-wire is not available)
