Kitchener 8 - Parts Diagram; Parts List

7 of 8

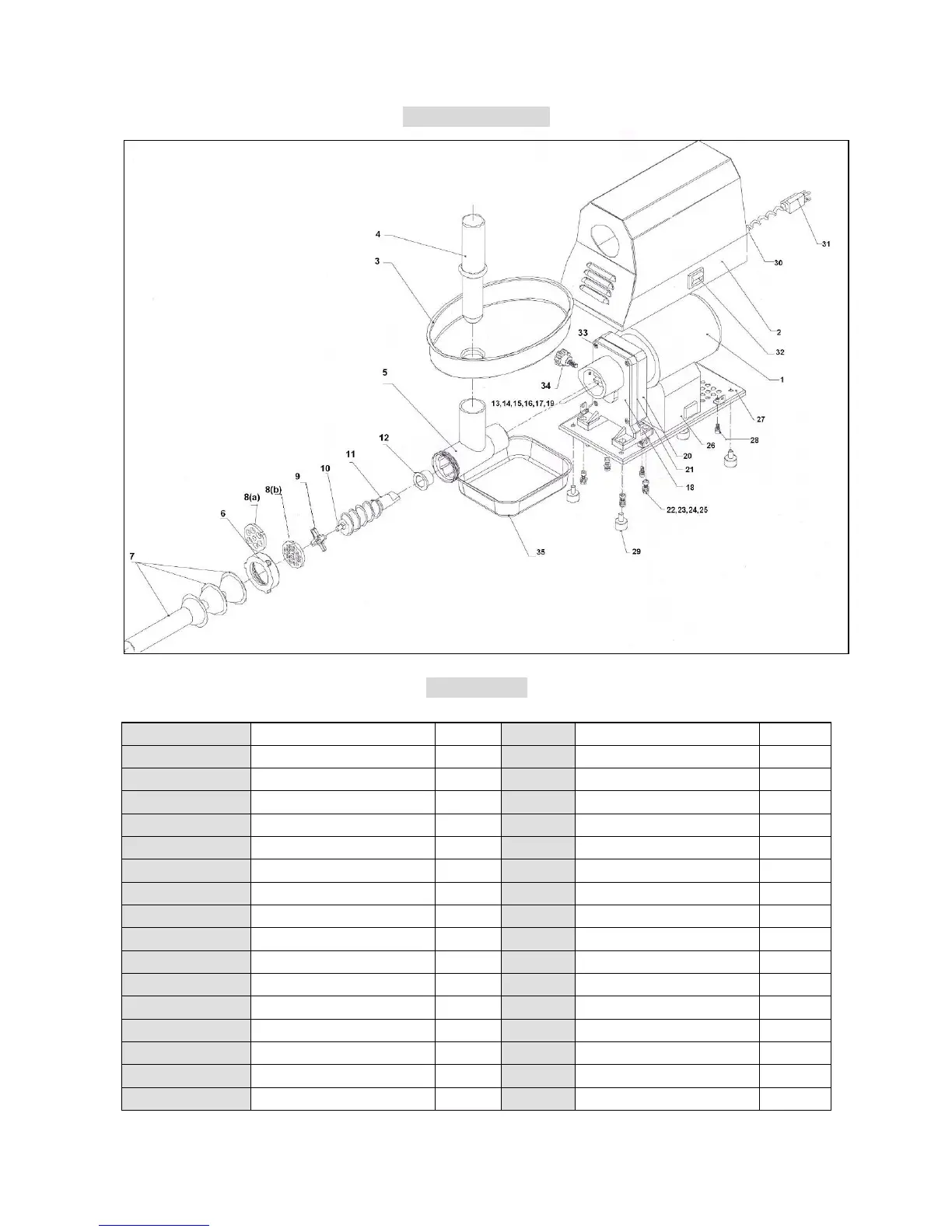

PARTS DIAGRAM
PARTS LIST
Part No.
Description
Qty.
Part No.
Description
Qty.
1
Motor Assembly
1 each
21
Gasket
1 each
2
Motor Cover
1 each
22
Hex Screw
4 each
3
Meat tray
1 each
23
Hex Nut
4 each
4
Meat Stomper
1 each
24
Flat washer
4 each
5
Grinder Head
1 each
25
Elastic washer
4 each
6
End Nut
1 each
26
Cable Box
1 each
7
Stuffing tubes
3 each
27
Support Base
1 each
8(a)
Plate - coarse
1 each
28
S/S Cross Screw
4 each
8(b)
Plate - fine
1 each
29
Foot
4 each
9
Blade
1 each
30
Cable clip
1 each
10
Stud
1 each
31
Cable
1 each
11
Auger
1 each
32
Waterproof switch
1 each
12
Auger Bushing
1 each
33
Hex Screw
4 each
13,14,15,16,17,19
Gear Assembly
1 each
34
Star Handle
1 each
18
Front panel of gear box
1 each
35
Receiving meat tray
1 each
20
Back Panel of Gear Box
1 each
For technical questions and replacement parts, please call 1-800-222-5381.
