Designing the Enclosure
(All measurements are in mm)
Mounting the PCB to the
enclosure

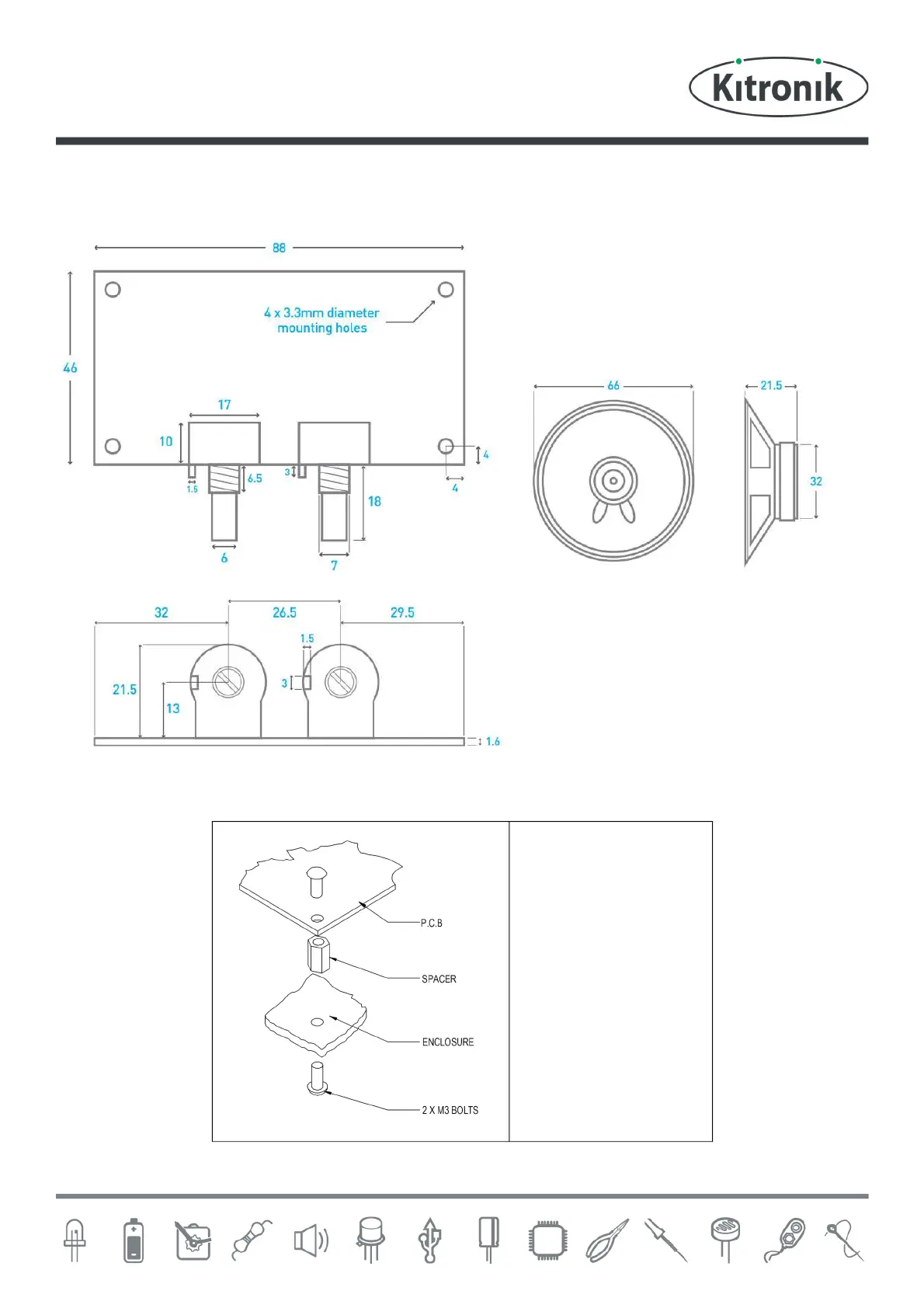

The drawing to the left
shows how a hex spacer
can be used with two bolts
to fix the PCB to the
enclosure.
Your PCB has four
mounting holes designed
to take M3 bolts.
