Klarstein 10034153 - Mounting the exhaust pipe

50
EN
Mounting the exhaust pipe
• The exhaust pipe outlet hole may be aligned horizontally to the heater
smoke outlet opening. In this case, the 1.5 m long ue pipe is laid outdoors.
You can also lay the 1.5 m long ue pipe on the inside (upwards to the
ceiling), in which case the outlet hole must be above the smoke outlet
opening of the heater.
• After inserting the ue pipe into the wall, the gap should be lled
and sealed with heat-resistant mineral bre. Seal the hole with high
temperature resistant cement.
• Do not proceed with the installation until the cement has solidied.

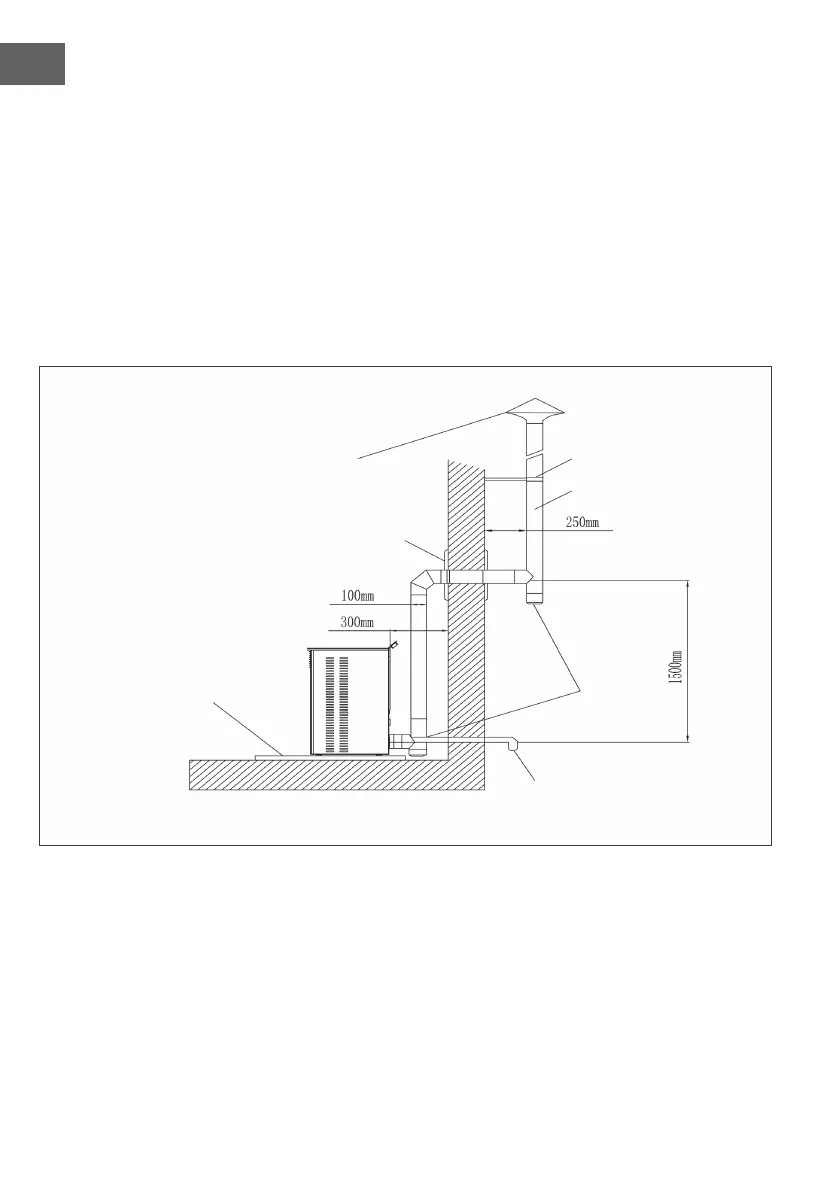

• Below is a standard installation drawing for reference. In this case, the
1.5m long pipe is laid in the interior:
Support bracket
Termination cap
Wall thimble
Floor protection plate
Chimney pipe
Combustion air connection
(Minimum diameter 50 mm)
Clean out
cover
