Klein + Hummel O 800 - Discrete Surround (AC-3, DTS)

Active Studio - Subwoofer O 800 Page 7
Front L + C + R
Rear L + R Low Frequency Effects (LFE) Subwoofer
O 110 O 800 O 800
For LFE Optional sub-extension for front chanels
Optional as sub-extension for rear channels
O 200 O 800 O 800
For LFE Optional sub-extension for front channels
Optional as sub-extension for rear chanels
O 300 D O 800 O 800
For LFE Optional sub-extension for front channels
Optional as sub-extension for rear chanels
O 400 O 800 1 or 2 x O 800
For LFE Optional sub-extension for front channels
Optional as sub-extension for rear chanels
4.2 Discrete Surround (AC-3, DTS)
With discrete 5.1 channel surround systems (5 separate main channels + 1 Low Frequency Effects channel) all
main channel monitors are to be of the same type, i.e., Monitor A = Monitor B = Monitor C.
If space is tight in smaller rooms, the next smaller monitor type can be substituted for the rear loudspeakers.
Mixing console
Listening point

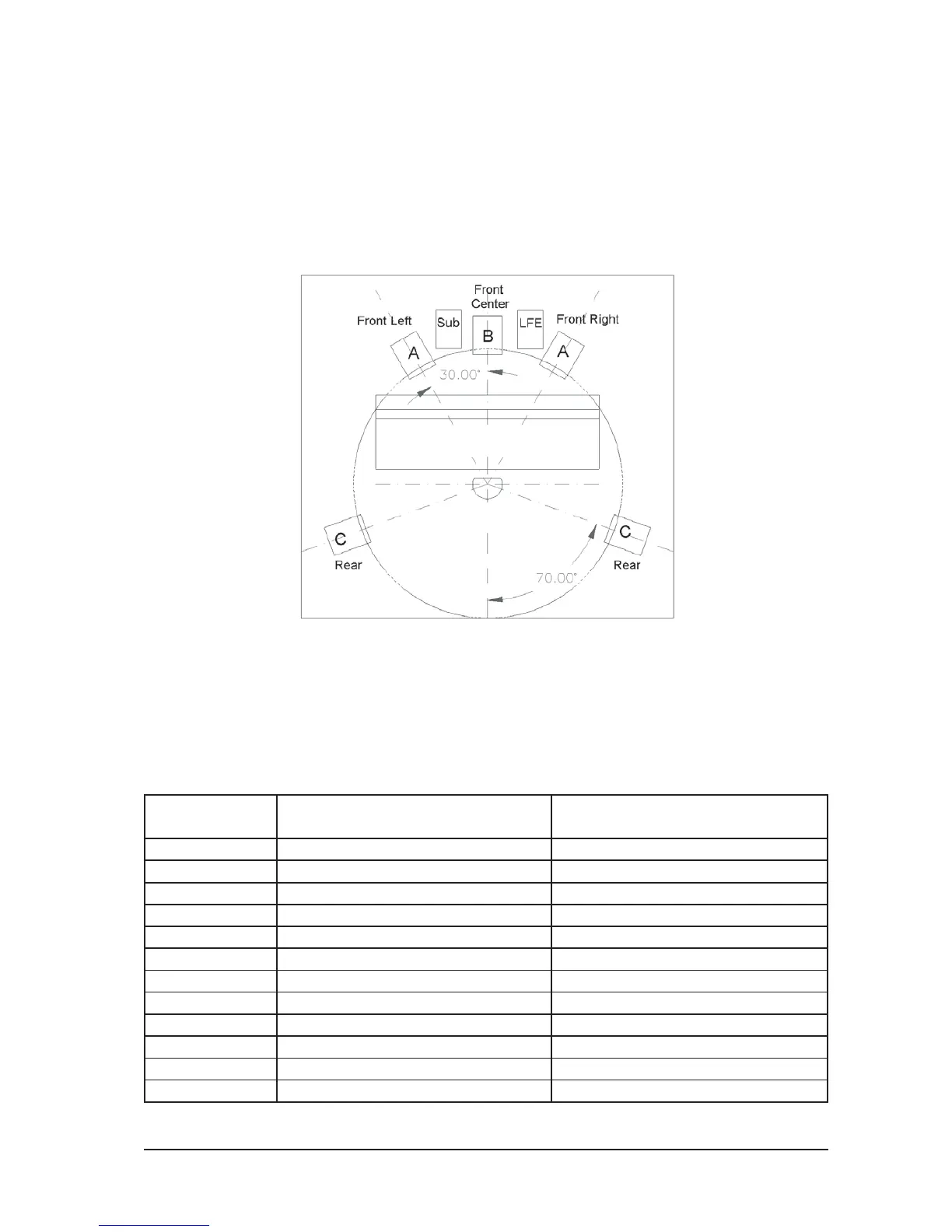

Figure 6: Listening room setup in discrete surround
Position and loudspeaker type
