TRANSMITTER SPECIFICATIONS
• Transmitting Frequency: 33kHz
• External Voltage Indicators: 12V, 48V, 120V, 240V, 480V
• Voltage Type Indicators: DC Positive, DC Negative, AC
• AC Frequency: 45Hz to 65Hz
• Energized/ELV Indicator: >25V AC/DC (solid), >480V AC/DC (blinking)
• Dimensions: 7.05" × 3.90" × 1.84" (179.2 × 99.1 × 46.7 mm)
• Weight (including batteries): 16.5 oz (470 g)
• Battery Type: 6 × 1.5V AA Alkaline
• Battery Life: Approximately 24 hours
• Fuse Type: 600V, 0.5A, 6 mm × 32 mm
• Auto-Power Off: After 4 hours of inactivity
Specifications subject to change.

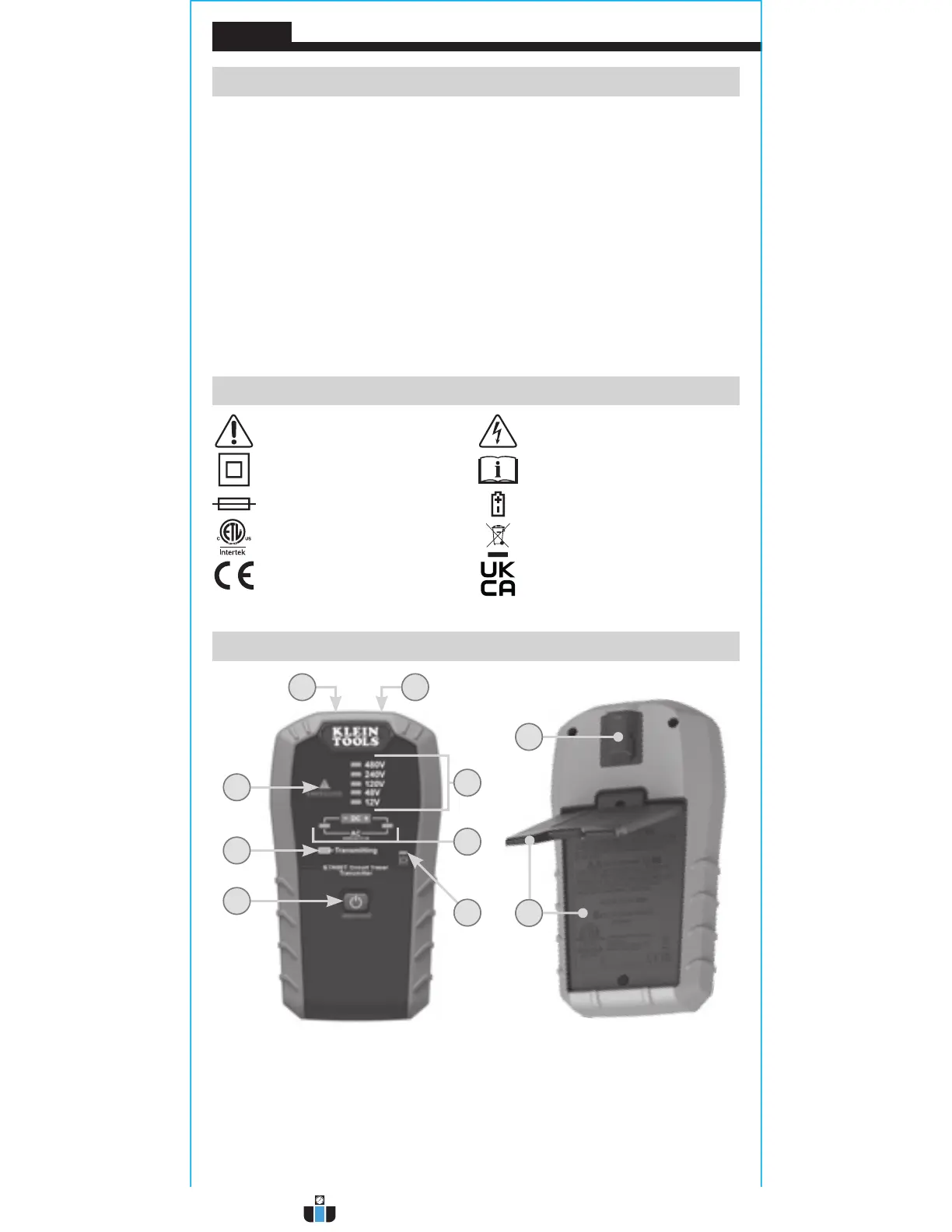

TRANSMITTER FEATURE DETAILS
1.
Power On/Off Button
7.
Battery Cover with kickstand
2.
External Voltage Indicators
8.
"COM" Jack
3.
AC/DC / Polarity Indicators
9.
"+ 600V" Jack
4.
Transmitting Indicator
10.
Attachment Point for Optional
Magnet Holder
5.
Energized/ELV Indicator
6.
Low Battery Indicator
7
1
4
6
5
2
3
FRONT BACK
8 9
NOTE: No user-serviceable parts inside.
SYMBOLS ON TRANSMITTER
Warning Risk of electric shock
Double insulated Read Instructions
Fuse Battery orientation
Independently tested by Intertek
and meets applicable standards
WEEE – Electronics disposal
Conformité Européenne:
Conforms with European
Economic Area directives
UKCA - United Kingdom
Conformity Assessment
