RECEIVER SPECIFICATIONS
• Detecting Frequency: 33kHz
• Sensitivity: 8 levels
• Signal Strength: 0-99 on LCD, 0-10 bar display
• Signal Indicator: Audible (tone) and visual (LED)
• Tracing depth: 0' – 1.64' (0 – 0.5 m), depending on medium/application
• NCV: 80 to 1000V AC, 50/60Hz
• Flashlight: 6 Lumens
• Dimensions: 8.72" × 2.07" × 1.51" (221.5 × 52.8 × 38.5 mm)
• Weight (including batteries): 11 oz. (312g)
• Battery Type: 4 × 1.5V AA Alkaline
• Battery Life: Approximately 28 hours
• Auto-Power Off: After 10 minutes of inactivity
Specifications subject to change.
SYMBOLS ON RECEIVER
Warning Risk of electric shock
Double insulated Read Instructions
Conformité Européenne:
Conforms with European
Economic Area directives
UKCA - United Kingdom
Conformity Assessment
Independently tested by Intertek
and meets applicable standards
WEEE – Electronics disposal Battery orientation

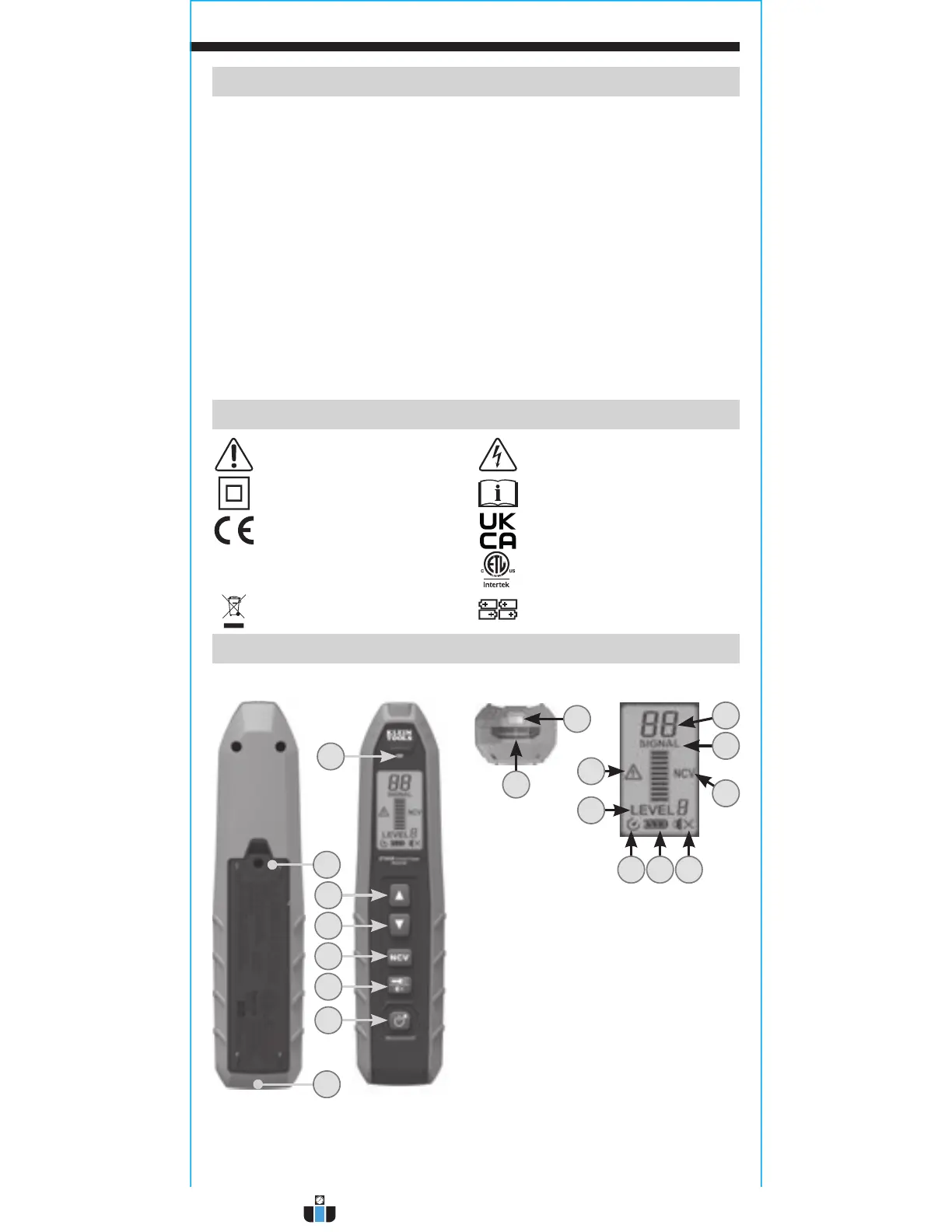

RECEIVER FEATURE DETAILS
6.
Battery Cover
7.
Crosshair Grooves
8.
NCV Signal / Tracing Signal Indicator
9.
Flashlight
10.
Lanyard Hole
11.
Numerical Signal Strength (0-99)
12.
Bar graph (Signal Strength)
13.
Sensitivity Level (1-8)
14.
Non-Contact Voltage Indicator
15.
Hazardous Voltage Indicator
16.
Auto-Power Off (APO) Indicator
17.
Battery Status Indicator
18.
Mute Indicator
1.
Power On/Off / Backlight Button
2.
Flashlight/Mute Button
3.
NCV Button
4.
Increase Sensitivity Button
5.
Decrease Sensitivity Button
1
2
3
5
4
8
FRONTBACK
6
10
LCD
15
13
1716 18
14
11
12
TOP
7
9
NOTE: No user-serviceable
parts inside.
