Installation (continued)
Red (+12v Input) Connect to a +12v power source that remains
‘on’ even if the ignition is off. Common connection locations would
be the fuse box, the ignition switch harness in the steering column
or the battery.
Pink (+Output to horn) Connect to one wire from your air
solenoid valve. Connect the other wire from the solenoid to
ground. See more details below.
White (Accessory) Connect to a SWITCHED +12v power source -
one that turns on/off with your ignition.
Ÿ Black (Chassis Ground) Secure this to metal that is clean and
free of grease, paint, etc.
Ÿ
Ÿ
Ÿ
Proper Air Solenoid Wiring
Air solenoids can be connected two different ways - therefore the
can be connected two different ways.

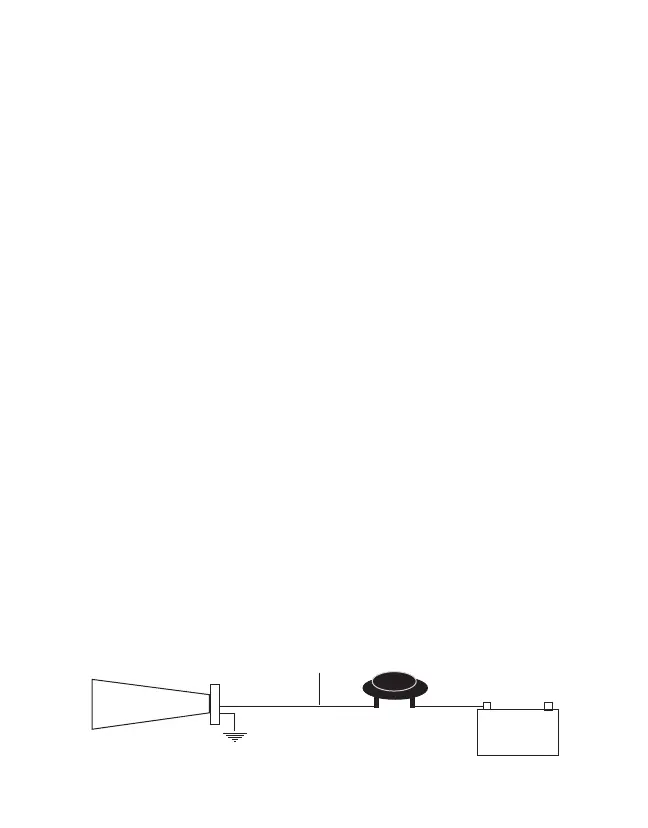

Constant Ground with Power Switching
In this configuration, one wire from the solenoid is connected to ground
and the other wire is connected through a pushbutton switch that
supplies +12v when pressed. If you are starting a new installation, use
this configuration. Connect the Pink +12v output wire from the sniper to
the wire that runs between the solenoid valve and the output side of the
switch.
TM
Sniper
+
-
Battery
Pink Wire from Sniper
To Next Page
