Klipsch R-15M User Manual

BEFORE YOU START
Some Klipsch
®
speakers have feet and
other accessories that may need to be

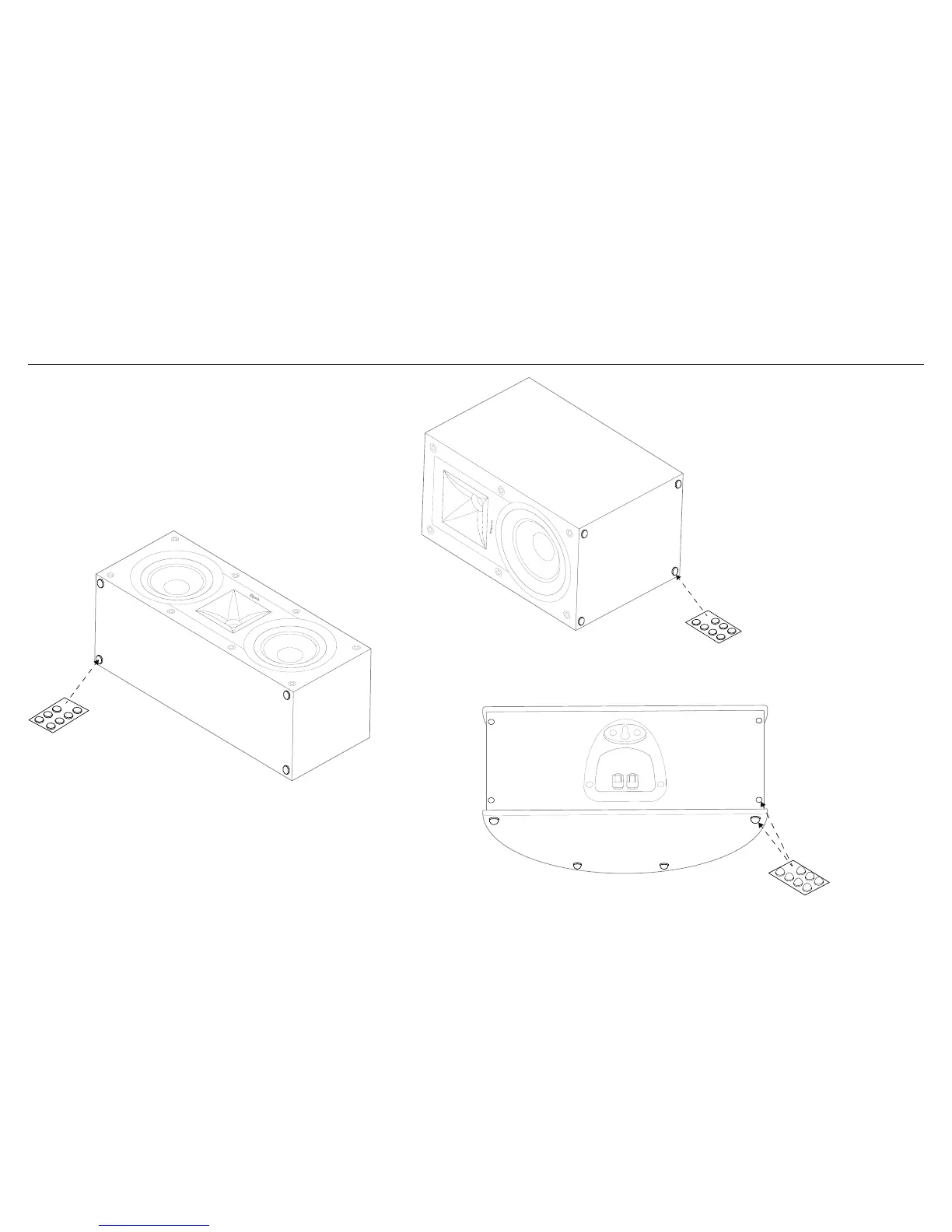

installed prior to use. Please refer to
Diagrams 1, 2 and 3 for installation.
DIAGRAM 1
MONITOR SPEAKERS
DIAGRAM 2
CENTER CHANNEL
DIAGRAM 3
SURROUND SPEAKERS
Rubber Feet
Rubber Feet
Domed Feet
Place on bottom
or back (if wall mounted)

Klipsch R-15M Specifications

General

Bass reflex	Yes
Product color	Black
Housing material	MDF
Recommended usage	Speaker set unit
Suitable for outdoor use	-
Woofer diameter	133 mm
Tweeter diameter	25.4 mm
Speaker placement	Tabletop/bookshelf
Audio output channels	- channels
Woofer diameter (imperial)	5.25 \
Tweeter diameter (imperial)	1 \
Impedance	8 Ω
Sensitivity	94 dB
Frequency range	62 - 24000 Hz
RMS rated power	85 W
Crossover frequency	1800 Hz
Peak Music Power Output (PMPO)	340 W
Connectivity technology	Wired
Package weight	10704 g

Weight and Dimensions

Depth	206 mm
Width	178 mm
Height	318 mm
Weight	4670 g
