Service Manual – Consumer
Troubleshooting Guides
Woofer Removal for R-25C
Tools needed:
Small flat blade screwdriver
3mm hex (Allen) key

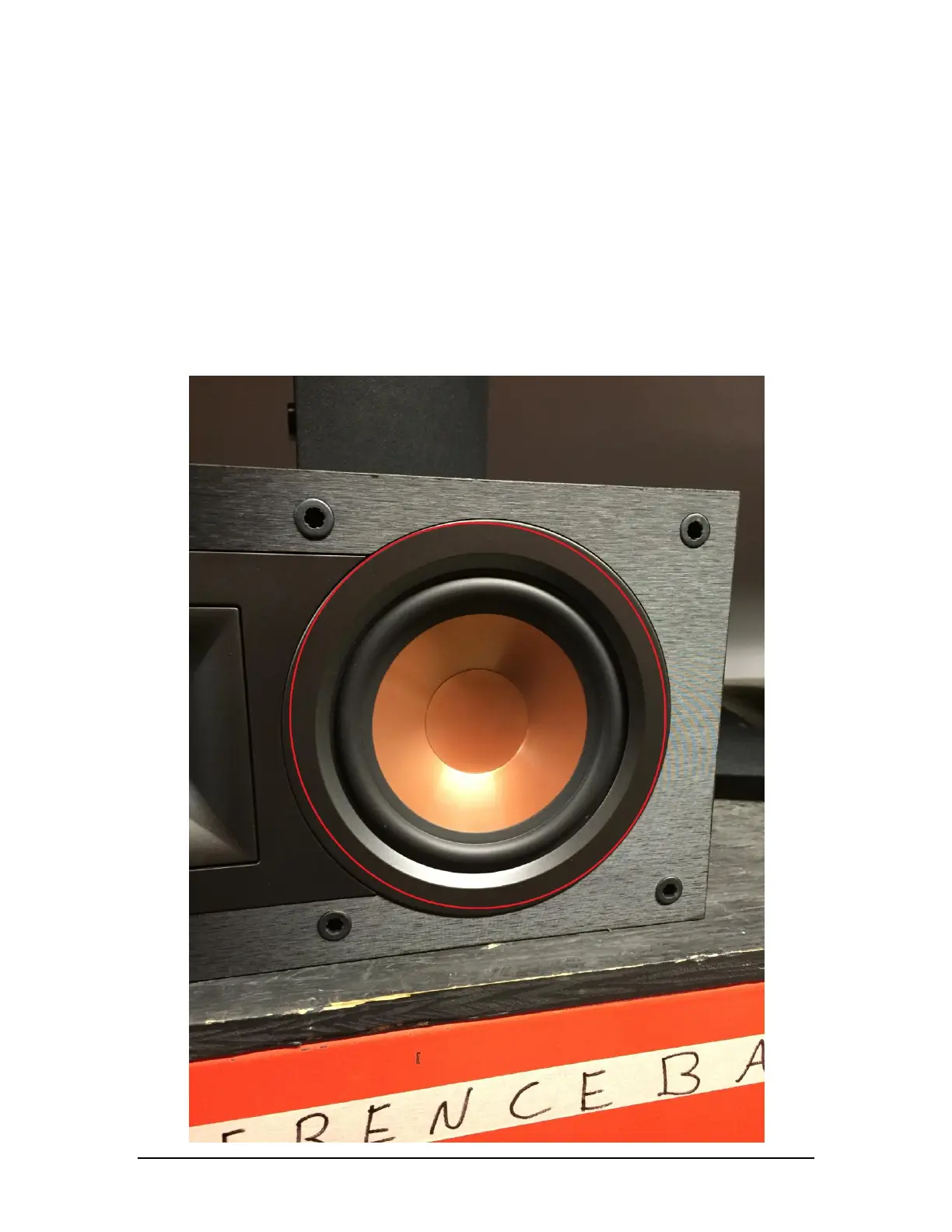

First, with a small flat blade screwdriver, gently pry the up the trim ring around the woofer,
highlighted in red
