Klipsch Reference Premiere RP-450C - Page 20

Service Manual – Consumer
20

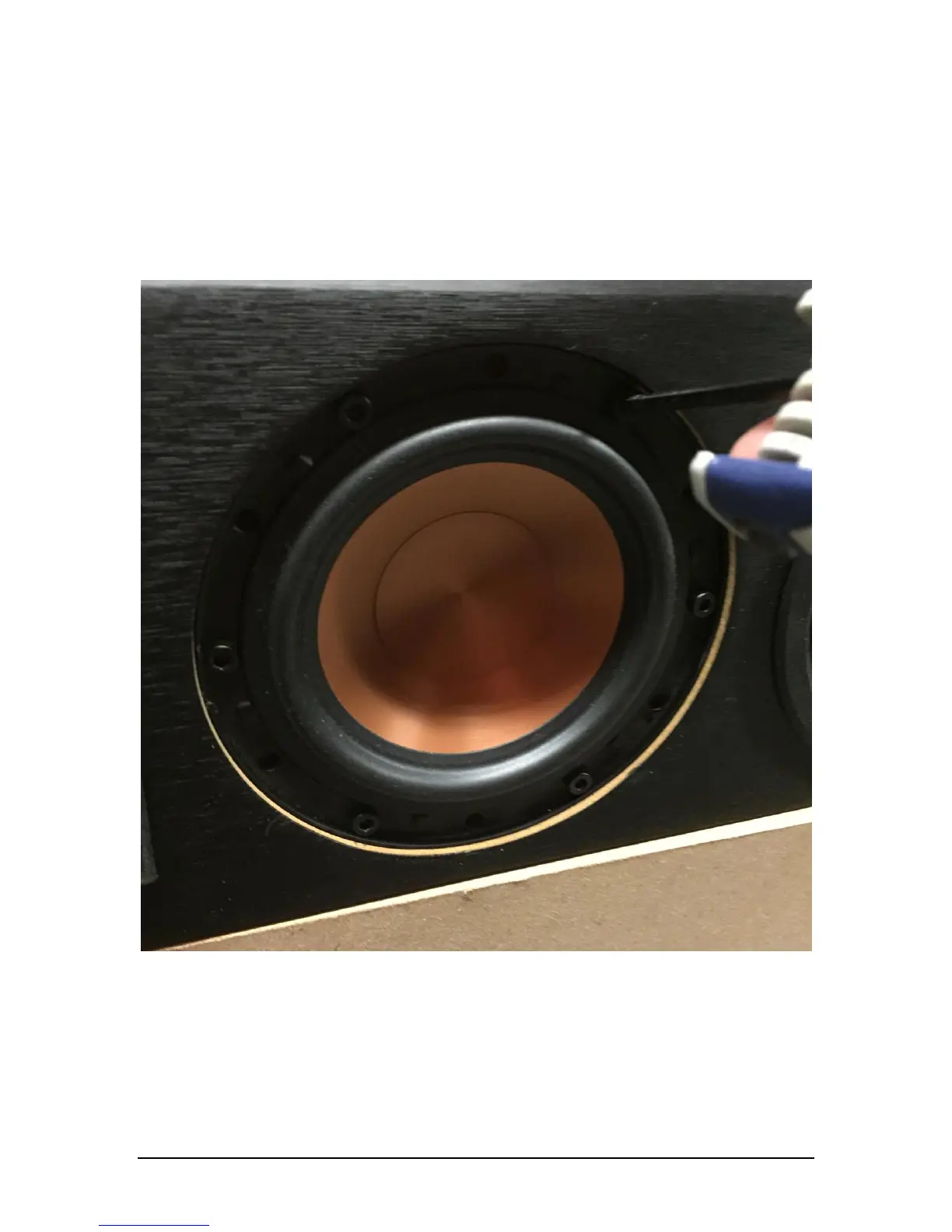

Once the trim ring is removed the speaker should look as shown below.
Next, begin removing the screws from the perimeter of the woofer.
There will be six (6) total screws to remove, each using a 3mm hex key head
