Klipsch Reference Premiere RP-504C - Dolby Atmos Connections; Elevation Speaker Connection; Dolby Atmos Elevation Speaker Wall Mounting

HEIGHT
MAIN
HEIGHT
MAIN
RP-8060FA
HEIGHT
MAIN
RP-500SAFLOORSTANDING SPEAKER
REFERENCE PREMIERE WITH DOLBY ATMOS
®
TECHNOLOGY
OR

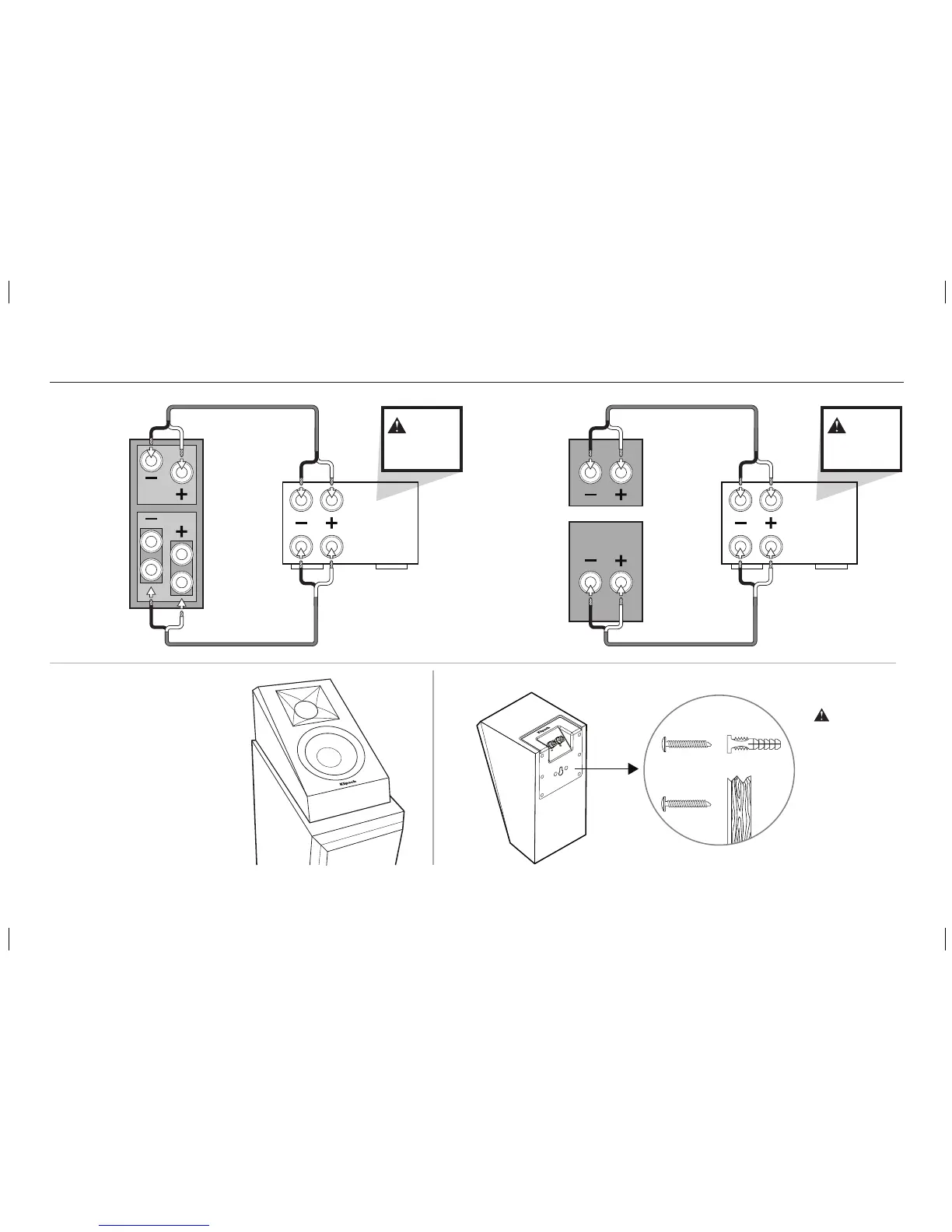

CONNECTIONS
WALL MOUNTINGELEVATION SPEAKER
#10
2.5" - 3" panhead
wood screws
Mount in wall stud
or use anchors -
leave 1/4" exposed
CAUTION!
Do not use keyhole
for ceiling mounting!
The RP-500SA can be added to
any passive loudspeaker setup.
RECEIVER RECEIVER
OR
RECOMMENDED
MIN. CROSSOVER:
150Hz
RECOMMENDED
MIN. CROSSOVER:
80Hz
