Surface Placement

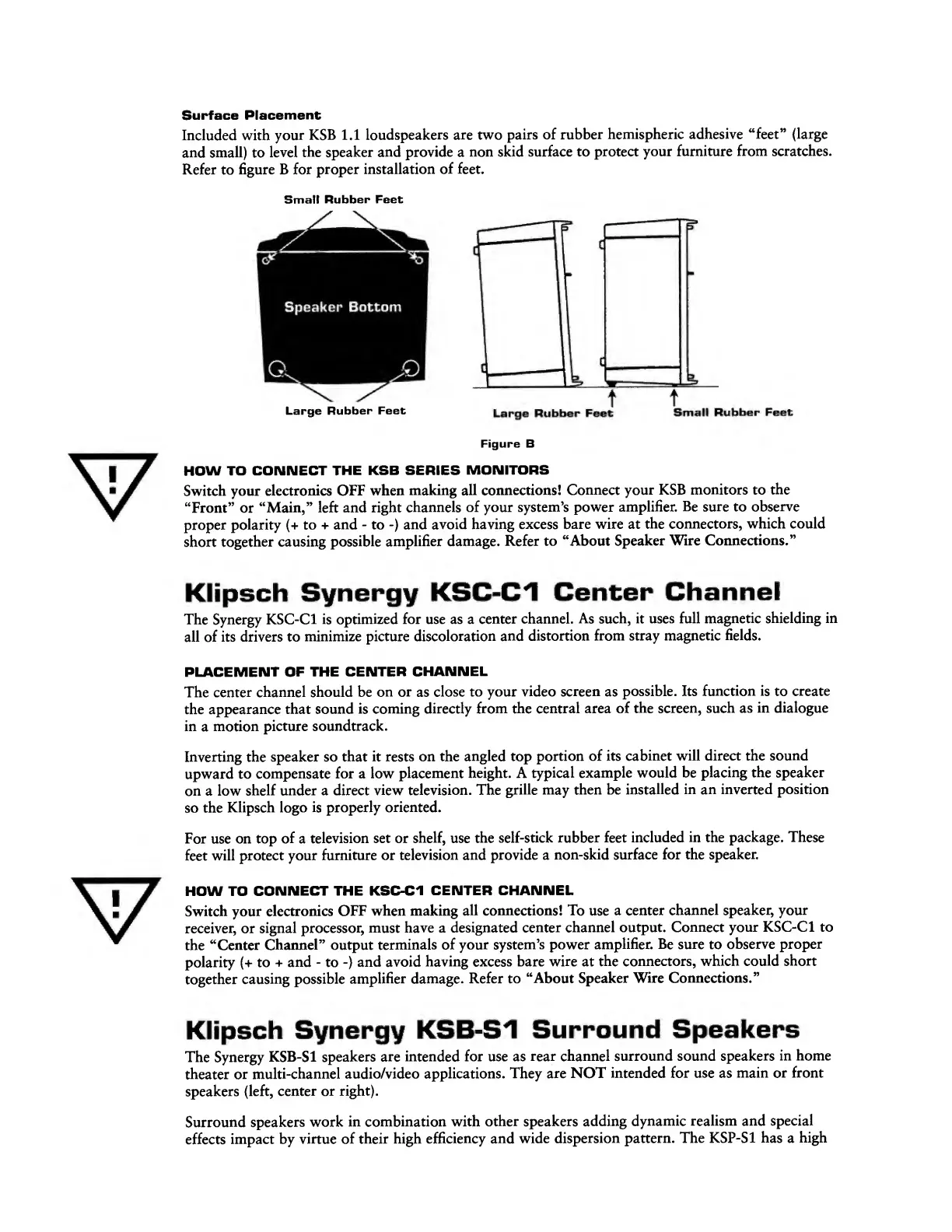

Included with your KSB 1.1 loudspeakers are two pairs of rubber hemispheric adhesive “feet” (large
and small) to level the speaker and provide a non skid surface to protect your furniture from scratches.
Refer to figure B for proper installation of feet.
Figure B
HOW TO CONNECT THE KSB SERIES MONITORS
Switch your electronics OFF when making all connections! Connect your KSB monitors to the
“Front” or “Main,” left and right channels of your system’s power amplifier. Be sure to observe
proper polarity (+ to + and - to -) and avoid having excess bare wire at the connectors, which could
short together causing possible amplifier damage. Refer to “About Speaker Wire Connections.”
Klipsch Synergy KSC-C1 Center Channel
The Synergy KSC-C1 is optimized for use as a center channel. As such, it uses full magnetic shielding in
all of its drivers to minimize picture discoloration and distortion from stray magnetic fields.
PLACEMENT OF THE CENTER CHANNEL
The center channel should be on or as close to your video screen as possible. Its function is to create
the appearance that sound is coming directly from the central area of the screen, such as in dialogue
in a motion picture soundtrack.
Inverting the speaker so that it rests on the angled top portion of its cabinet will direct the sound
upward to compensate for a low placement height. A typical example would be placing the speaker
on a low shelf under a direct view television. The grille may then be installed in an inverted position
so the Klipsch logo is properly oriented.
For use on top of a television set or shelf, use the self-stick rubber feet included in the package. These
feet will protect your furniture or television and provide a non-skid surface for the speaker.
HOW TO CONNECT THE KSC-C1 CENTER CHANNEL
Switch your electronics OFF when making all connections! To use a center channel speaker, your
receiver, or signal processor, must have a designated center channel output. Connect your KSC-C1 to
the “Center Channel” output terminals of your system’s power amplifier. Be sure to observe proper
polarity (+ to + and - to -) and avoid having excess bare wire at the connectors, which could short
together causing possible amplifier damage. Refer to “About Speaker Wire Connections.”
Klipsch Synergy KSB-S1 Surround Speakers
The Synergy KSB-S1 speakers are intended for use as rear channel surround sound speakers in home
theater or multi-channel audio/video applications. They are NOT intended for use as main or front
speakers (left, center or right).
Surround speakers work in combination with other speakers adding dynamic realism and special
effects impact by virtue of their high efficiency and wide dispersion pattern. The KSP-S1 has a high
