Klipsch THE FIVES - CONNECTIONS - TURNTABLE; PHONO; GND

11

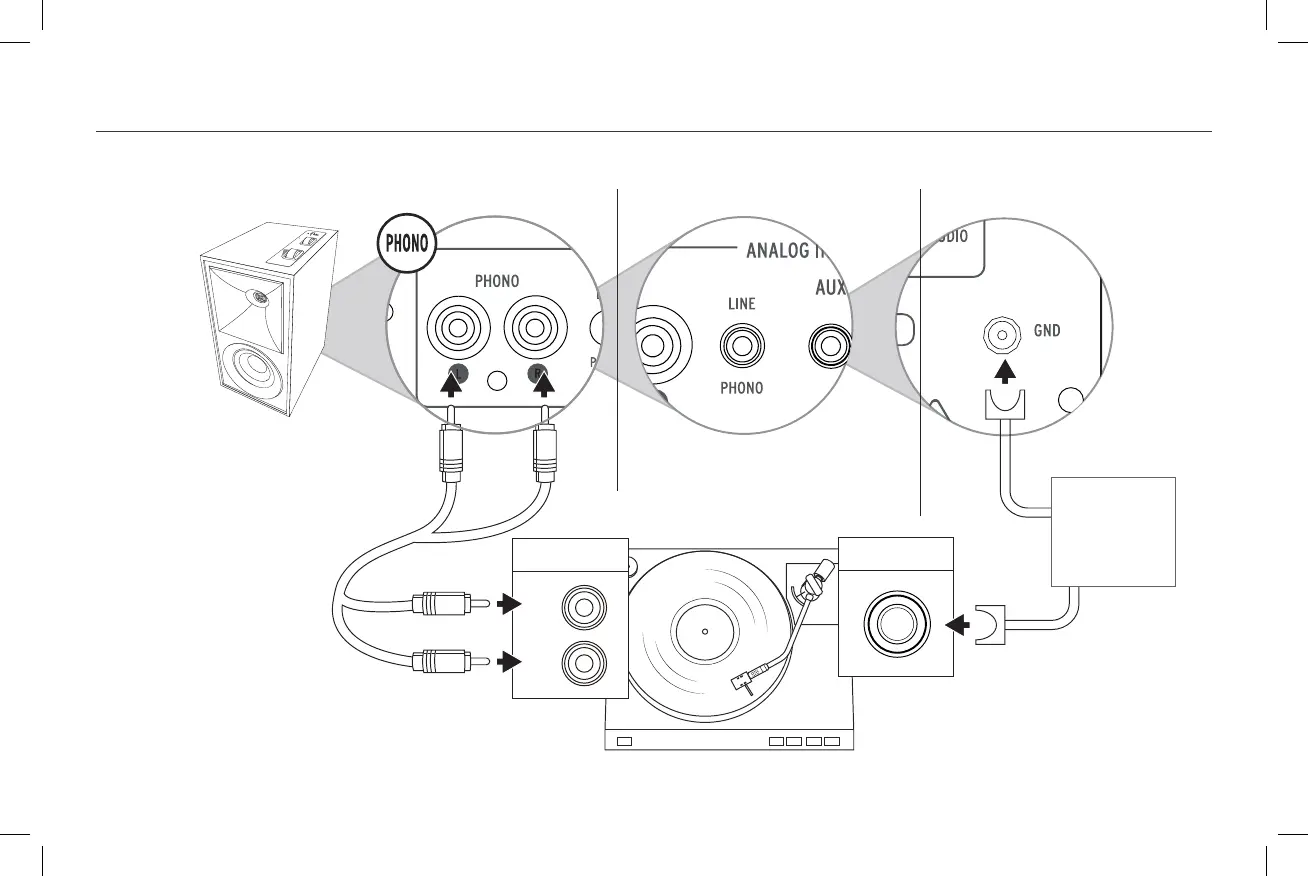

CONNECTIONS - TURNTABLE
CONNEXIONS – PLATINES • CONEXIONES DEL TOCADISCOS • ANSCHLÜSSE – PLATTENSPIELER • CONNESSIONI – GIRADISCHI • CONEXÕES - TOCA-DISCOS • 连接
PRIMARY SPEAKER
5788A-THEFIVES
STI-THEFIVES
Model: the Fives
Powered Monitor Speakers
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) this device may not cause harmful
interference, and
(2) this device must accept any
interference received. including
interference that may cause undesired
operation.
PRIMARY SPEAKER
L R
5788A-THEFIVES
STI-THEFIVES
Model: the Fives
Powered Monitor Speakers
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) this device may not cause harmful
interference, and
(2) this device must accept any
interference received. including
interference that may cause undesired
operation.
Audio Out
R
L
GND
PRIMARY SPEAKER
L R
5788A-THEFIVES
STI-THEFIVES
Model: the Fives
Powered Monitor Speakers
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) this device may not cause harmful
interference, and
(2) this device must accept any interfer-
ence received. including interference that
may cause undesired operation.
PRIMARY SPEAKER
SECONDARY SPEAKER OUT
5788A-THEFIVES
STI-THEFIVES
Model: the Fives
Powered Monitor Speakers
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) this device may not cause harmful
interference, and
(2) this device must accept any
interference received. including
interference that may cause undesired
operation.
VOL
SOURCE
-
- PHON O
- ANAL OG
- OPTI CAL
- USB
- TV
OPTIONAL
OPTIONNEL
OPCIONAL
OPTIONAL
FACOLTATIVO
OPCIONAL
可选项
