klover ALTEA 110 - Connections Data Sheet

WOOD BURNING BOILER COOKER ALTEA 110 SICURO TOP
9
EN - Rev. 1.2
Connections data sheet
Description of connections
M = System Delivery
3/4" F
R = System Return
3/4" M
F = Domestic cold water inlet (on prepared models only) and boiler unit and system load
1/2" M
C = Domestic hot water outlet (on prepared models only)
1/2" M
X = Safety valve drain
1/2" F
S = Boiling discharge
3/4" M
A = Intake pipe
100 mm
Sf = Flue gas outlet
150 mm M

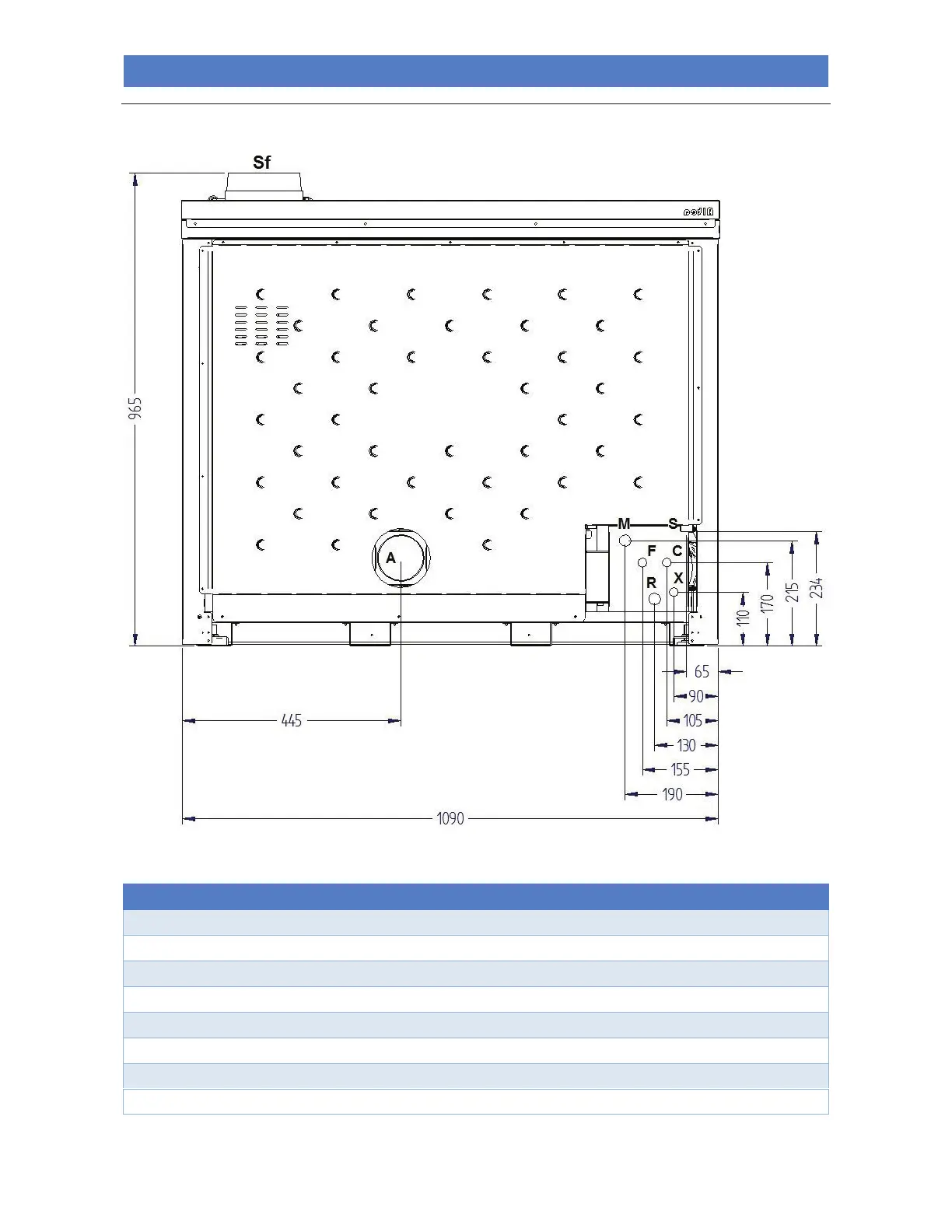

REAR VIEW
