WOOD BURNING BOILER COOKER ALTEA 110 SICURO TOP
5
EN - Rev. 1.2
Draught regulation
handle.
Turn the handle to the
vertical position to open.
Turn the handle to the
horizontal position to close.
Primary manual combustion air
damper.
Move the knob to the right to open “+
”.
Move the knob to the left to close “-”.

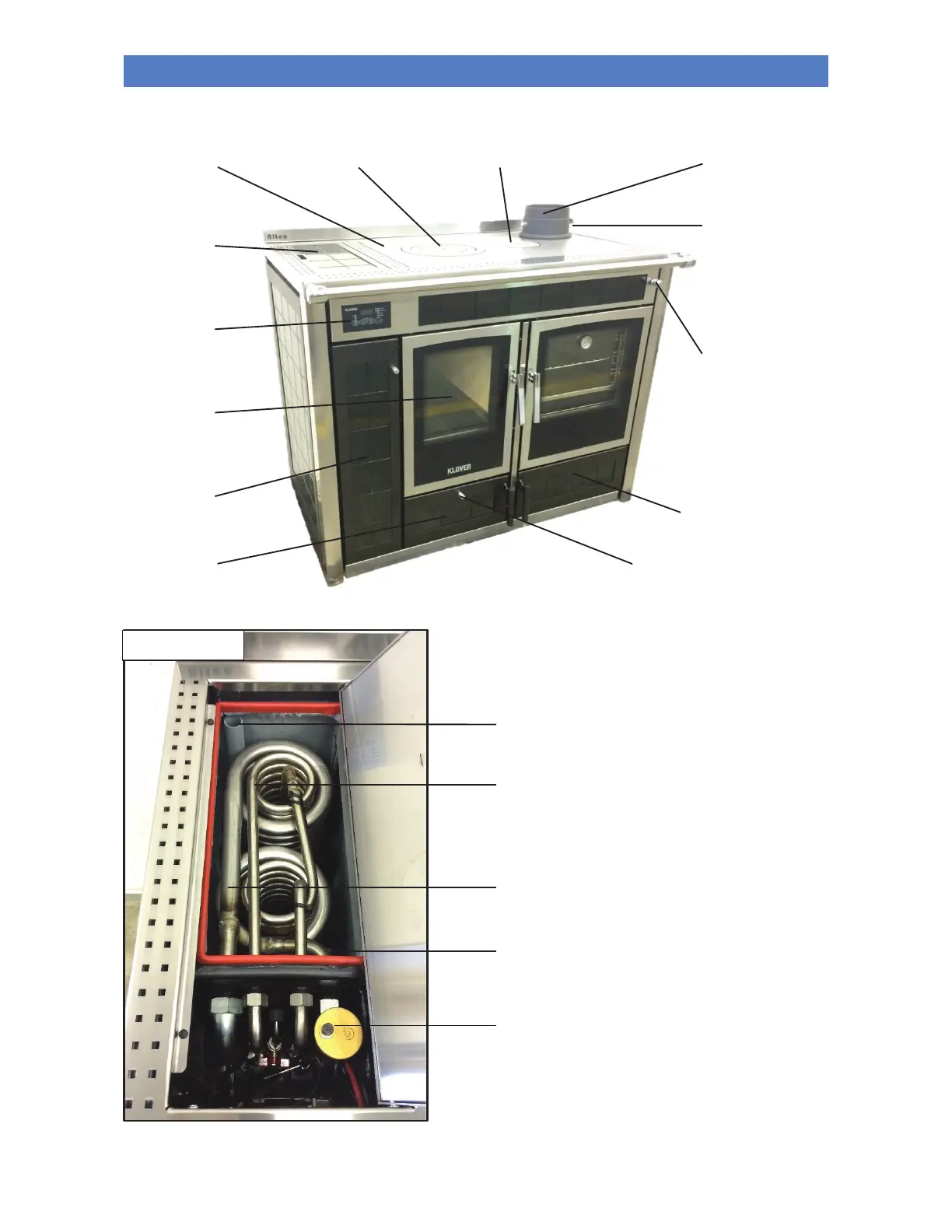

Left side
technical
compartment.
Combustion
chamber.
SICURO TOP
cover.
Electronic
control
unit.
Internal smoke stream
damper knob.
Pull the knob out to open.
Push the knob in to close.
Right side technical
compartment.
Ash collection
drawer
compartment.
SICURO TOP
Primary
hotplate.
Secondary
hotplate.
Primary exchanger
(heating).
Secondary exchanger (domestic)
(on prepared models only).
Automatic air vent valve. (jolli)
Level switch
(water level sensor).
Boiling discharge pipe SICURO TOP.
Upper smoker damper.
Cooking
hotplate.
