klover DIVA MID - Page 5

5

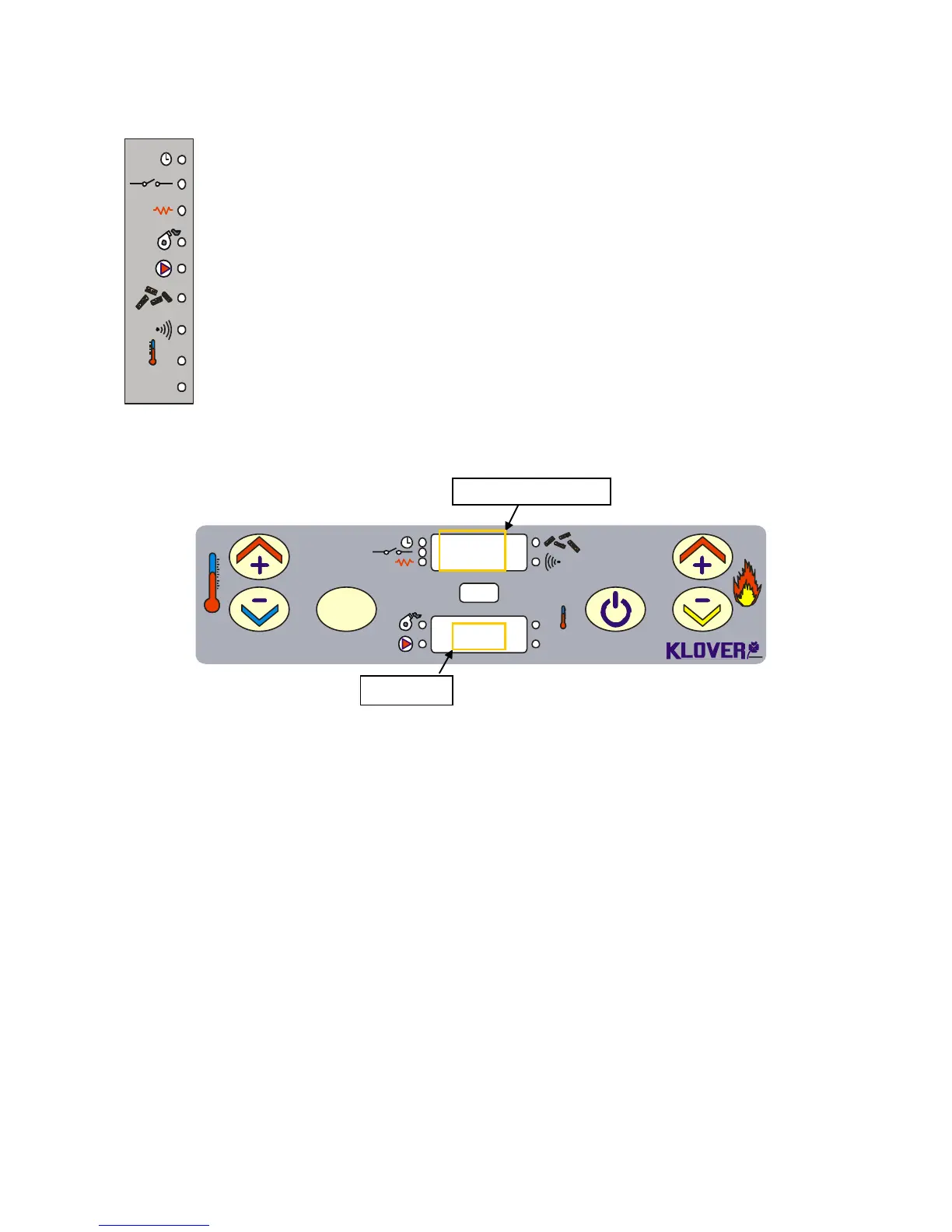

Figure 4 describes the meaning of the state LEDs on the display's console (1st LED SERIES).
°C
OK
SET
Figure 5 shows the display during operative parameters setting or programming.
SET
OK
Set
°C
1
2 3 4 6
5
Lun
Ut 01
 The MENU LEVEL area shows the current parameter/menu level.
 The INPUT area shows the entered programming values.
CHRONO-THERMOSTAT: the LED is on when at least one ignition and switch-off program is
active.
ROOM THERMOSTAT: the LED is on when room thermostat contact is open.
IGNITION RESISTANCE: the LED is on when ignition resistance is active.
FLUE GAS EXTRACTOR: the LED is on when the flue gas intake device is active.
PUMP: the LED is on when system circulation pump is active.
SCREW FEED: the LED is on when the pellet load motor reducer switches on.
REMOTE CONTROL RECEPTION: the LED is on when a button on the supplied remote control is
pressed and signal reaches the board.
TEMPERATURE OK: the LED is on when temperature set on SET H2O is reached.
SET: the LED is on when SET button on display is pressed.
Fig. 4
Fig. 5
INPUT
MENU LEVEL
