klover DIVA Plus - Connections Data Sheet

4

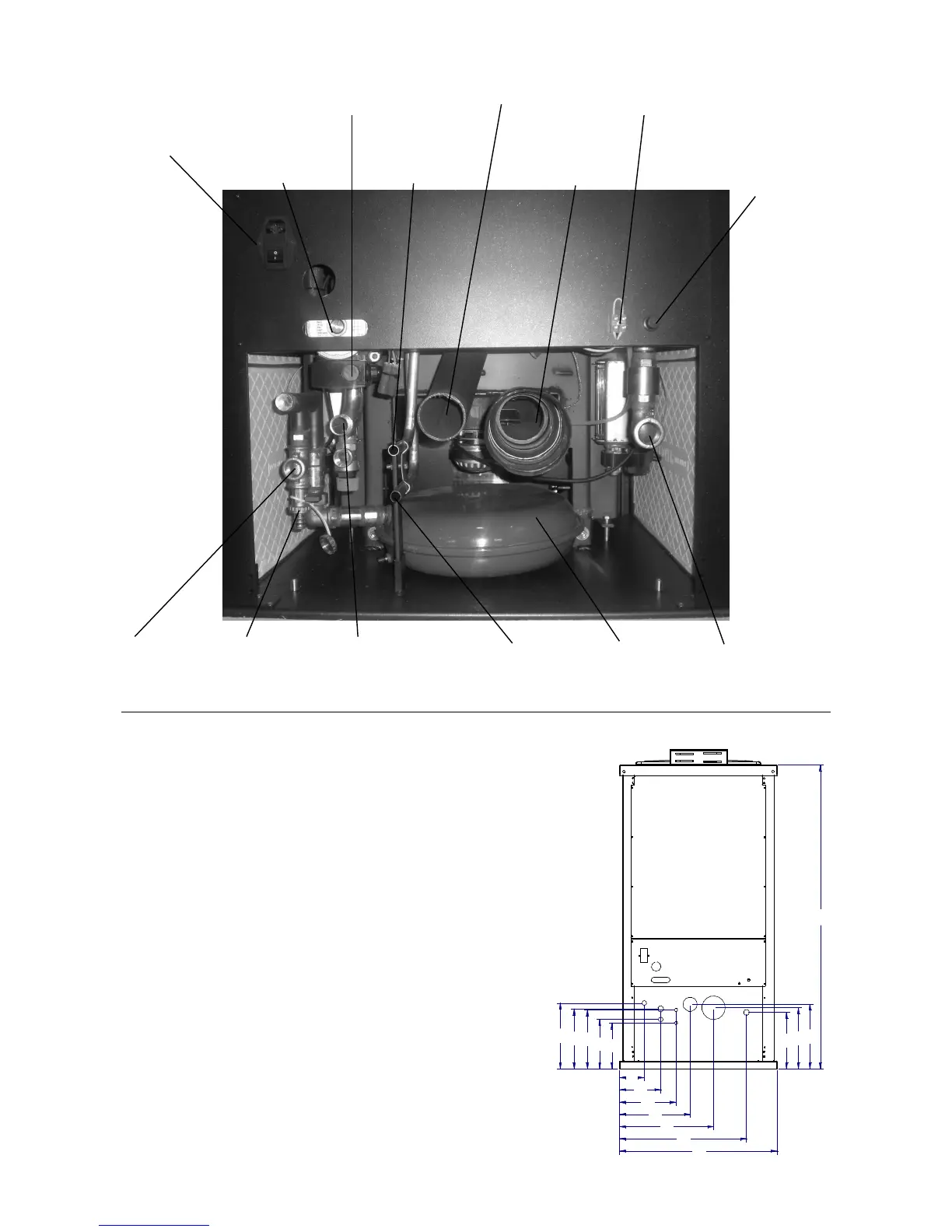

Connections data sheet
VISTA
POSTERIORE
R
S
A
M
F
C
K
X
105
175
240
300
400
670
195
210
250
255
280
250
285
1300
540
240
MASTER SWITCH
POWER SUPPLY CABLE
CONNECTION
AND 2 INCORPORATED FUSES
(4A 250V)
PUMP SPEED
REGULATION
PUMP AIR
VENT
SECURITY
THERMOSTAT MANUAL
RESET
ROOM THERMOSTAT
CONNECTION CLAMP
6 lt EXPANSION
VESSEL
AIR INTAKE PIPE
FLUE
EXHAUST
SYSTEM LOAD
CONNECTION
WITH PLUG
SYSTEM DRAIN
COCK
FLOW CONNECTION WITH
CHECK VALVE
RETURN CONNECTION WITH
SAFETY VALVE CALIBRATED
AT 2.5 BAR
DOMESTIC HOT
WATER INLET
DOMESTIC HOT
WATER OUTLET
REAR
VIEW
M = Ø ¾” F SYSTEM FLOW
R = Ø ¾” M SYSTEM RETURN
C = Ø 14 mm DOMESTIC HOT WATER OUTLET (on prepared models only)
F = Ø 14 mm DOMESTIC COLD WATER INLET (on prepared models only)
S = Ø 100 mm M FLUE OUTLET
A = Ø 43 mm AIR SUCTION DEVICE
K = Ø ½” F SYSTEM LOAD WITH PLUG
X = Ø ½” F DRAIN SAFETY VALVE
