klover ECOMPACT 250 - Connections Data Sheet Ecompact 250 - 290

9
PELLET-BURNING BOILER ECOMPACT 150-190-250-290
EN - Rev 1.1
Connections data sheet ECOMPACT 250 - 290

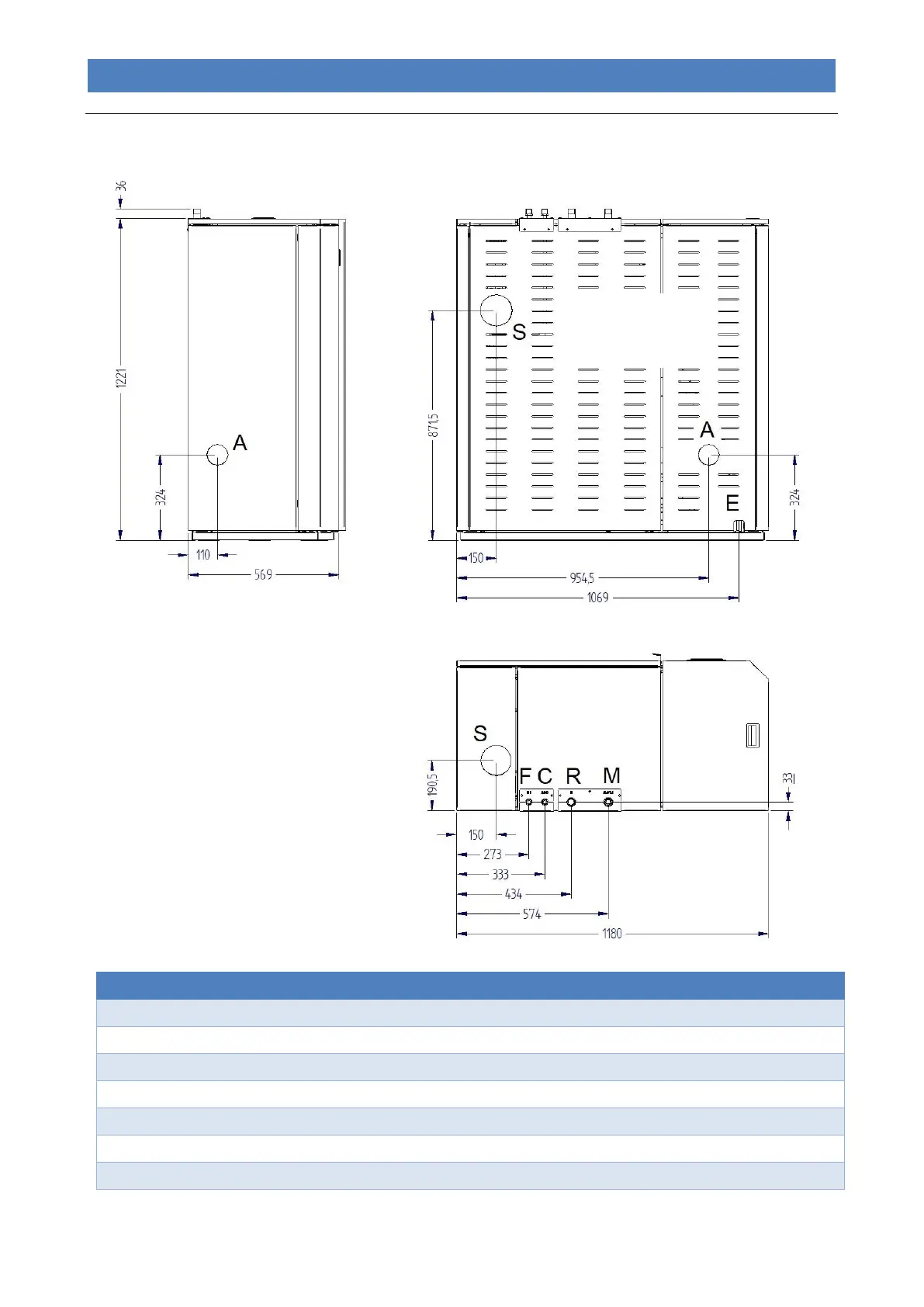

Description of connections
M = System Delivery
3/4" M
R = System Return
3/4" M
F = Domestic cold water inlet (on prepared models only)
1/2" M
C = Domestic hot water outlet (on prepared models only)
1/2" M
S = Upper or rear flue gas outlet
100 mm M
A = Rear or side fitting for connection of optional extraction pipe
50 mm
E = Electrical cable outlet
REAR VIEW
